A (very!) deep dive into network switches- listening and measuring

110

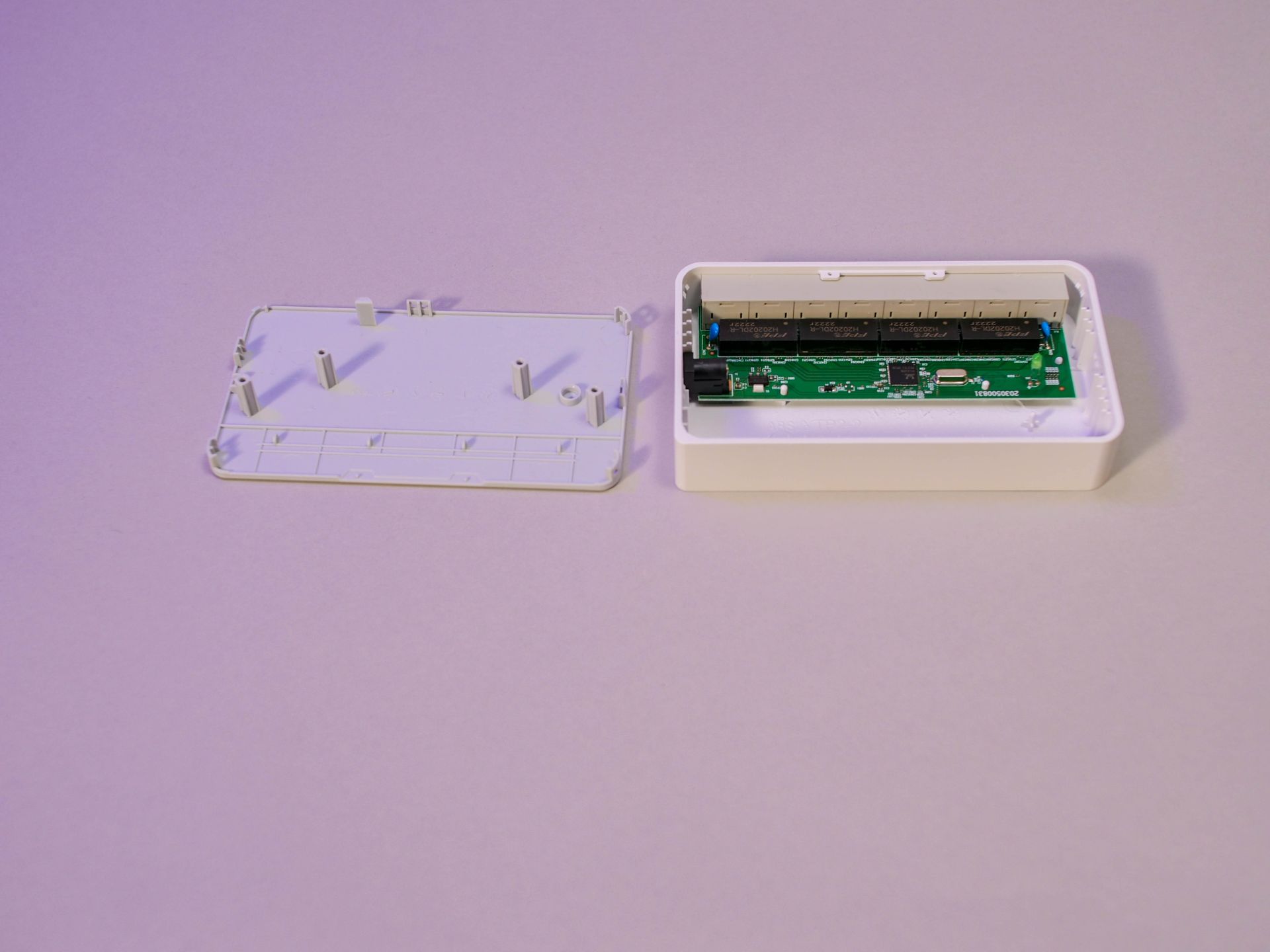

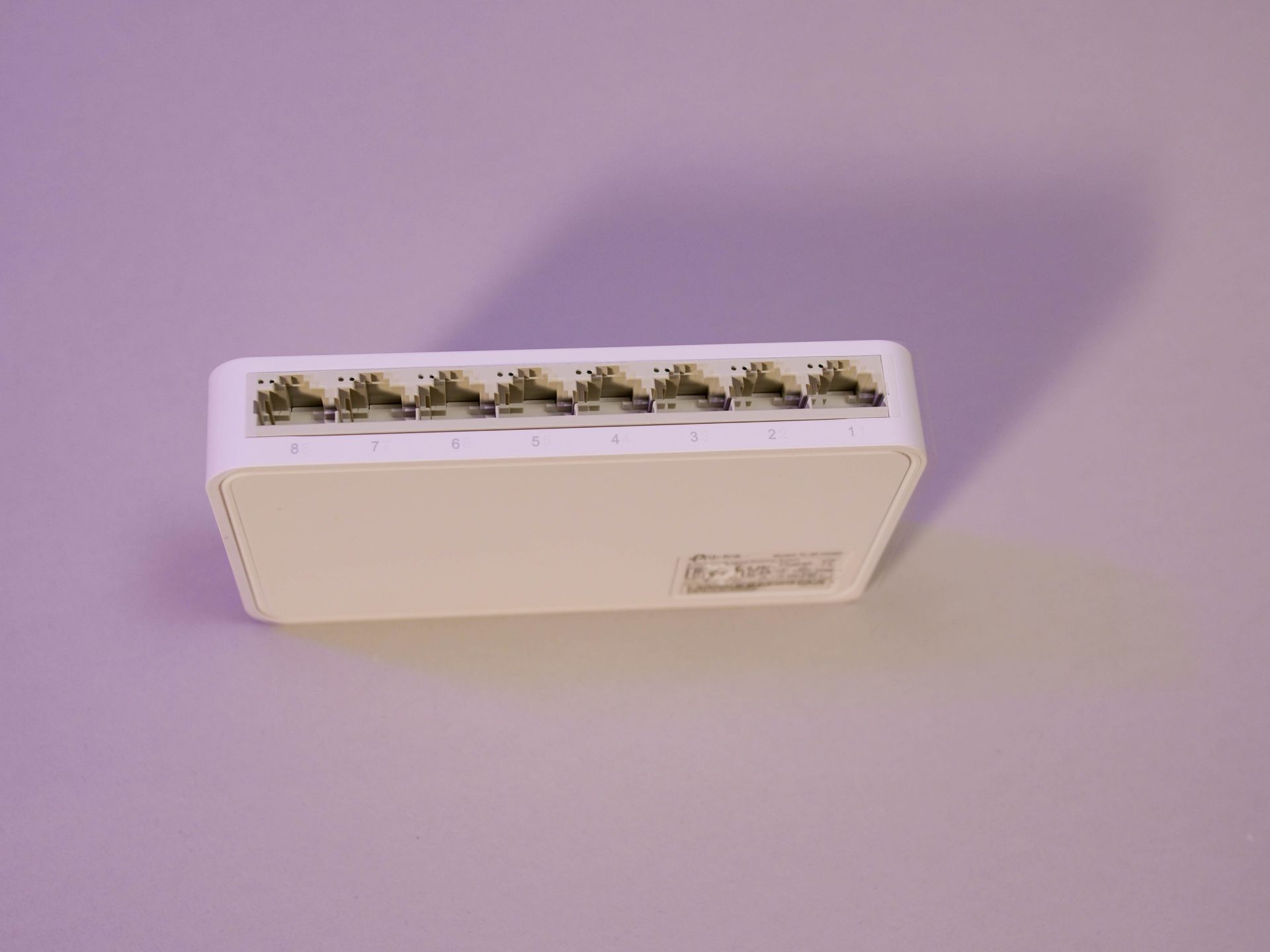

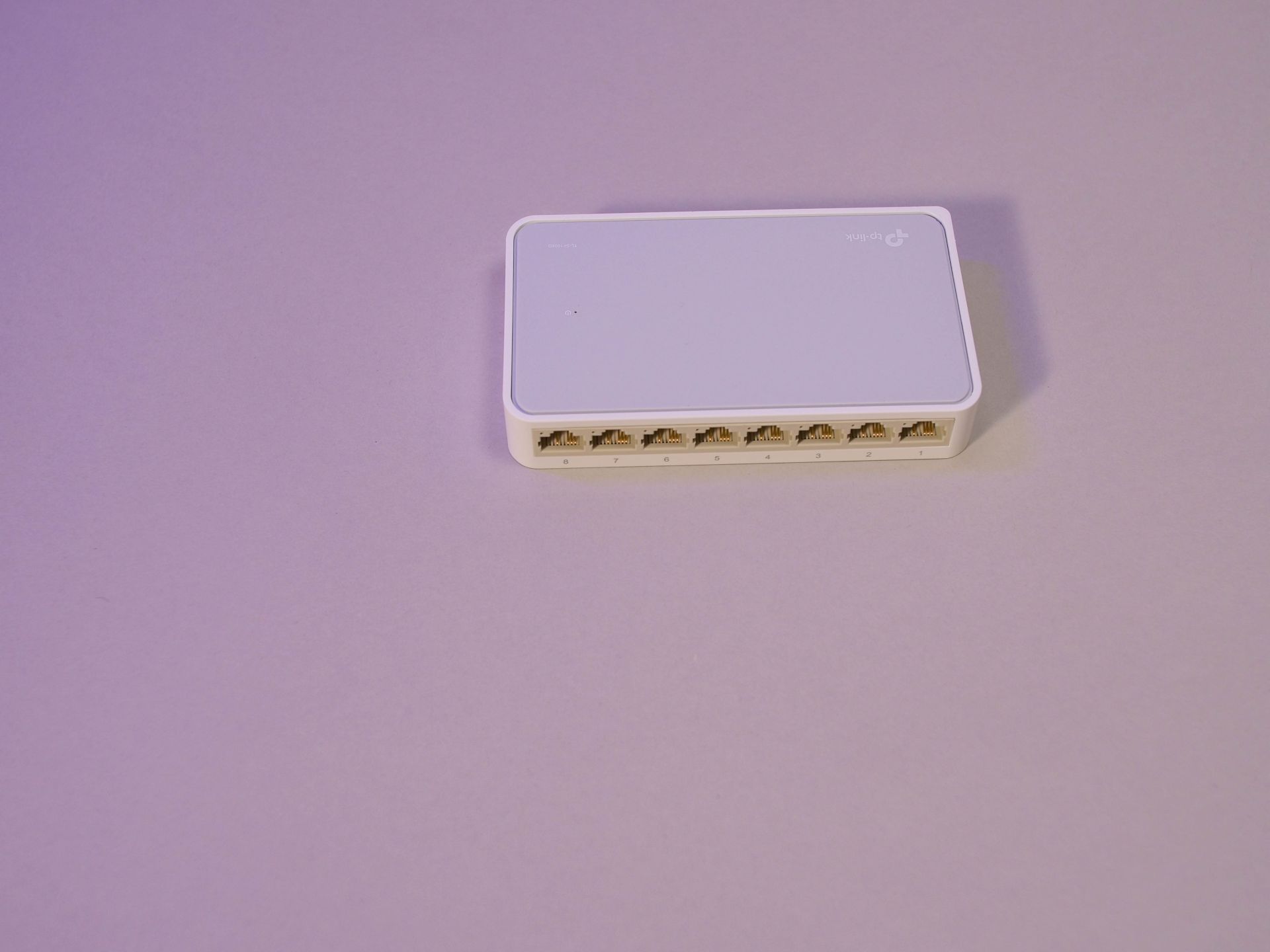

TP-Link SF1008D

TP-Link, like Netgear, Dlink and Cisco, is a big player. TP-Link is a bit of a price fighter, but it also has serious SMB stuff in its lineup. The SF1008D can be found online for the incredible sum of 17.50. Bizarre that these prices are possible…. we estimate that it actually can’t .

Martijn is impressed with the TP-Link. And honestly: in the piano piece, the TP-Link certainly doesn’t play badly. In fact, Martijn thinks it’s perfect… With five exclamation points. Talking Heads goes less well according to your author, but Martijn thinks it’s fine there too…. Which makes one think, because in terms of measurements, the TP-Link certainly doesn’t fare as well. And this is the only switch where there is no match between measuring and listening. Hmmm…

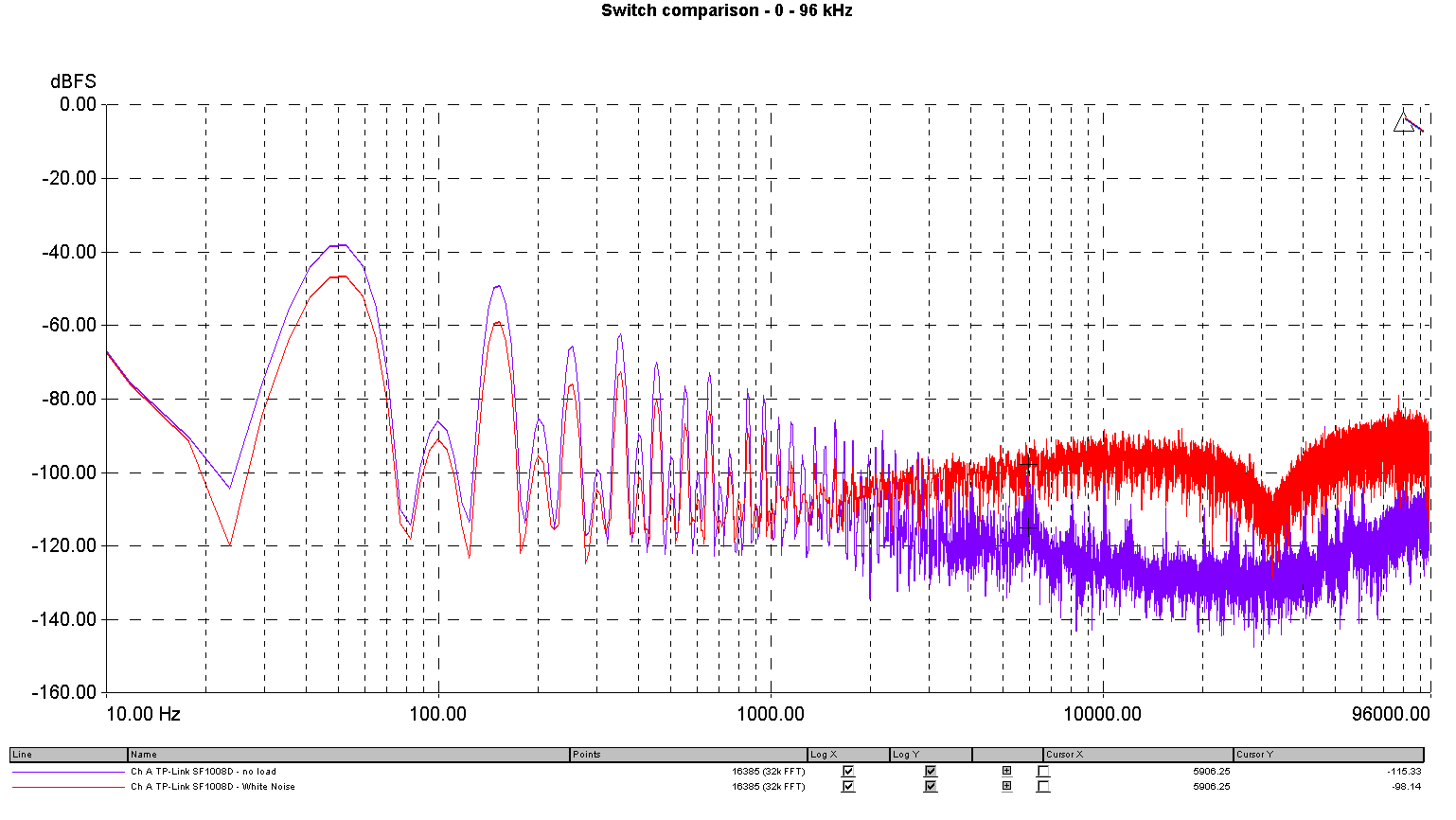

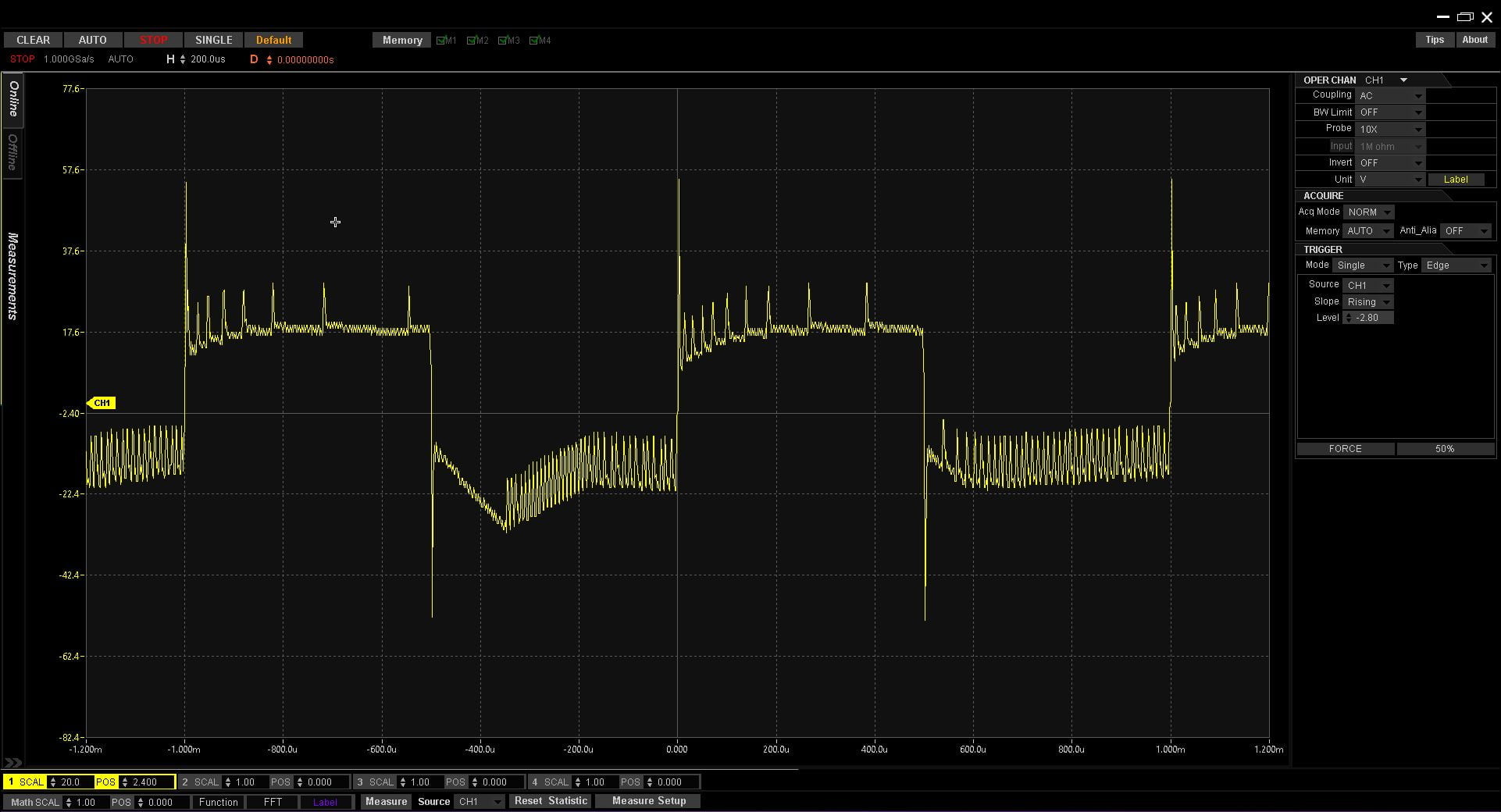

TP-Link SF1008D – Switch Noise

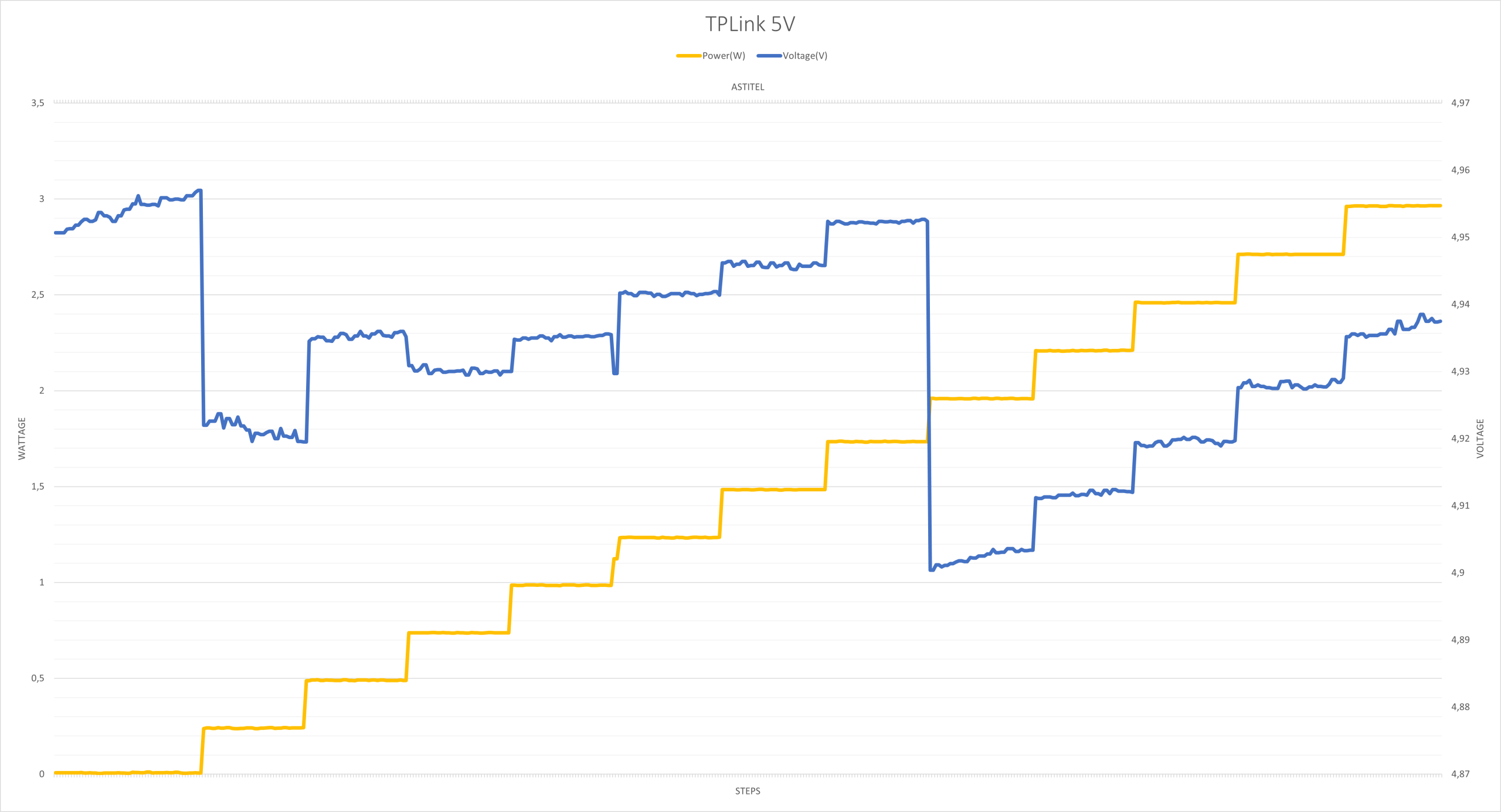

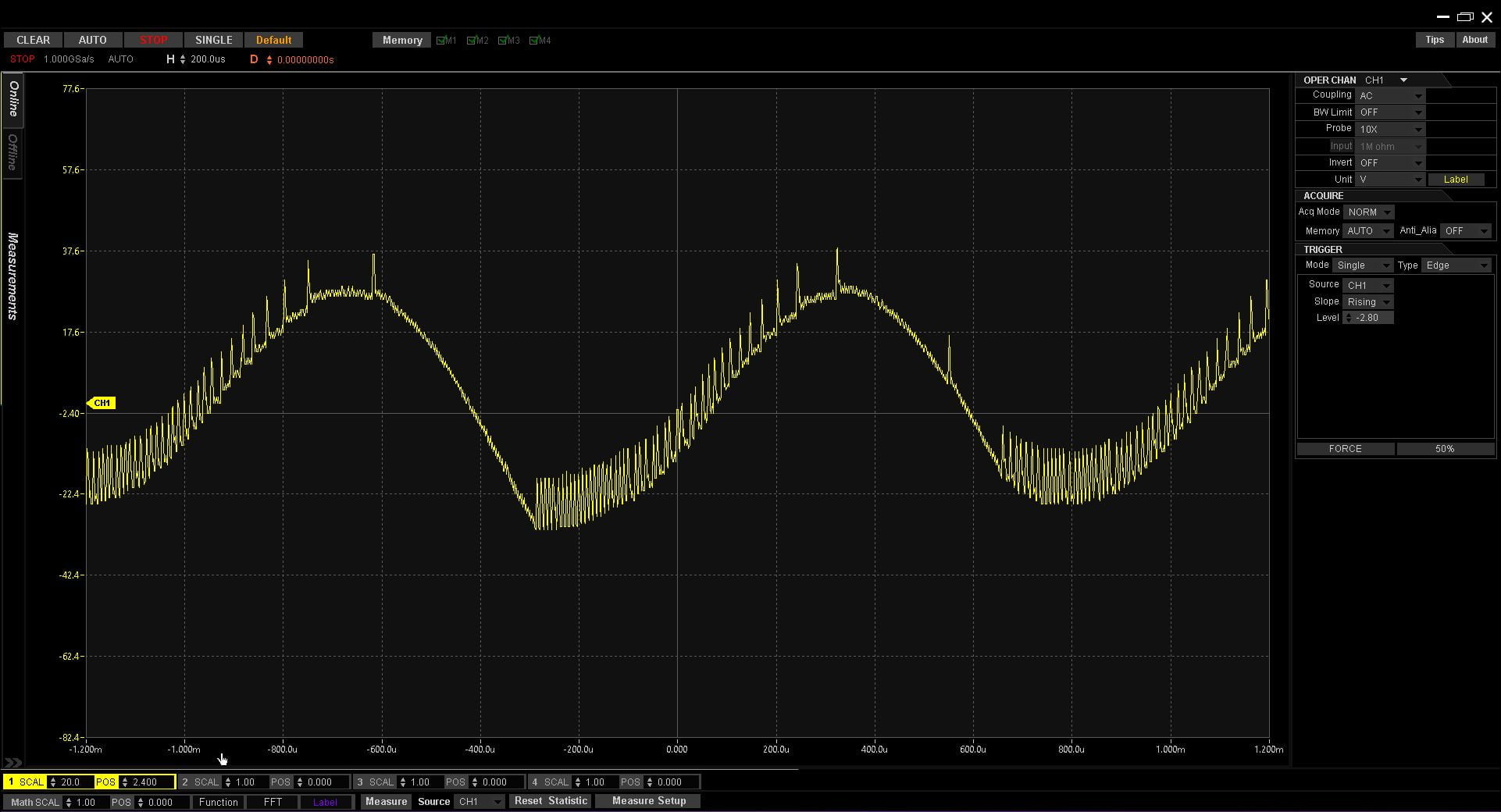

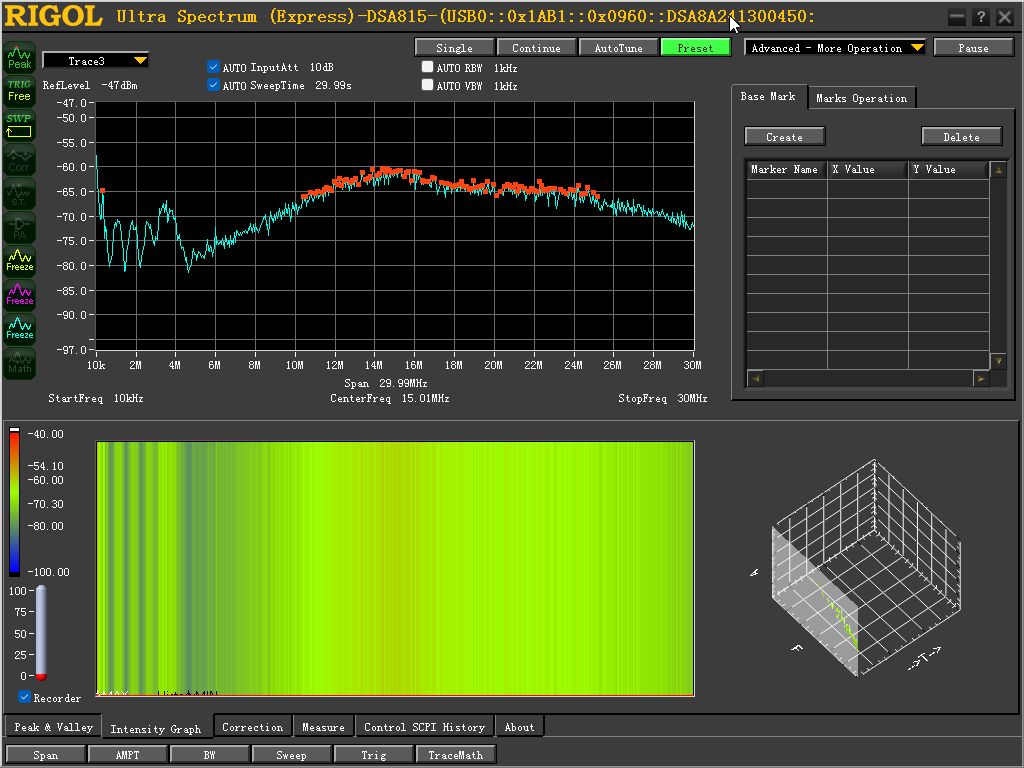

TP-Link power supply

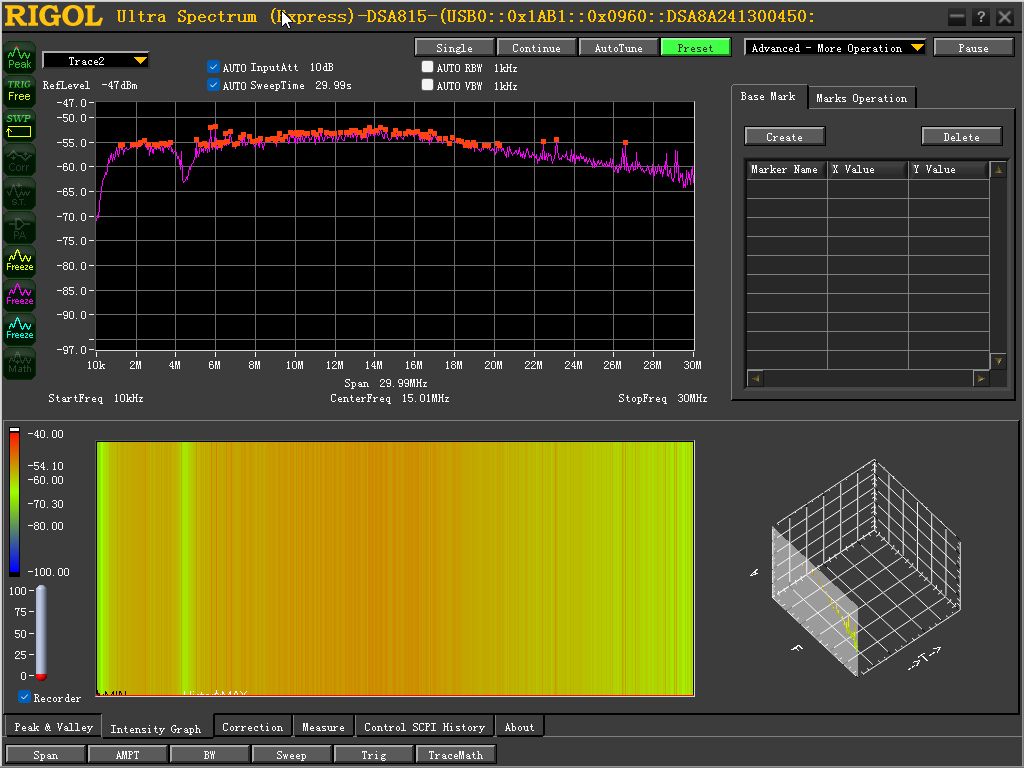

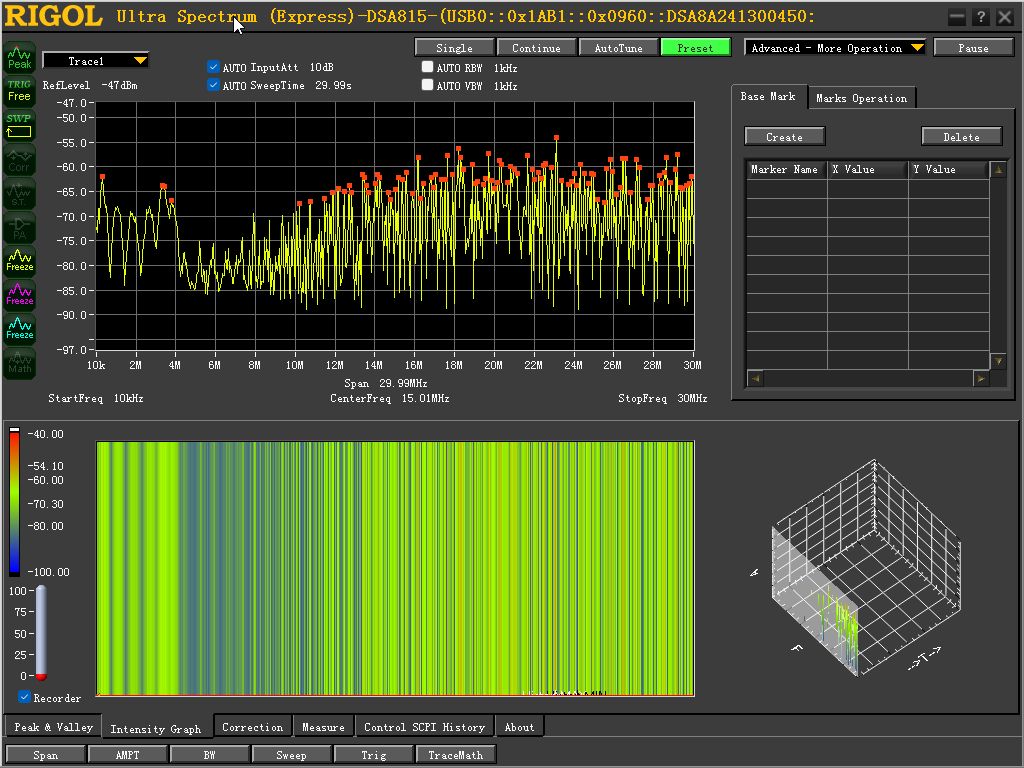

For a look. There is quite a lot of turbulence in the measurements. In idle mode, we see quite a bit of jitter. And under load, there is just a lot of red to be seen. Although it’s all not too bad in the lower frequencies. Perhaps this has more influence than the higher spectra…. This switch bothers your author quite a bit…. We are definitely going to continue looking into how this is possible.

Buy here

Product

Link to store

Price

Netgear GS108E - Amazon
36EUR
Dlink 108 - Amazon
32EUR
TP-Link 1008D - Amazon
19EUR

110 COMMENTS

  1. Hi,

    I have read the article and comments carefully and have few questions.

    1. In the comments it is suggested that it was V4 of Netgear GS108E used for testing while only V3 seems to exists. There is no Netgear GS108Ev4 listed on Netgear website – can you please confirm which version was in fact used?

    2. Would it be possible to update the article with a photo of the label of Netgear GS108E to once and for all address it’s version used for testing

    3. Which type of plug has your PSU for Netgear ProSafe GS108E – I am asking as there is a slight possibility that UK vs EU vs IT vs US etc. all might have different PSUs due to different plugs needed.

    4. Would it be possible to update the article with a photo of the PSU of Netgear GS108E for future reference.

    5. In article in Netgear GS108E section, it reads “This GS108E is a ‘lite version’ of the GS108T that your author is using at home. Technically, they don’t differ that much. The “E” version is a “smart managed” model on which you can adjust a few things. But that is not necessary to make it work properly.”.

    My question is – was the testing done using GS108E or GS108T?

    And now about my setup :):

    6. I have to NASes and number of switches scattered through the floor plans due to space layout. There are 5 switches in the chain between NASes and my sources (and that cannot be changed).

    a) Is it only the switch to which my source (streamer) is connected benefits from having Netgear GS108E
    b) or is it maybe all 5 switches that would be best to have as Netgear GS108E
    c) or maybe only the source and the NAS switches (so to opposite ends of chain of 5 switches) would benefit the most from Netgear GS108E?

    7. And finally – I would love to connect my NASes to TP-Link TL-SG108E (which is the same chassis with internals designed by TP-Link) – the reasons is that this TP-Link allows for Static LAG hardware config which would be beneficial for my NASes.

    Thank you for this great article and I hope you can guys get back to me here in comments with some if not all answers to my questions.

    Cheers

    • If you click on the Netgear section of the article, there are three images of the actual Netgear switch used in this test. It reads clearly the name on the lid of the switch.

      The last switch in front of your streamer is the one with the most impact. It is not about the path from the NAS to the streamer, it is about the path from your router to the streamer. Daisy chaining switches in that path does influence the sound (for better or worse). It is up to your ears what you like or don’t like.

      The NAS has little impact on sound quality. So, if you want to use another switch for your NAS, I see little reason why you won’t.

        • We are in The Netherlands. I don’t understand what you mean with ‘which type of plug’. There’s a 5V DC round connector on the Netgear, which is quite universal around the globe.

          I don’t know which revision we have, I’m not at the office in Haarlem, so I cannot check.

          Even with local streaming you use a router, how else does the network deliver the data packets from the NAS to the streamer? The impact of the router is in electrical noise, so it has the same influence if you stream from the internet or locally.

          • Ok, if you are in NL that means that you are using EU two prong plug 🙂 – the part that goes to the wall. Ok.

            With local streaming router has no influence and is not needed for communication and does not take part in it between the devices on LAN within the same subnet.

            Router is an edge device. It routes the traffic between different networks. In home setting in 99.99% cases it means traffic between LAN and WAN (internet).

            That is of course basic IT knowledge but not everyone is IT 🙂

            Once your NAS is powered on and has IP assigned from DHCP (if set with dynamic IP) and same with your streamer you can unplug router (if the devices share a switch or number of switches like in my case of course, but that is a scenario we are discussing here) and it will all work no problem.

            If NAS and streamer are set with static IP the router never has to be on (of course DHCP server is not a standard function of router but in home settings people say router but really mean a device that performs functions of router / firewall / switch / DHCP server and few other).

            Hope that makes sense 🙂

  2. Hi guys 🙂

    I’m new to using switches with my streaming
    and considering to add the above netgear gs108e switch.
    As i understand that it’s a managed version, does it mean I’ll have to set it first on a pc?? or it can also be used as plug and play??

    Thanks 😉

  3. Greetings from the Czech Republic. Thank you for your tests and reviews👍. Recently, the topic of audiophile switch is still being discussed. I have a setup of MOON 390 and 2x MOON 330, CD MOON 260, IsoTek Aquarius EVO3 and from the very beginning Ifi + Netgear GS 105. I have already tried several audiophile switches at home from cheap to very expensive to improve my system and I never heard any difference . So either I’m deaf 😎, or I’m doing something wrong, or on the contrary, everything is ok😀. What do you think, would you recommend something for me to try, or should I leave it as it is now?. Thank you David

  4. Jaap, Excellent article and related videos. I have a favor to ask. If you get a chance at some point could you test the UniFi Flex or Unifi Flex Mini at some point? Those are the only two Unifi switches that do not have POE. I’m not sure if disabling the POE on a switch would be equivalent to not having POE in the first place.

    I purchased the Netgear GS108E and iFi power supply and that has worked out great. Since then I have upgraded my entire network to Unifi controler with an Enterprise non-POE switch as well as a 24 port POE switch and other gear. The thing is that since the Netgear is not part of the ecosystem it does not display properly in the console. It looks like my TV and streamer are connected directly to my Enterprise switch. That’s fine if the smaller Unifi switches are noisy but if they are not it would be nice to have a Unifi switch that could display correctly and be managed from the main console.

    I would suspect there are many Unifi users out there that could benefit from finding out how their switches measure. Otherwise I’m happy with the NetGear, so thank you.

  5. Hi, on your advice I have a Netgear GS108 and ifi power supply connected just behind my router with a double shielded patch cable. My question:
    From my Netgear switch I run a shielded outdoor-specification network cable approximately 25metres to my garden room. I bought the cable naked and took great care to ensure I kept integrity of shielding when installing the connectors each end. What should I have in my garden room? I currently have a re-purposed old router to act as a switch for my Anthem amplifier, Lumin streamer, Apple TV and Philips Hue lighting controller. Naturally this also gives Wi-Fi for phone / iPad etc. Would you recommend a better Wi-Fi router as a replacement (with a ifi power supply) in which case any suggestions?
    Or should I install the same switch and power supply in the garden and feed the old router from it just for the Wi-Fi?
    I really appreciate your work and research👍🏻

    • If this works, I would keep everything in place, but just add an extra switch in between the repurposed router and the Lumin streamer and leave everything else connected to the repurposed router.

      Then you add an extra layer of isolation from noise from the repurposed router.

      The power supply supplied with the Netgear is already well behaved. I would try with the one supplied first and switch it with the iFi one you already own and determine with your ears if the extra spend is worth it for you.

        • Thanks gentlemen. So buy another switch for the other end of my source chain – that makes sense.
          The logic being it is better to have only the LUMIN fed off the new switch. Obviously I have to connect the repurposed router to the new switch for the other devices…can any noise from the old (cheap) router affect the new switch?
          You think it’s unnecessary to have a replacement power supply for the new switch, however I thought the message in your article above recommended partnering an ifi power supply?

          • Keep everything plugged in as it is now, except the ethernet cable directly attached to the Lumin streamer. Connect that cable on the other side to the new switch and add a new cable from the new switch to the device where the Lumin streamer cable is now plugged into. That’s all.

            You can always upgrade the power supply, the advice is to listen first. It won’t do any harm and it won’t be worse.

      • Hello Martijn. I have a slightly different approach. I totally agree that there should be a switch in between the router and the Lumin, but maybe the router should be protected against noise from the network and not especially the other way around :-). Lately I have tested with many devices and cabling and everytime I protected the router against noise. The complete setup started to sound better and better. My advice would be the switch in between the router and Lumin, but even more important no other cable should be connected with the router. My thoughts at the moment…when noise reaches the router… the router will backfire on the ethernet. Normal ethernet noise can be handled, but when the router is troubled there will be bad sound 🙂

  6. @Jaap – very interesting. I would like to know does your findings apply to the scenario when cooper connection is broken/isolated by fiber-optic connection? In my setup I have TP-Link MC200CM 1Gb ETH => Fiber converter powered by self made hi-quality LINEAR power supply, later 0,5m fiber patch cable and back TP-Link MC200CM (it’s bi-diretional) from fiber to 1Gb ETH (again this side powered by hi-quality LINEAR power supply) and then to the streamer. So I am breaking any galvanic connection with any switches and other network infrastructure I have at home. Does how noisy switch is matters in such scenarion as well?

      • Does it makes sense to take assumption that taking the conjunction of good switch such as TPlink1008 + fiberoptic converter could bring the positive result? I was thinking of replacing/adding good switch like TPlink1008 in my server room and keep Tp-link fiber converter at the streamer? Server room is roughly 15m to listening room and cabling is done by CAT7 SFTP.

          • OK, Let’s take this question with Dlink 108 switch. I am trying to see rater the rule, the essence, mechanism in this question. So using Dlink 108 on server room side => 20m CAT7 SFTP =>ETH-Fiber=>Fiber-Eth. Does this setup brings any hope to improve by replacing existing switch to Dling 108? Long story short – I want to keep fiber converter as it play nicely just asking if adding/replacing existing switch to Dlink 108 before this fiber converter will change something/improve something?

        • Just from a listening experience: keep it simple. The Dlink GS108 is a very good switch for audio use, even though it isn’t designed for audio use. Place it close to the streamer (so, a 1 to 2 meter cable is needed from the switch to the streamer).

          Buy a nice 5V power supply, one made for audio for the Dlink switch and just enjoy the music.

          Stacking endless switches, optic, all that kind of endless tweaking, takes away from the sound quality in my experience. The sound starts to get more and more sterile.

          Having a big switch in the server room for networking purposes feeding the Dlink is fine, but don’t add anything else.

  7. I also would like to thank you for opening my, and others, eye´s to these things!

    I have a question related to ethernet cables into a switch, in my case the gs105e with Ipower X.
    Do you believe that having a few less shielded ethernet cables connected impacts the whole switch? In other words, should I ideally update all the ethernet cables in the switch or will the noise not likely bleed between the ports?

    Please keep up the amazing work for the audio community! Thank you!

    • Let me add some context to my question.

      today i have 5 new no-name CAT8 cables (cheap) going into my switch and now I wanted to test a more expensive one into my streamer.

      But then I thought, what if the other cables are adding noise into the streamer, due to their poor shielding, then my expensive cable will just protect that “noisy” signal into my streamer anyway?

  8. Hi guys,

    First of all, huge fan from Romania. I really love your work.
    To be honest, I found your YT channel by accident searching for some audiophile network switches reviews and I immediately subscribed.

    Based on your tests, I also purchased the D-Link DGS-108 switch, and based on a comment from Martijn I purchased the Ifi Audio iPower 2 switching power supply in order to switch the default power supply of the D-Link switch.

    I am hoping you could answer to my next question, which hopefully is not that stupid :).
    Q: Should I use the iPower 2 with its default plug or do I need to use one of the added adapters which are given in the box? I am guessing some adapters, even if they fit the D-link switch, they might damage it in time.

    Thank you for your time and keep up this awesome work you are doing.

    Best regards,
    Andrei.

    • Hi Andrei,

      Thank you for your kind words!

      About the plug: don’t worry… you can’t really damage the switch. If the plug fits, it fits. And it will work fine. Just pay attention to polarity. Some plugs can ‘flip’ the polarity (+/-). But IFI will mention that explicitly on the plug.

  9. Hey, great review very detailed. Back in the late 80’s I worked with Western Digital on the first 100M Ethernet boards for PCs. We had a dial up system that used their boards. Hey it was the beginning of the internet what do you expect.

    Back then it was all about common mode noise as the culprit of quality on a network switch or controller. Was wondering why you didn’t do any of that testing on these units?

    Your test sets would allow differential and common mode testing.

    Thanks,
    Gordon

  10. Hi,
    I’ve been absorbed by this review and video for several hours! 🙂
    I’ve bought a GS108Ev3 today and want to improve its perfomance by upgrading the power supply. Do you recommend a switching or linear power supply and which one(s)?
    Thanks!

  11. Hello.
    Very interesting article.
    I tried a different approach for my network connection, the idea was to simplify the network eliminating the switch that was close to my Chord 2GO/2YU streamer but keeping it visible from home network.
    I use Roon, and in the past I tried on my MOCK the double network card strategy that you, but also others, suggested: the motherboard RJ45 port was connected to the ISP generic router and a PCI RJ45 card to the streamer. It’s very easy to configure and in my opinion it gave very good sound improvement, but it requires to have the 2 ethernet cards on a different subnet.
    That means that the streamer was “isolated” from the home network (on a different subnet so not reachable).
    Investigating further, a guy from the Roon community told me it’s possible to keep the streamer on the home subnet using the “ethernet bridge configuration”, but while this can’t be done on ROCK, Linux supports it.
    So I spent some hours (I was not familiar with Linux and also didn’t know how to bridge the 2 ethernet cards, so I had to learn), but at the end I’ve been successful.
    I also added another thing: the PCI exp card is now an SFP adapter , a very cheap one from Amazon, and also the SFP fiber modules are 2 cheap single-mode devices.
    I use a fiber connection between the Roon server and the streamer, then I had to use a TPLink media converter between fiber and streamer, which has been powered with a homemade linear psu based on a modified board I bought on Audiophonics.
    The RJ45 adapter from the motherboard is directly connected with a CAT6 cable to the router.
    This gave an incredible sound improvement and allowed me to keep the streamer on the home network and use it to stream film soundtracks from my MacBook via airplay. Some weeks of test made me understand that this is just another step to make the system sound better, but there is still some work to do as the harshness is reduced but still there.
    Now I’m wondering if it’s better to increase the quality of the devices I’m currently using keeping the same optical/copper configuration or instead install in the Core a high quality double net card like the JCAT XE directly connected to the streamer with high quality network cable obviously using a 5V linear PSU for the card.
    Thanks

  12. Hi, thank you very much for all your efforts.
    I am interested in purchasing a Netgear GS108E. Actually, I discovered such a item has reached the v4 version. Which version was used in your tests?

    Thanks

  13. Mooi stukje!

    Hebben jullie ook de Dlink DGS108 al eens vergeleken met de Cisco SG110D?

    Van beide hebben jullie vgm al eens een review geschreven.
    Zelf heb ik de Cisco met Ifi Ipower voeding maar zou graag willen weten of het zich loont om de Dlink te proberen.

  14. Mooi stukje!

    Hebben jullie ook de Dlink DGS108 al eens vergeleken met de Cisco SG110D?

    Van beide hebben jullie vgm al eens een review geschreven.
    Zelf heb ik de Cisco met Ifi Ipower voeding maar zou graag willen weten of het zich loont om de Dlink te proberen.

  15. Hi,

    Thanks for the awesome switch test. I acquired an LHY SW-8 switch some weeks before your test. I use it with an R26 DAC and a Mac Mini M1 serving Roon/HQP. It brought great improvements to my system that were consistent with what you described, particularly in Martijn’s separate review of the SW-8: a broader and deeper soundstage, longer reverberations and sense of space, whilst being a more natural sound with less glare. Amazing what a good switch can do.

    So just last week based on your test findings & recommendations as an experiment I got a Netgear GS108E switch which I paired with a spare Ifi Power X PS and placed in series with the LHY I.e. Generic router > Netgear GS108E > LHY > R26.

    Wow. The soundstage focus tightened considerably with a seemingly quieter background, more detail and improved micro-dynamics, a bit leaner, but still retaining the characteristic LHY natural and easeful sound.

    Flicking back to the LHY alone it was warmer and smoother with a more generous if slightly bloomed bass. It took a few minutes to get used to the shift – the two switch combo is definitely more resolving and feels balanced so is staying. Oh, and adding a small grounding tube to the Netgear further relaxed and focussed the sound (doing this with the LHY had a negative effect, perhaps due to its already well sorted power section).

    I am constantly amazed how upstream improvements in the digital chain, even seemingly minor ones, can seriously and cumulatively improve a streamer’s & DAC’s performance.

    Will try adding FMCs next, further down into the rabbit hole I go! 😅

    Keep up the great work chaps.

    Jake

  16. Hi,

    Thanks for the awesome switch test. I acquired an LHY SW-8 switch some weeks before your test. I use it with an R26 DAC and a Mac Mini M1 serving Roon/HQP. It brought great improvements to my system that were consistent with what you described, particularly in Martijn’s separate review of the SW-8: a broader and deeper soundstage, longer reverberations and sense of space, whilst being a more natural sound with less glare. Amazing what a good switch can do.

    So just last week based on your test findings & recommendations as an experiment I got a Netgear GS108E switch which I paired with a spare Ifi Power X PS and placed in series with the LHY I.e. Generic router > Netgear GS108E > LHY > R26.

    Wow. The soundstage focus tightened considerably with a seemingly quieter background, more detail and improved micro-dynamics, a bit leaner, but still retaining the characteristic LHY natural and easeful sound.

    Flicking back to the LHY alone it was warmer and smoother with a more generous if slightly bloomed bass. It took a few minutes to get used to the shift – the two switch combo is definitely more resolving and feels balanced so is staying. Oh, and adding a small grounding tube to the Netgear further relaxed and focussed the sound (doing this with the LHY had a negative effect, perhaps due to its already well sorted power section).

    I am constantly amazed how upstream improvements in the digital chain, even seemingly minor ones, can seriously and cumulatively improve a streamer’s & DAC’s performance.

    Will try adding FMCs next, further down into the rabbit hole I go!

    Keep up the great work chaps.

    Jake

  17. On fiber – I have a similar finding. Quieter but also a bit of a hard edge to the music that is uncomfortable (much like the digital glare of old). This is improved with a better fiber converter on the streamer end (Sonore Optical Module Deluxe) – but even improved, that hardness was still there. I have to think it is a noise problem of converting from optical back to copper. My testing was with a Bricasti M3 DAC with network renderer. Copper with a passive noise isolator (Network Acoustics ENO) was less quiet (blackground) than the fiber but didn’t have the hard edge.

    That said, when I upgraded to a Bricasti M21 DAC with the same network rendering technology as the M3, I could use the fiber with the Sonore module and didn’t have the hard edge. Must be better noise isolation in the M21, although the network card is supposed to be same between the two.

  18. On fiber – I have a similar finding. Quieter but also a bit of a hard edge to the music that is uncomfortable (much like the digital glare of old). This is improved with a better fiber converter on the streamer end (Sonore Optical Module Deluxe) – but even improved, that hardness was still there. I have to think it is a noise problem of converting from optical back to copper. My testing was with a Bricasti M3 DAC with network renderer. Copper with a passive noise isolator (Network Acoustics ENO) was less quiet (blackground) than the fiber but didn’t have the hard edge.

    That said, when I upgraded to a Bricasti M21 DAC with the same network rendering technology as the M3, I could use the fiber with the Sonore module and didn’t have the hard edge. Must be better noise isolation in the M21, although the network card is supposed to be same between the two.

  19. Thanks Jaap,

    I await the next testing with considerable interest. The what is happening and then the why is it happening (if it exists) fundamental. For me there are definite listening benefits with audio rated quality switches, cables and accessories. Those with data centre enterprise networking experience say no way.
    John

    • I have worked in IT for 40 years (since before it was called IT!). When it comes to network switches used for audio purposes, it’s actually a disadvantage to work in IT as our world is all about digital of course. The impace of a switch in an audio chain is to kill (analogue) RFI/EMI noise. No 1s and 0s are harmed or enhanced by a network switch and super-accuracy clocks in switches can’t affect sound quality because of the way ethernet works (in data frames, with error correction, asynchronously). So the data centre guys are right when they look at this through a digital lens but wrong in the world of music reproduction.
      In our world, a switch is there (and there must be maybe 0.5 to 1m cable to the streamer not next to the router) to kill noise – or at least to minimise it. The better a switch is at killing noise, the more effective it is for audio purposes. All an “audiophile” switch can do is to kill noise more effectively than a basic switch: a well-designed case to stop noise getting into the switch, and quietened cicruitry so the switch itself doesn’t become part of the problem.

  20. Thanks Jaap,

    I await the next testing with considerable interest. The what is happening and then the why is it happening (if it exists) fundamental. For me there are definite listening benefits with audio rated quality switches, cables and accessories. Those with data centre enterprise networking experience say no way.
    John

    • I have worked in IT for 40 years (since before it was called IT!). When it comes to network switches used for audio purposes, it’s actually a disadvantage to work in IT as our world is all about digital of course. The impace of a switch in an audio chain is to kill (analogue) RFI/EMI noise. No 1s and 0s are harmed or enhanced by a network switch and super-accuracy clocks in switches can’t affect sound quality because of the way ethernet works (in data frames, with error correction, asynchronously). So the data centre guys are right when they look at this through a digital lens but wrong in the world of music reproduction.
      In our world, a switch is there (and there must be maybe 0.5 to 1m cable to the streamer not next to the router) to kill noise – or at least to minimise it. The better a switch is at killing noise, the more effective it is for audio purposes. All an “audiophile” switch can do is to kill noise more effectively than a basic switch: a well-designed case to stop noise getting into the switch, and quietened cicruitry so the switch itself doesn’t become part of the problem.

  21. I have received and read to post re the testing of various Ethernet switches. The comments were useful and interesting. The switches tested all seem to be at the lower end of the what is available especially for audio networking purposes.

    It would be of more interest to me and probably other readers of the Forum if you undertook a similar evaluation of some higher quality more expensive audio network switches. I suggest the following Brands as examples. There are others
    Melco
    SOtM
    Paul Pang dual or quad
    Silent Angel Bonn Pro
    Waversa
    Renolabs

    John

  22. I have received and read to post re the testing of various Ethernet switches. The comments were useful and interesting. The switches tested all seem to be at the lower end of the what is available especially for audio networking purposes.

    It would be of more interest to me and probably other readers of the Forum if you undertook a similar evaluation of some higher quality more expensive audio network switches. I suggest the following Brands as examples. There are others
    Melco
    SOtM
    Paul Pang dual or quad
    Silent Angel Bonn Pro
    Waversa
    Renolabs

    John
