Home A (very!) deep dive into network switches- listening and measuring

A (very!) deep dive into network switches- listening and measuring

45

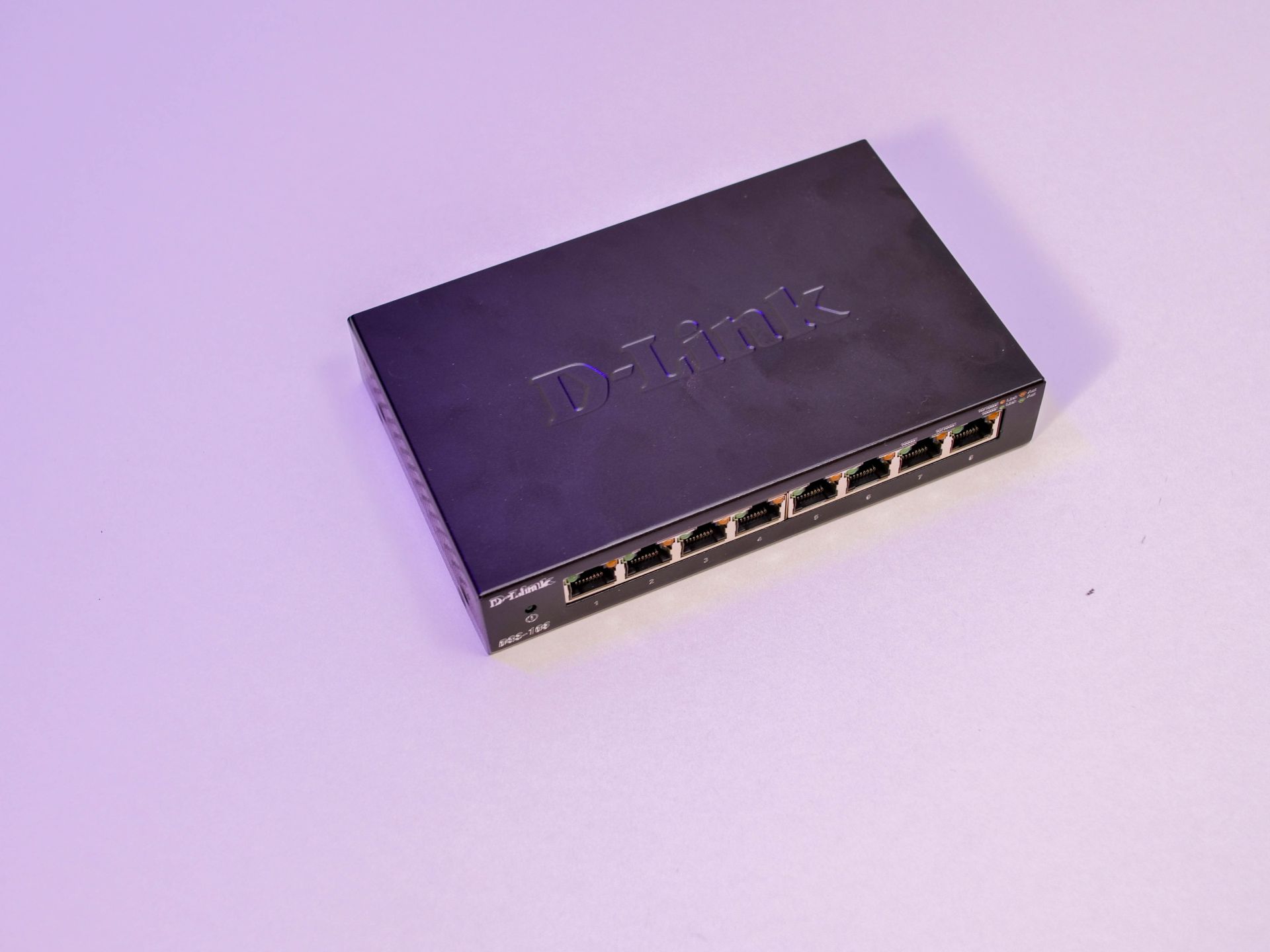

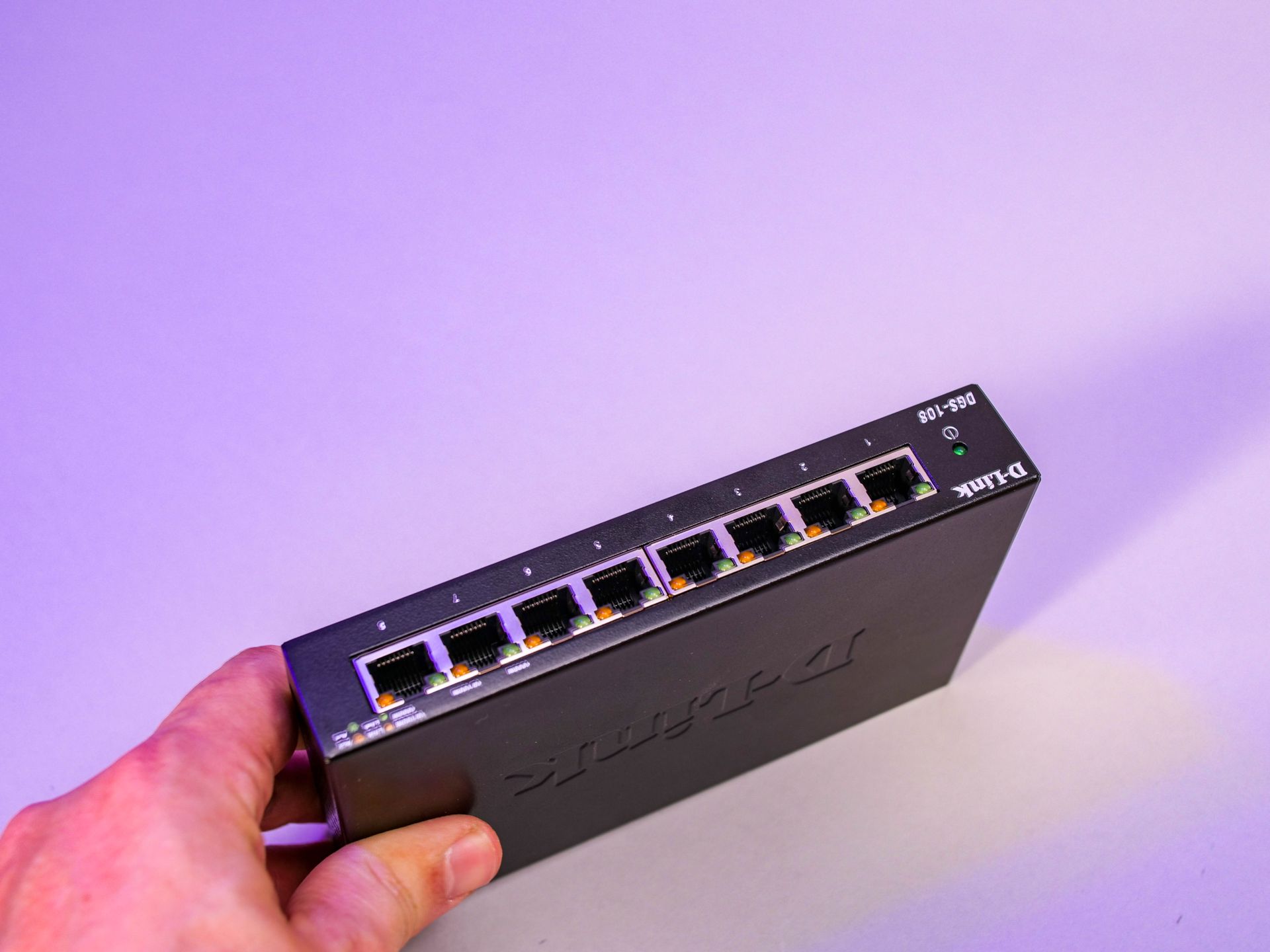

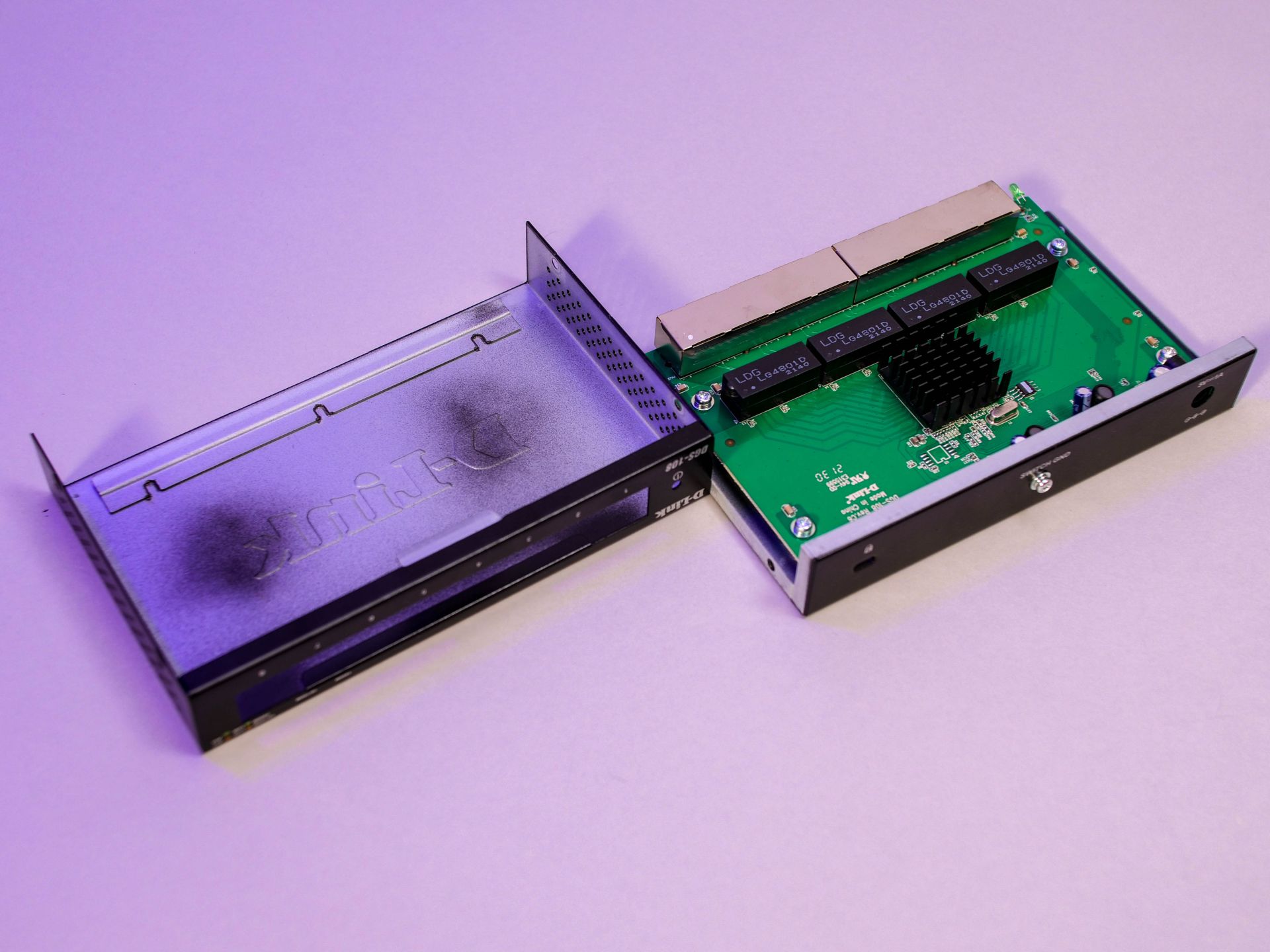

Dlink DGS-108

The Dlink DGS-108 is a well-known model in the audio world. For example, Paul Pang uses them as the basis in his audio switches. And also AQvox has used them to modify. We understand that, since the price is interesting AND the switch itself performs nicely in the measurements.

Sound-wise, the Dlink 108 does an excellent job. It even ends up in the Top-3! Martijn is particularly impressed with the piano piece: “Magic in the first notes: I can even hear the pedal work. Rhythm is very good”. And he is right: it really clicks beautifully with the Dlink. In the first song – Talking Heads – it’s a bit variable. The interpretation seems a bit different. But in the end, the Dlink just does it very well. (Link to Amazon)

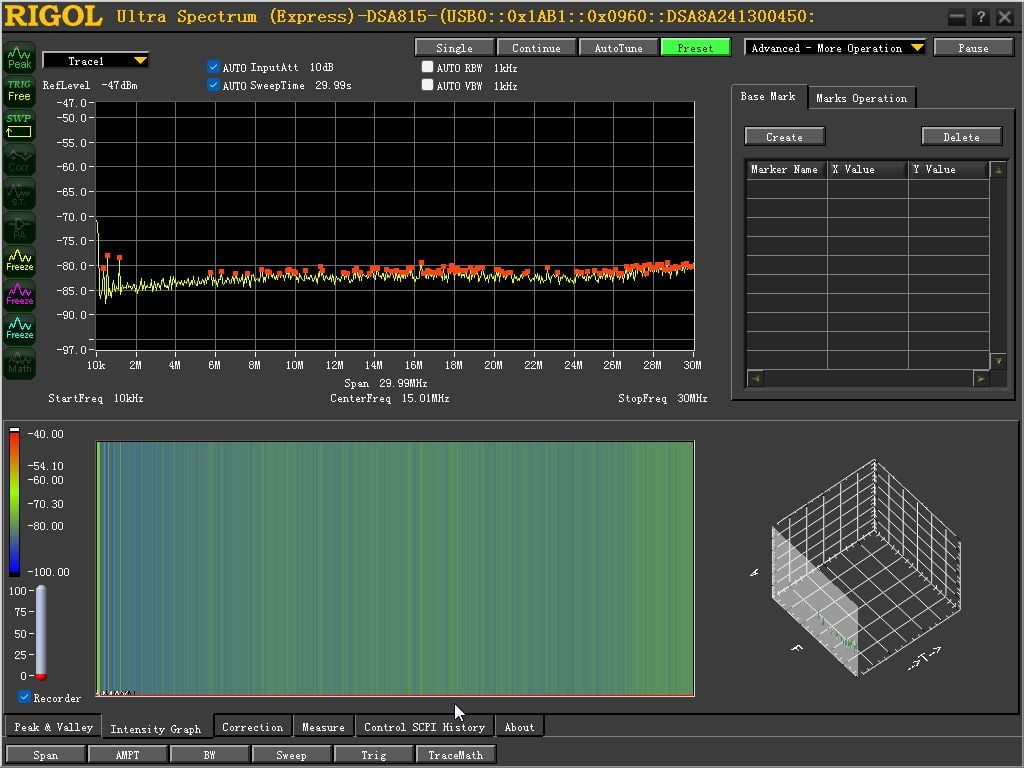

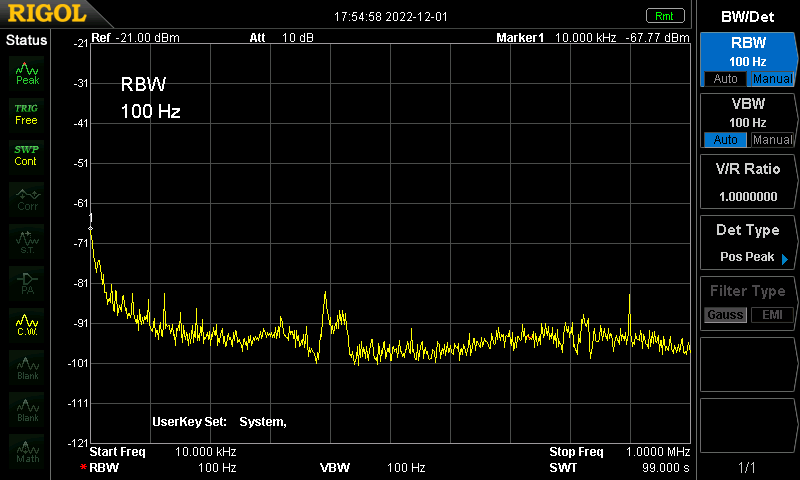

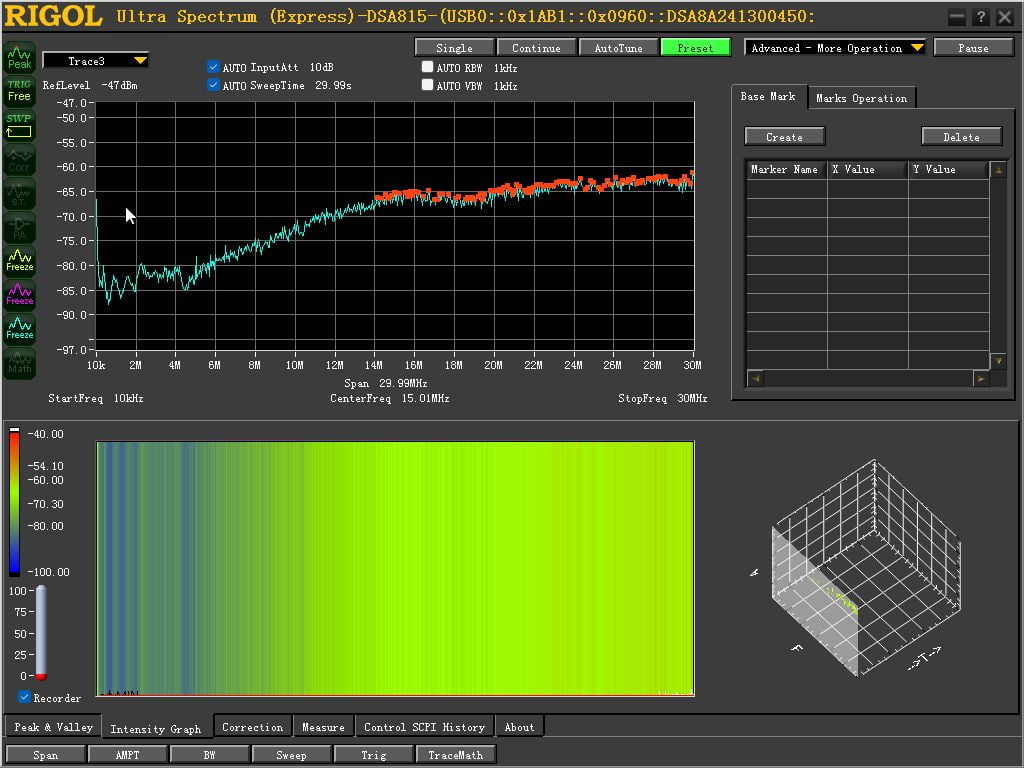

Dlink DGS-108 – Switch noise

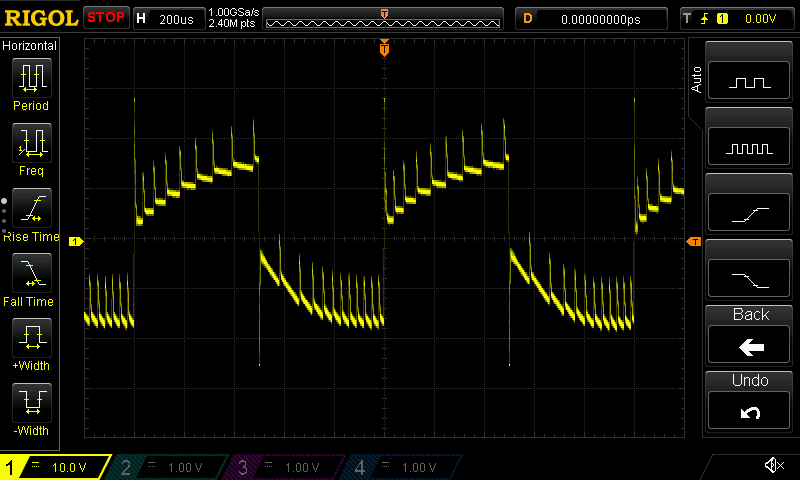

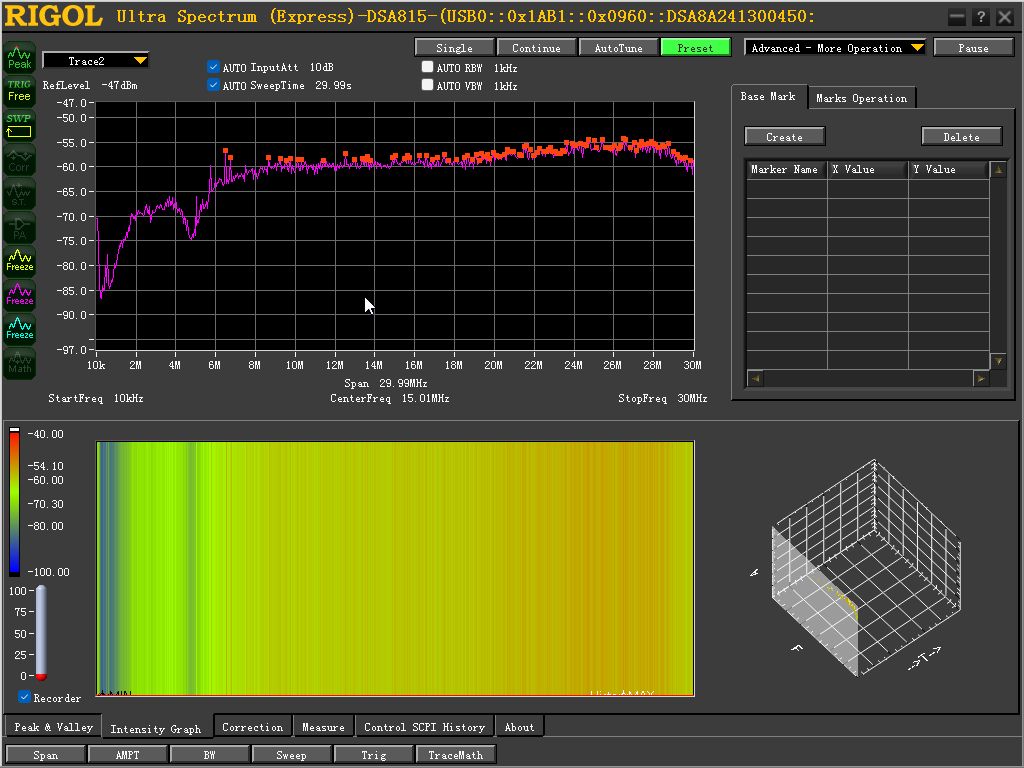

Dlink DGS-108 – Power supply noise

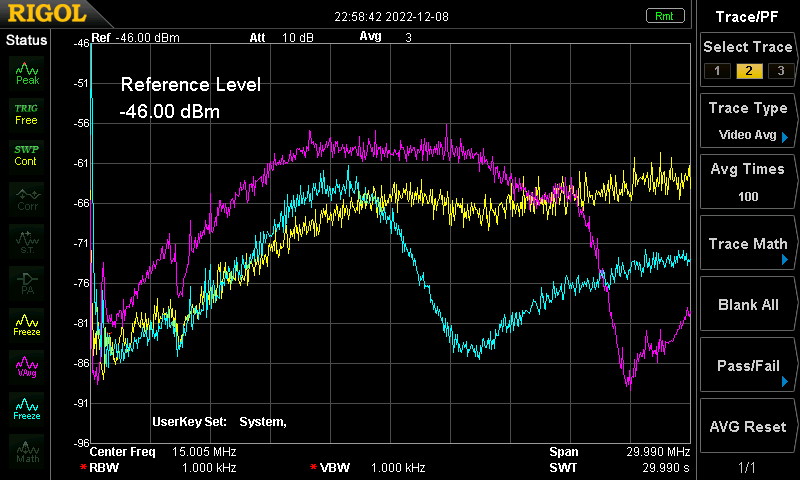

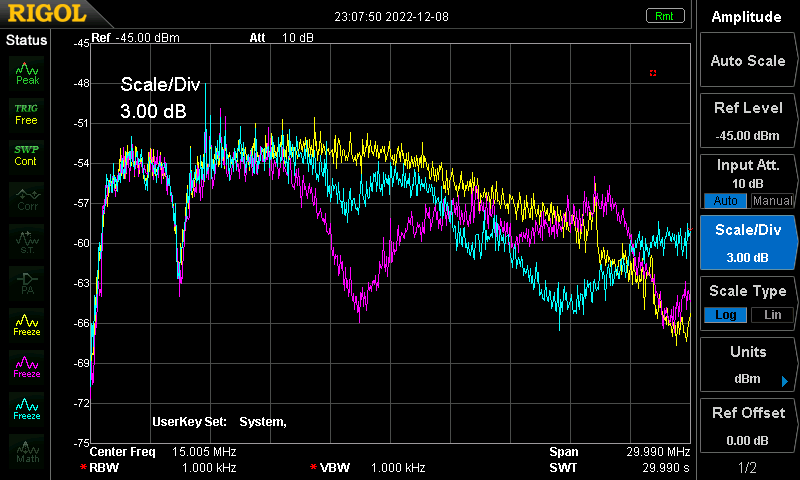

Dlink DGS-108 other PSUs

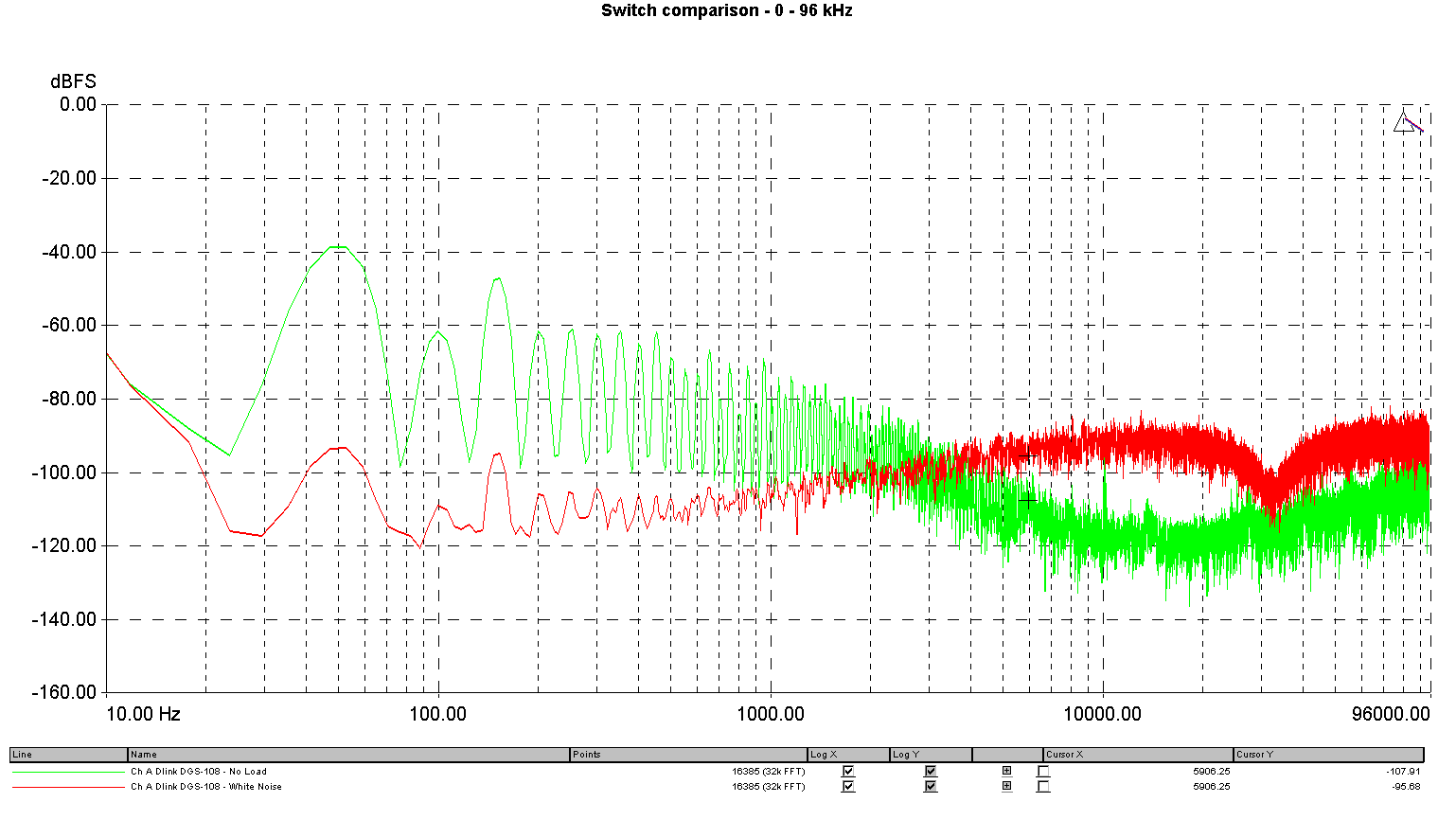

We took a little more measurements on the Dlink. But let’s start with the standard measurements. Dlink shows that the basics are just fine: the noise in idle mode is very low. And under load, it’s under control. Higher than the Netgear, though. That one performs ridiculously well there. The power supply noise is just fine. And in load also, though we see a crazy dip. No drama after that. Great product.

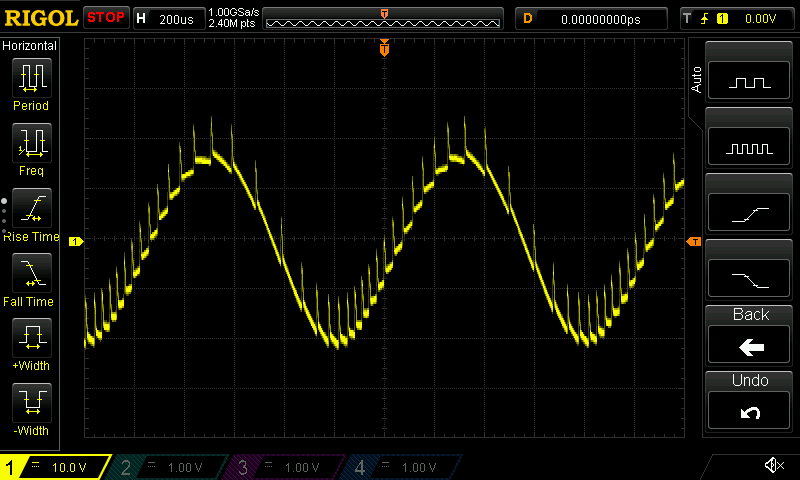

If we connect other power supplies to the Dlink you can see what happens: completely different characteristics. And that is immediately audible. Anyone who has experimented with this knows what a different power supply on a switch does. What is immediately noticeable is that the Sbooster lets through more noise than both the standard and the IFI power supply. However, port noise drops with the Sbooster. It shows the trade-off well. A linear power supply can be better if the design is also good. But shielding the power supply is crucial! And filtering the noise as well.

Type test
Multitest
Features
  Cisco SG110D-05
  • Build: Simple, small and light
  • Sound: Restless, sharp
  • Imaging: Bit flat
  • Overall: Not very nice. Bit sharp. Too expensive
  • Price: 71
  Cisco Meraki YETI
  • Build: Sturdy, bit boring.
  • Sound: Lively, airy, detailed
  • Imaging: Large, sharp image
  • Overall: Nice sounding switch. Decent upgrade
  • Price: 929
  Dlink 1210P
  • Build: Decent, sturdy
  • Sound: Restless, detailed, but sharp
  • Imaging: Okay, but not special
  • Overall: Bit sharp sounding switch. Lacks bass
  • Price: 199
  Dlink DGS-108
  • Build: Decent, no-nonsense
  • Sound: Very nice. Fluid, detailed, nice image
  • Imaging: Large and sharp image
  • Overall: Very nice switch with a decent price
  • Price: 39
  Edimax 5500G V3
  • Build: Plastic, cheap
  • Sound: Average. Nothing special. Doesn't 'click'.
  • Imaging: Bit flat and boring
  • Overall: Not a very nice product. Cheap build and dull sound
  • Price: 30
  LHY SW8
  • Build: Very nice build. Sturdy
  • Sound: Very detailed presentation. Light footed
  • Imaging: Very large image. Impressive
  • Overall: Bit fresh sounding, but loads of detail and air
  • Price: 849
  Netgear GS108E
  • Build: Sturdy, no-nonsense
  • Sound: Nice balance. Robust and coherent
  • Imaging: Stable image, tight focus
  • Overall: Very nice product. Sounds coherent and nice! Measures extremely well
  • Price: 27
  Pura Amonite
  • Build: Sturdy, industrial look
  • Sound: Airy, large image. Bit fresh and sharp sometimes.
  • Imaging: Large and airy
  • Overall: Nice product, but tad sharp sometimes.
  • Price: 1900
  TP-Link 1008D
  • Build: Plastic, cheap
  • Sound: Sounds fun! Airy, not really precise, but good.
  • Imaging: Large image. Airy
  • Overall: Weird. Sounds decent, but measures bad...
  • Price: 17.50
  TXE064
  • Build: Metal, but ugly
  • Sound: Sounds really bad via PoE ports. It's okay with normal ports.
  • Imaging: Flat.
  • Overall: Sounds bad. Measures bad.
  • Price: 39
  Delock Fiber
  • Build: Sturdy, no-nonsense
  • Sound: Tight, detailed, but bit dry
  • Imaging: Wide, but low image. Feels like 16;9 TV
  • Overall: Nice calmness, but tad dry sounding
  • Price: 90
