The Major DAC
Contents
For many, the heart of the Grimm MU2 will be the d/a converter. Although we must say: the preamplifier is also terribly good…. It is so good that we dare to say that you don’t need a preamp with the MU2.
But back to the d/a converter for a moment. Grimm wouldn’t be Grimm if they took a different approach. Under the hood there is no NOS dac, no standard AKM or ESS…. there’s a “1.5” bit dac inside. This one the gentlemen in Eindhoven have dubbed the “Major DAC.
This ‘Major DAC‘ is a kind of modified version of DSD, since it works with not two but three ‘levels’. There is a 0, a 1 and a kind of 1.5.
0 is 0 100% of the time. A 1 is 50% of the time 0 and 50% of the time 1. And the “1,5” is 100% of the time 1. So it is a very basic PWM (pulse width modulation) construction. The reason Grimm chose this form of conversion is to get rid of the modulation problems of 1-bit DSD. But let’s take a small step back.
The development of this ‘1.5-bit dac’ was done by Pieter Meijer and Gertjan Groothulze. It was not easy to develop. It took about three years. The reason Grimm did not go for multibit is that it is practically impossible to get a fully linear character. Getting above 18-bit resolution is very difficult.
Bitstream – DSD – again has the disadvantage that the high spectrum is not fully linear with signal strength. Moreover, stable clocking is particularly important with DSD: the frequencies are very high. As is keeping the high-frequency output in check. This noise can be a burden on amplifiers and speakers.
Now there is an intermediate form: dacs that work internally with a 5bit architecture. However, this also requires a very high (sometimes even higher) internal frequency than DSD and we have to deal with very complex noise shaping, which in turn requires more processing. This costs money, which often results in sub-optimal performance: exceptions aside.
So, the Grimm-solution is in the 1.5-bit design. This PWM technique is kind of a hybrid of DSD and the 5-bit dacs.
The 1.5-bit design still has to deal with an incredibly high noise floor (you go down from, say, 24 or 16 bits to “1.5,” which increases the noise floor by about 6dB per bit). Therefore, extreme filtering must still be done to get rid of the noise.
Grimm uses an 11th order noise shaper. That’s insanely steep. And – we estimate – it also requires a lot of processing power as a result,. However, that can be done just fine with the powerful FPGA in the MU2. Moreover, the noise shaper – according to Grimm – works completely error-free and completely linear.

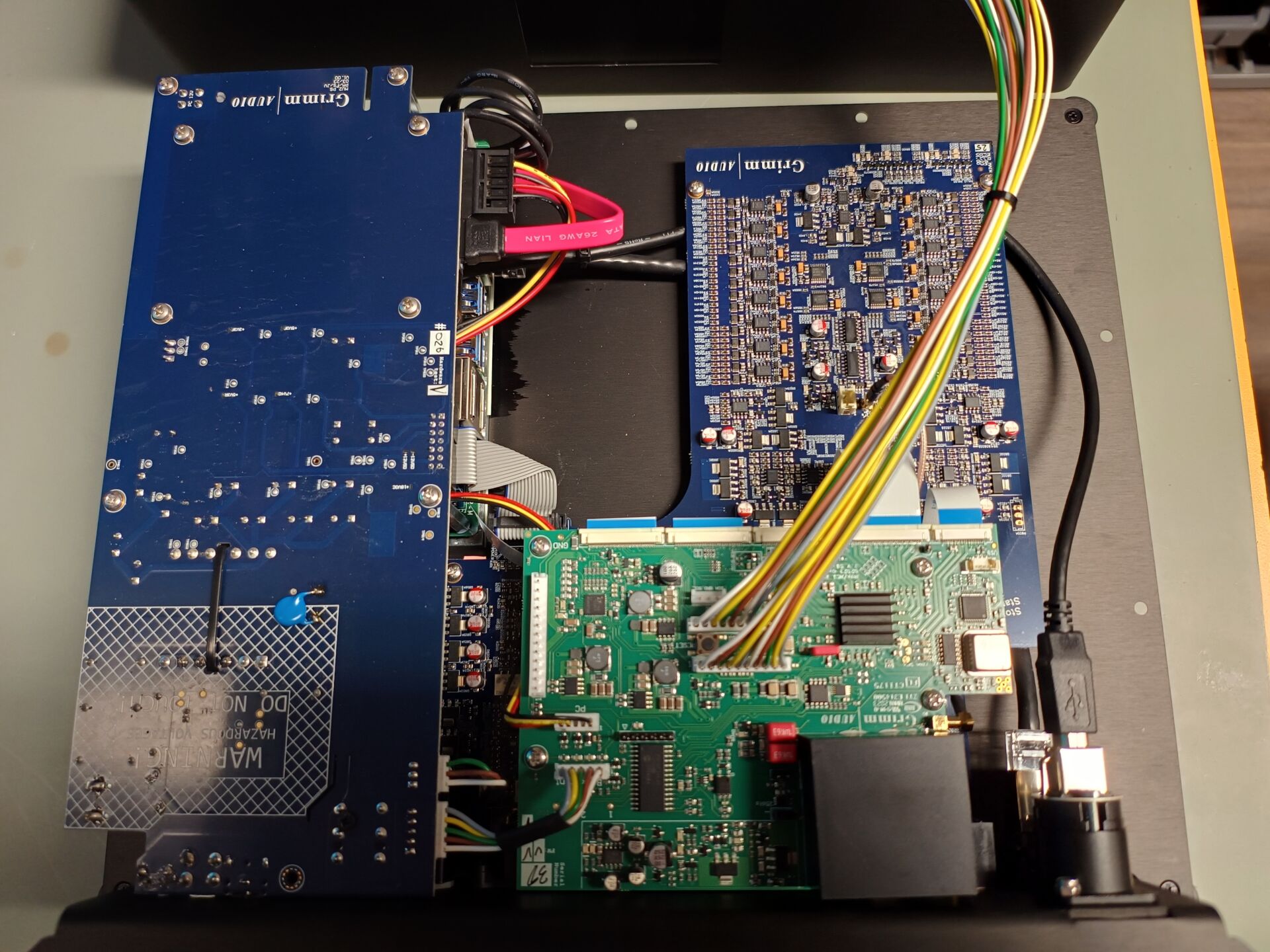

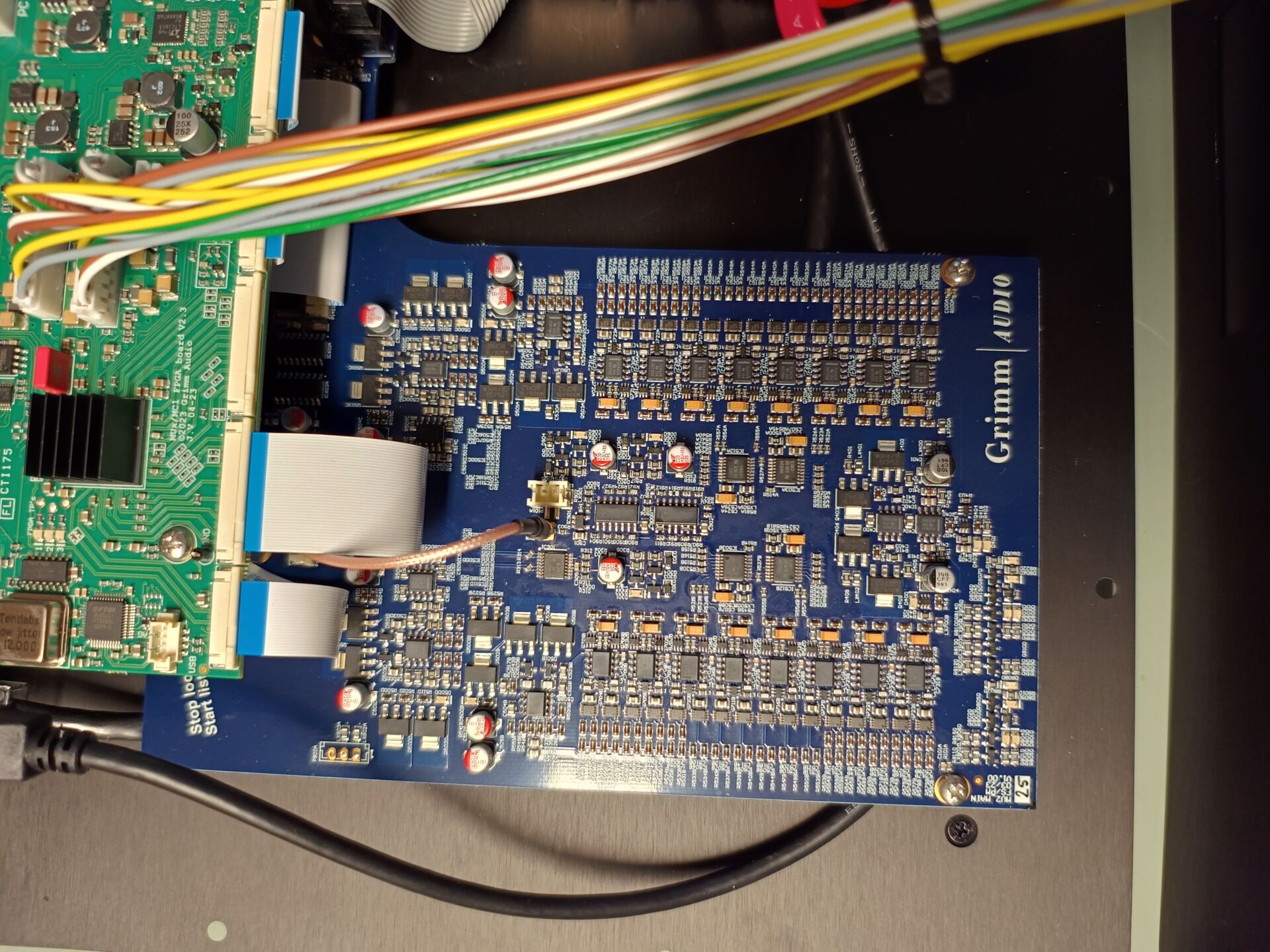

The FPGA with noise shaper and oversampling then sends the signal into the converter. Grimm opted for an FIR-DAC. This consists of 16 dac cells per side. This then sends the analog signal into the pre-amp where the volume can also be regulated.
(An “FIR DAC” in this case refers to a DAC that integrates a Finite Impulse Response (FIR) filter. The FIR filter is often used to shape a digital signal before it is converted to an analog signal. This integration is beneficial in applications where precise control of frequency response is important. And so this is certainly the case with the MU2)

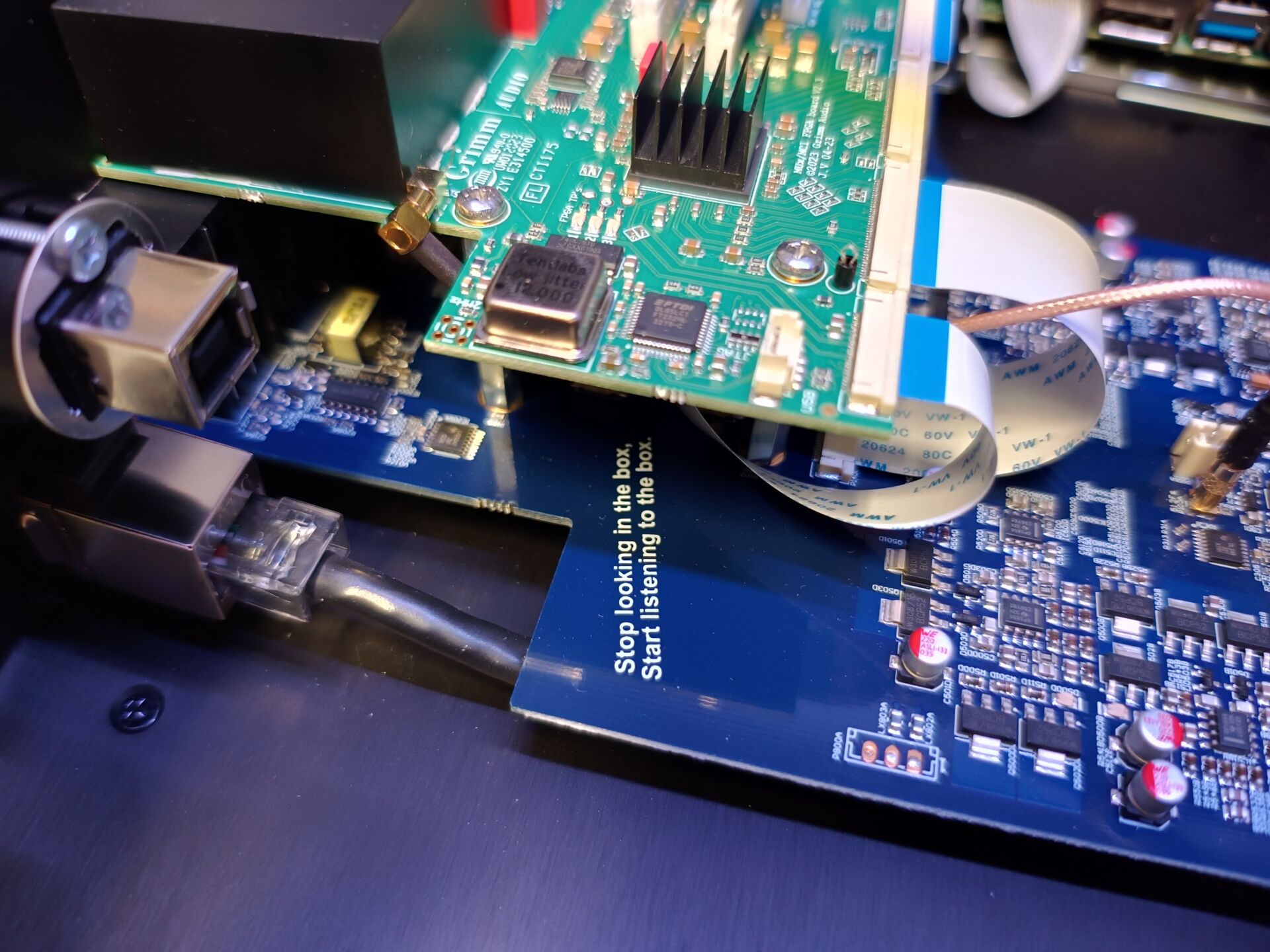

The whole thing is clocked with Grimm clocks. Obviously the best they have in-house. Each clock – we know – is measured separately before they go on the PCBs. So it is really hand selected.
Too good to be true… right?
This story may sound like too good to be true. That’s kind of how we thought of it, too. After all: the audio world has been digitizing audio for more than 40 years. If this is the egg of Columbus, it must have already been found by a major company, right?
The fact is: large companies are more often concerned with margin. Not (anymore) with innovation. Unless of course it makes a lot of money… but then we are indirectly talking about margin again.
Technologies like the Major DAC no longer make enough money for large companies…. it’s as simple as that. And so it is that a – relatively – small company like Grimm can come up with such a design. Pretty cool, right?
