Measurements and conclusion
Contents
Of course, we also took some measurements of the Grimm MU2. Now these measurements are not quite complete because we haven’t done a jitter measurement yet. There is a measurement point in the Grimm MU2, but our R&S probe turned out not to be good enough. We hope to add the jitter measurements soon.
Noise measurements Grimm MU2

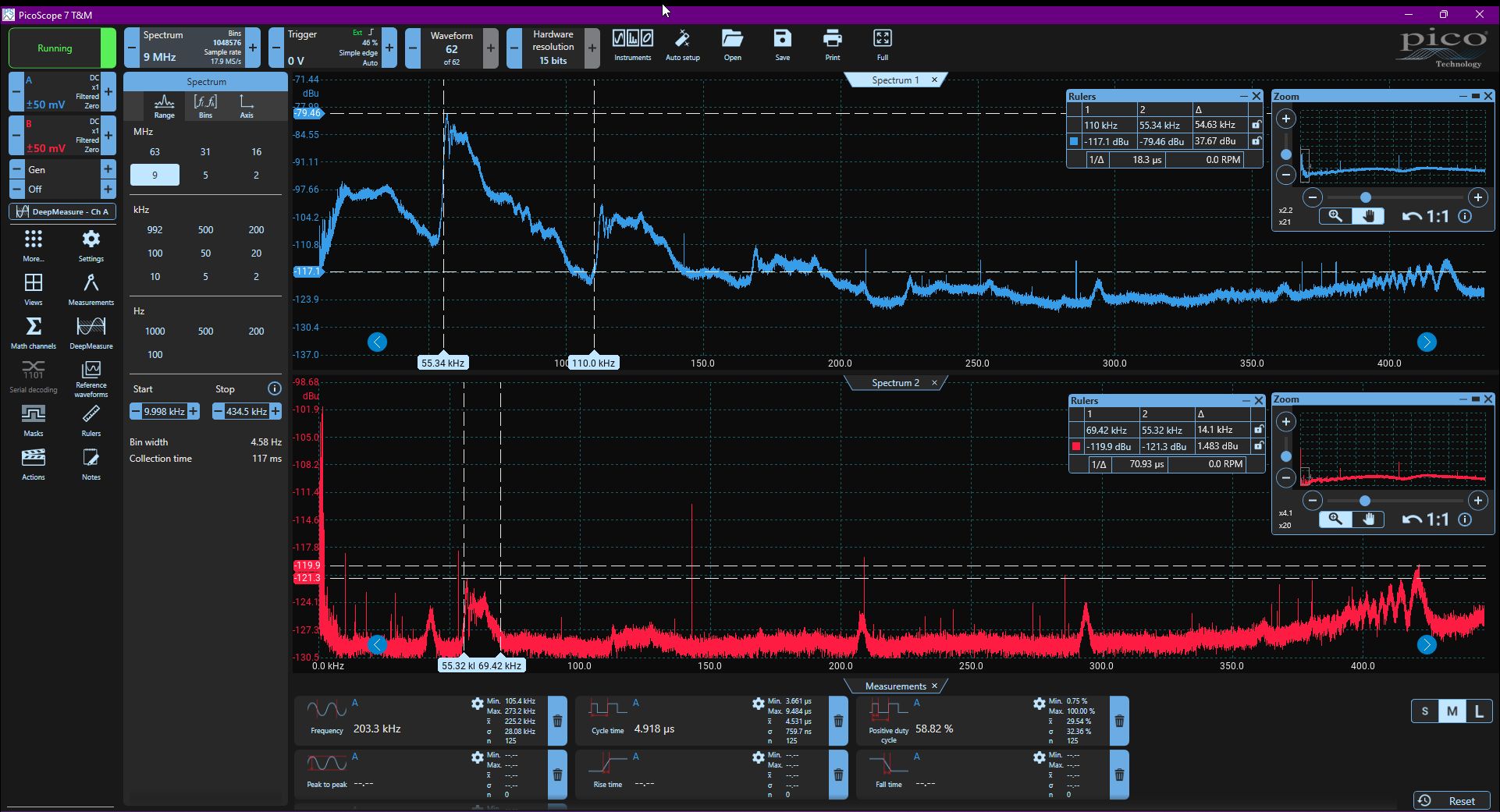

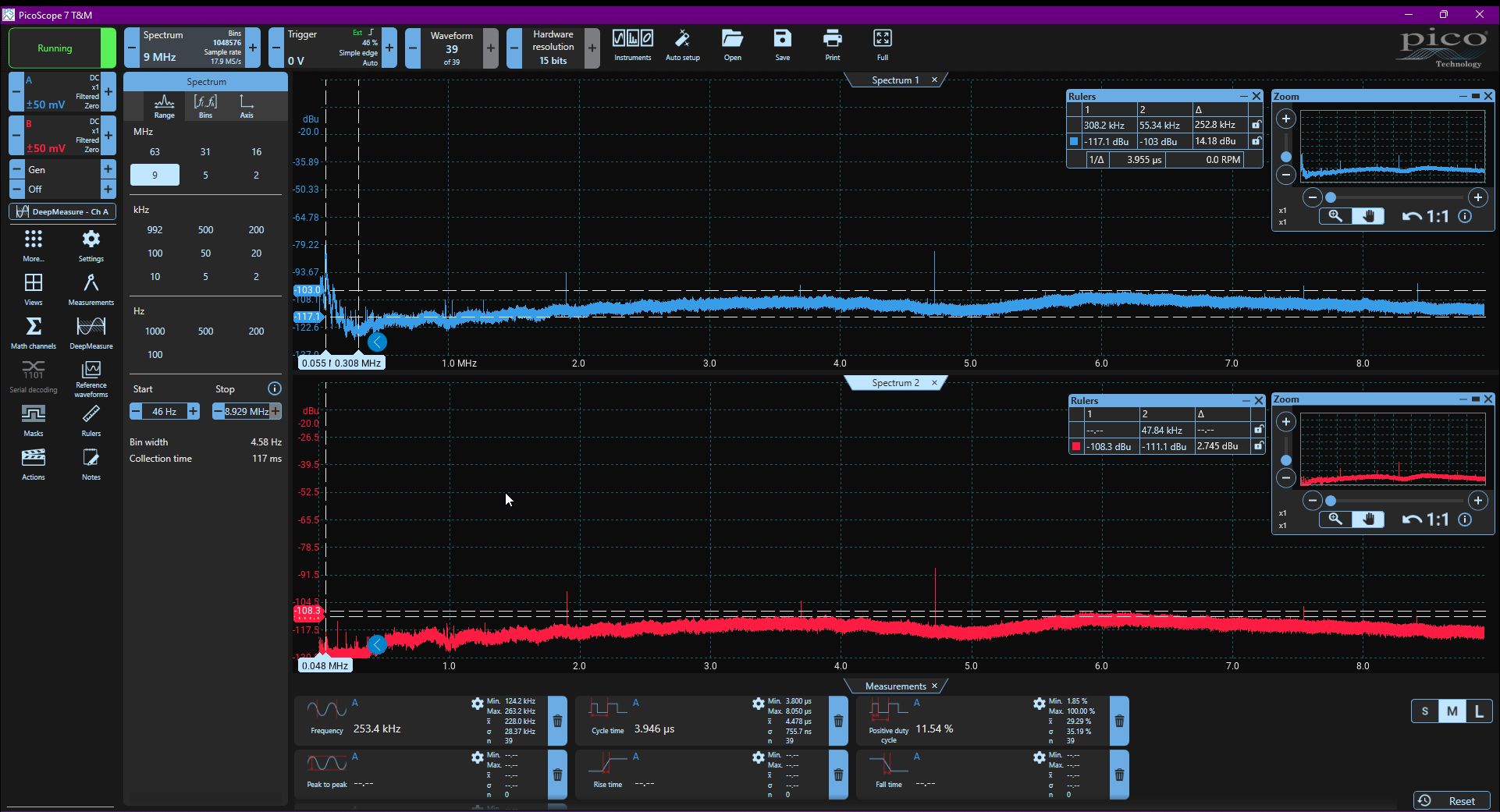

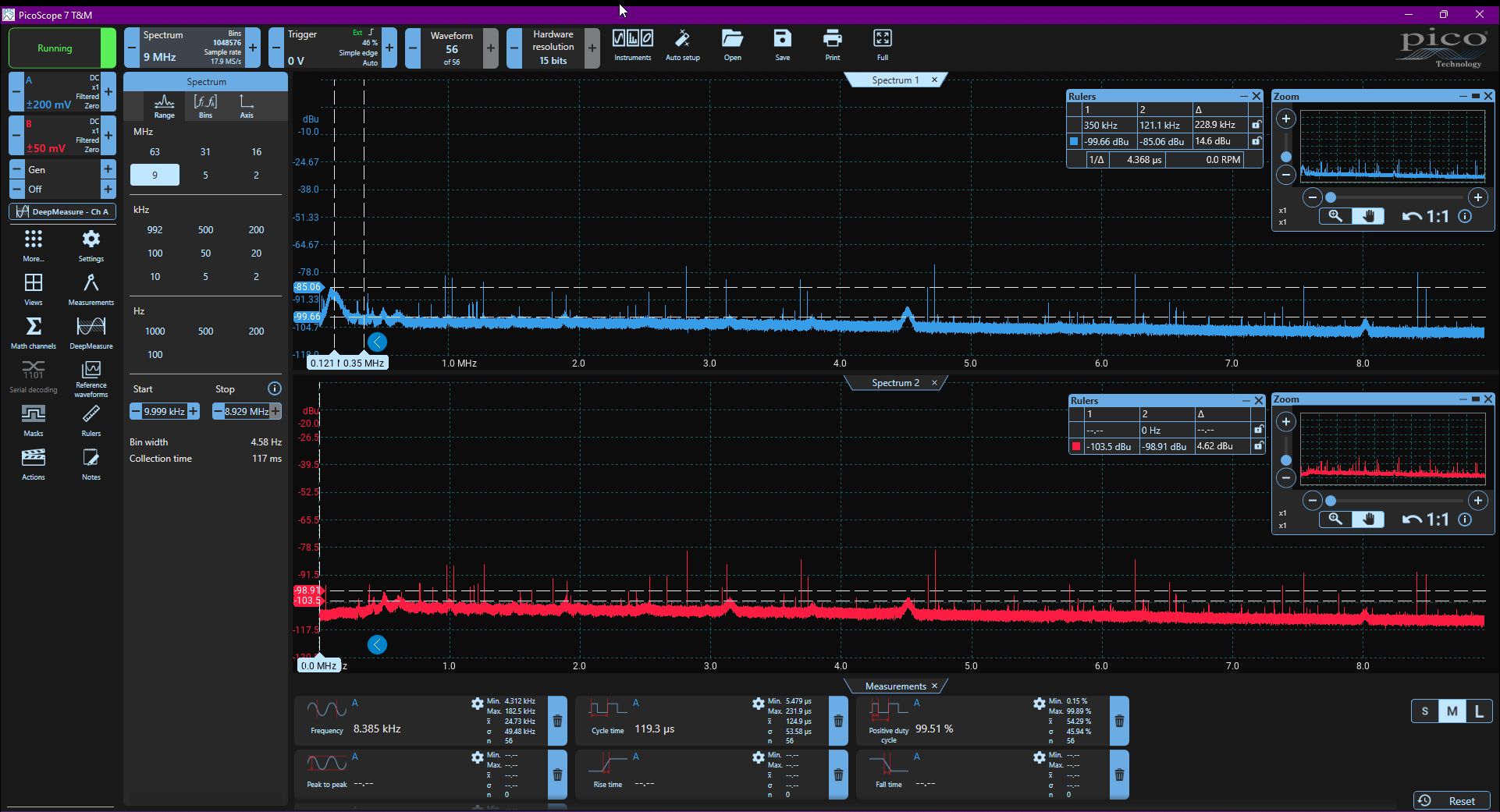

We measured both the noise from the Ethernet port and from the power supply. The Ethernet port is nice and clean. No crazy stuff there. The switching power supply is certainly not dirty with a noise floor of around -110 dBu, but we do see some noise in the low-frequency section. These cause peaks at 55 KHz (-79 dBu) and 110 KHz (-104 dBu). It certainly does not leak through to the analog outputs, otherwise we would certainly have seen it reflected there.
Linearity and noise Grimm MU2
D/A converter

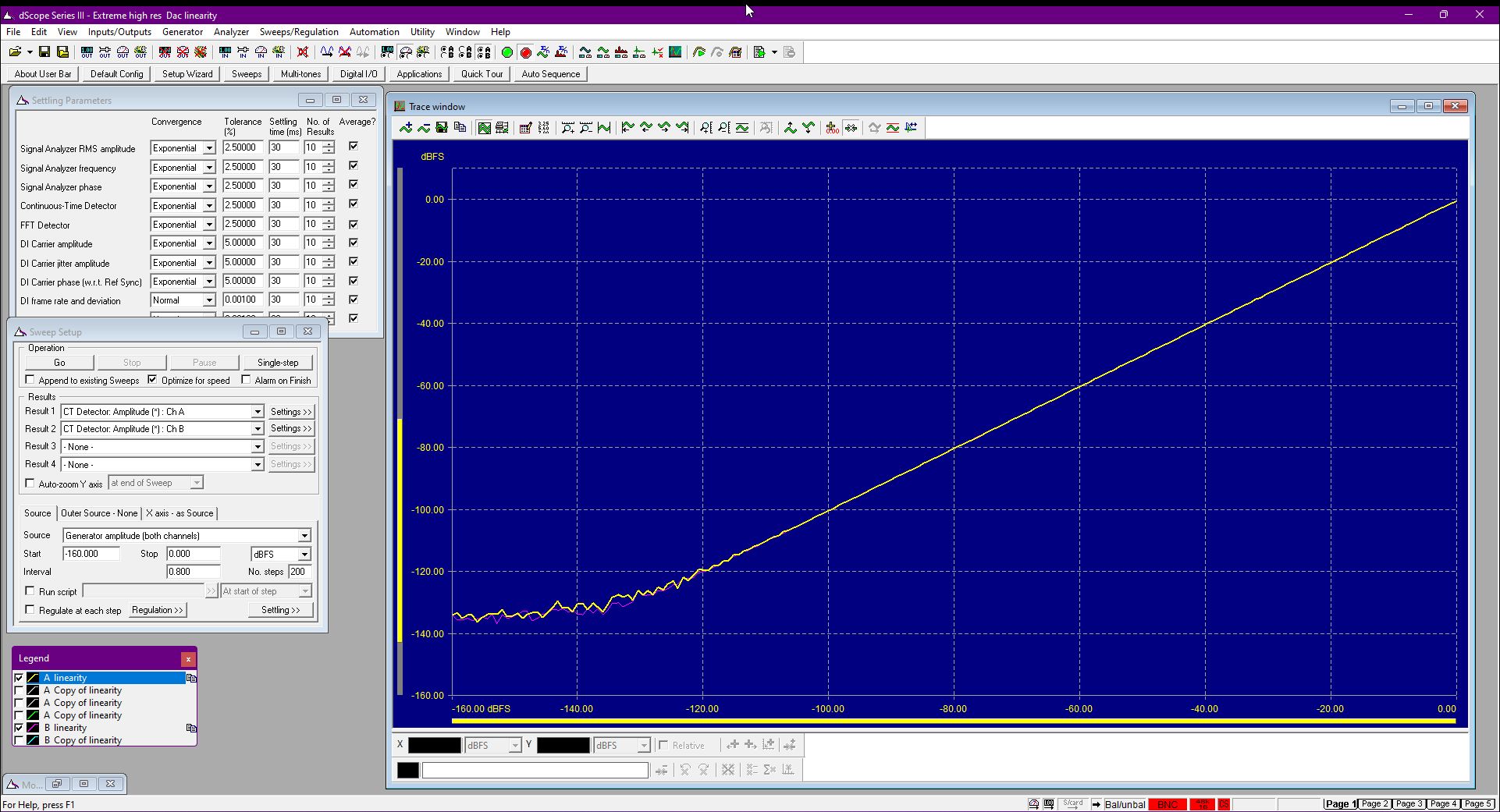

We already had an inkling that this Grimm MU2 would score well. We see a nice linear behavior and neat noise and distortion values. The linearity measurement shows that from -130dB the MU2 picks up. The Prism doesn’t get very much lower either, so it may well be that the MU2 can go deeper, but we simply can’t measure it with our Prism dScope.

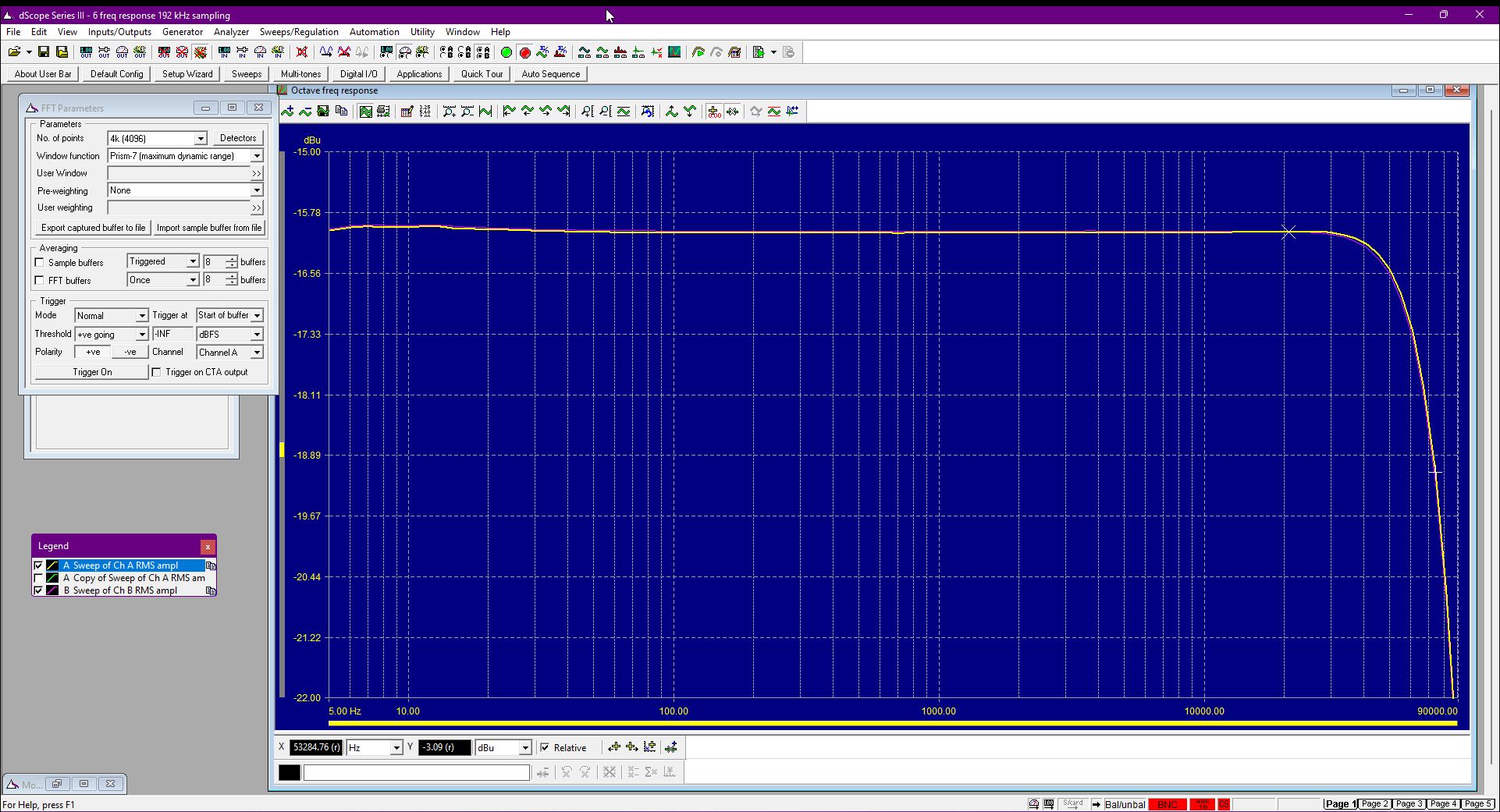

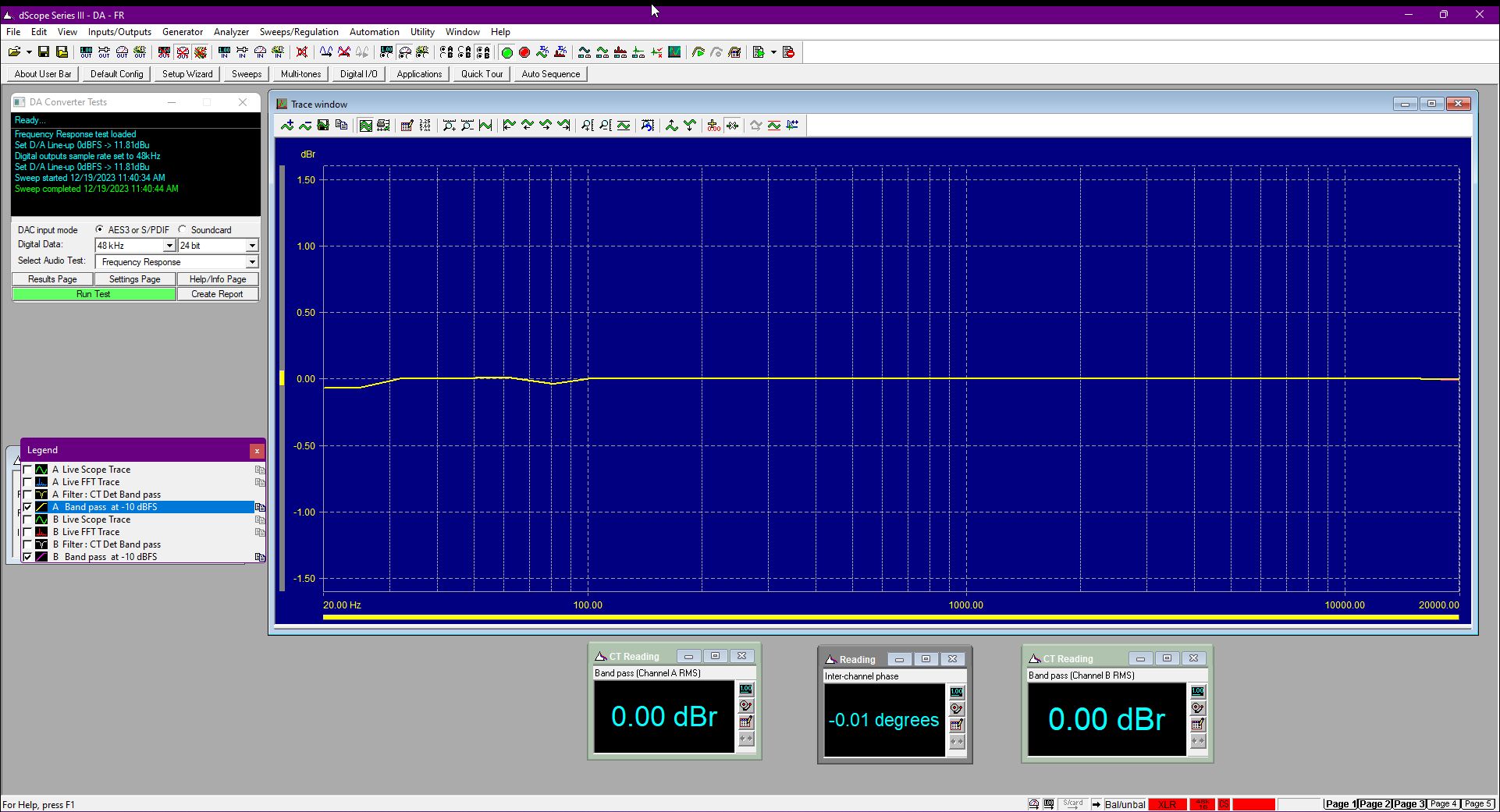

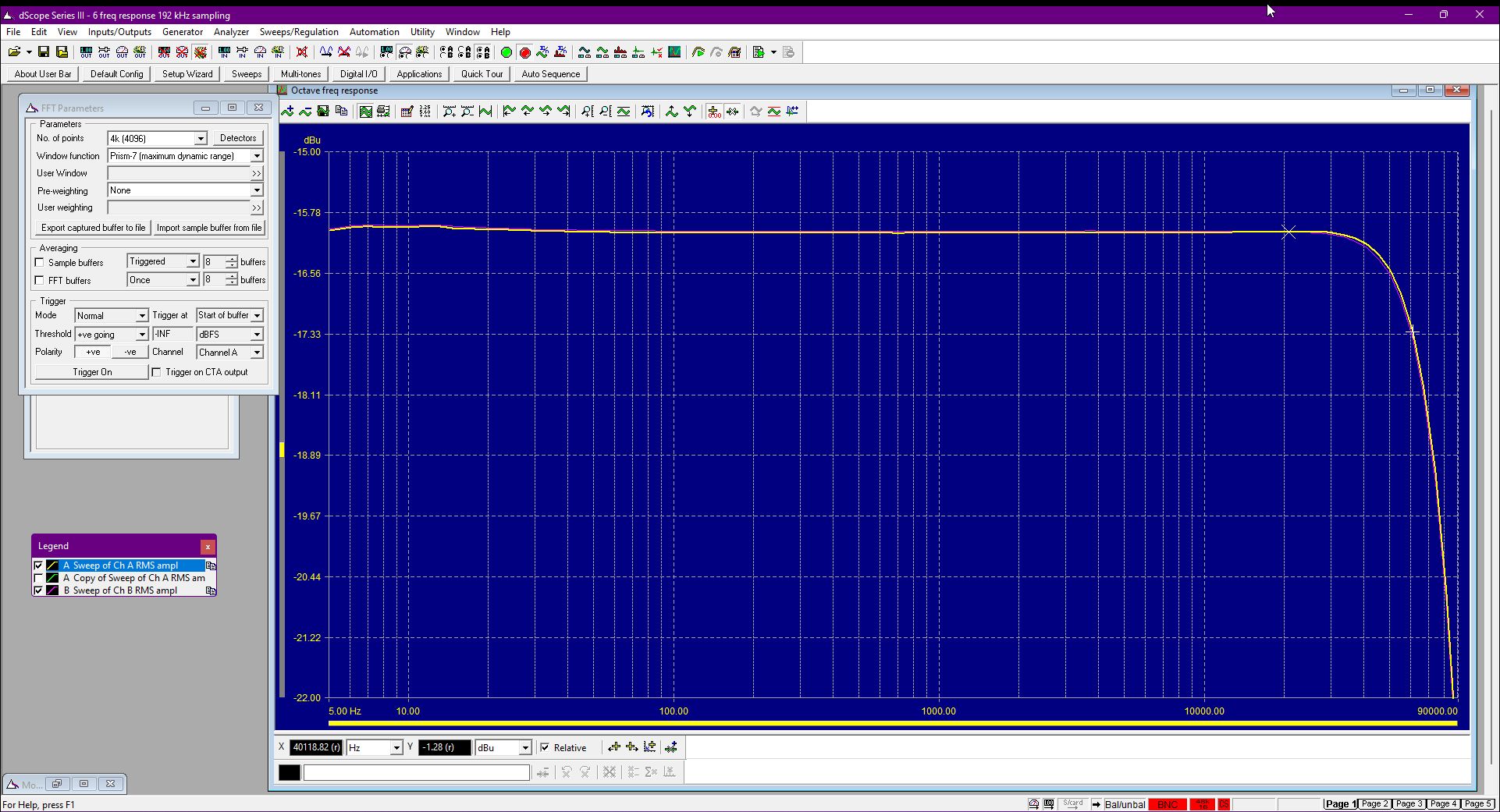

The frequency response is dead straight up to 40 kHz after which we see some rolloff. At 60 kHz we see -1.3 dB approximately.

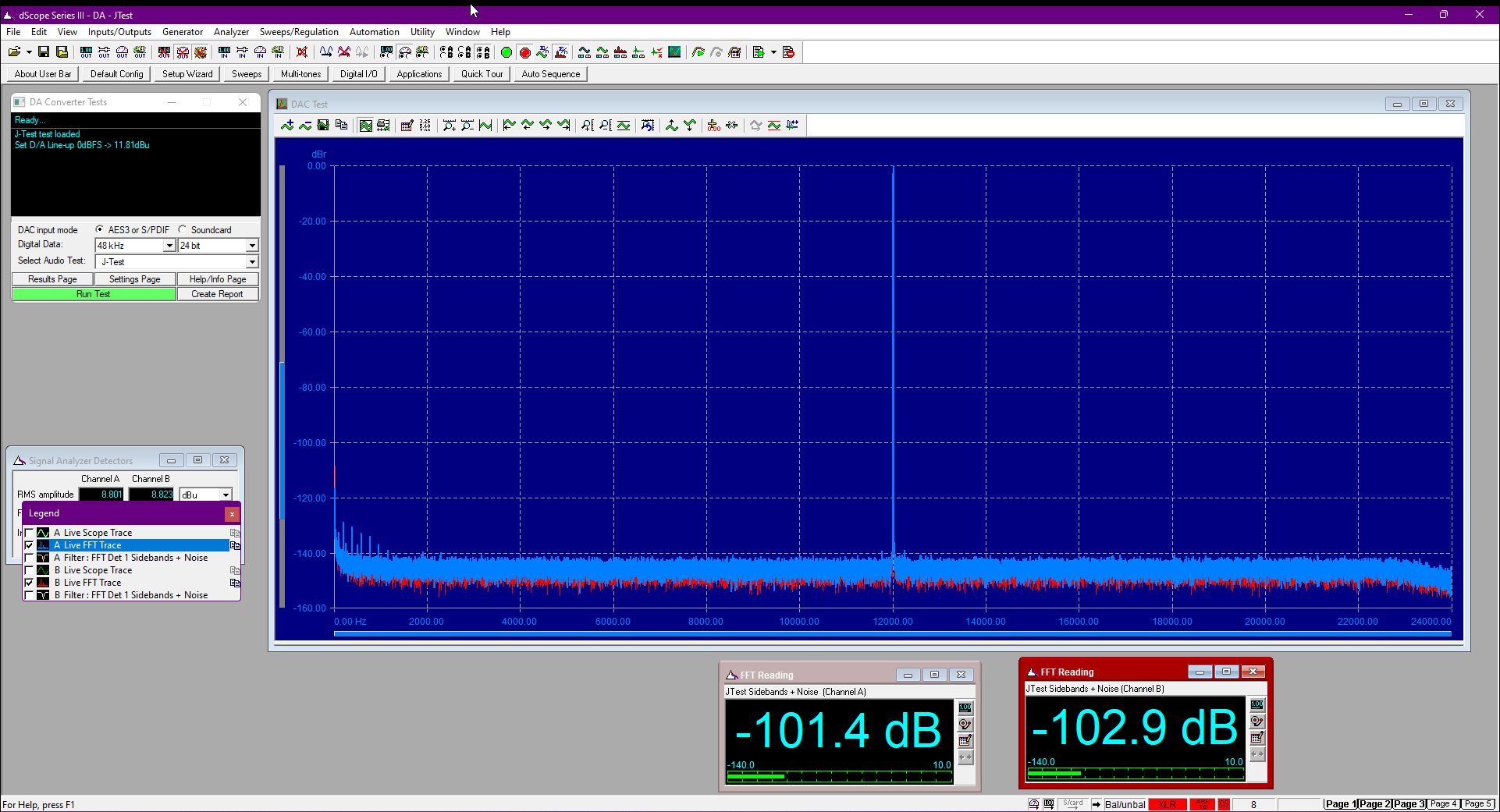

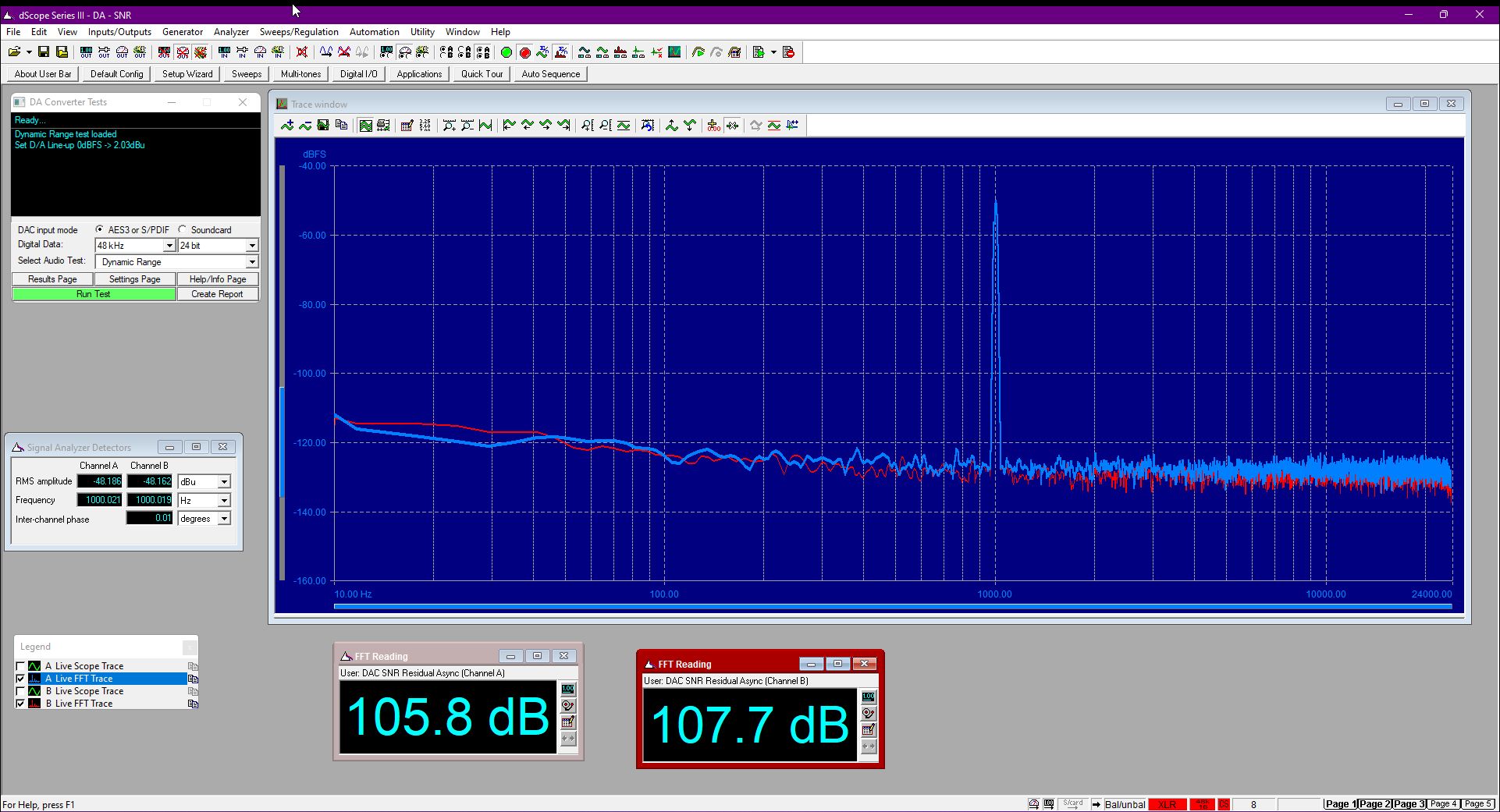

Looking at dynamic range, we see 108 dB approximately (107.7). This is – we estimate – mainly due to the increase in noise from 200 Hz to 10 Hz. Separate grounding to the Prism did not affect this measurement. This increase – if measured correctly – affects the dynamic range, we estimate.
Note: Grimm has revealed that the output has no capacitor and that they accept a small dc offset. This also explains that in other measurements with more averaging, this rise is gone.

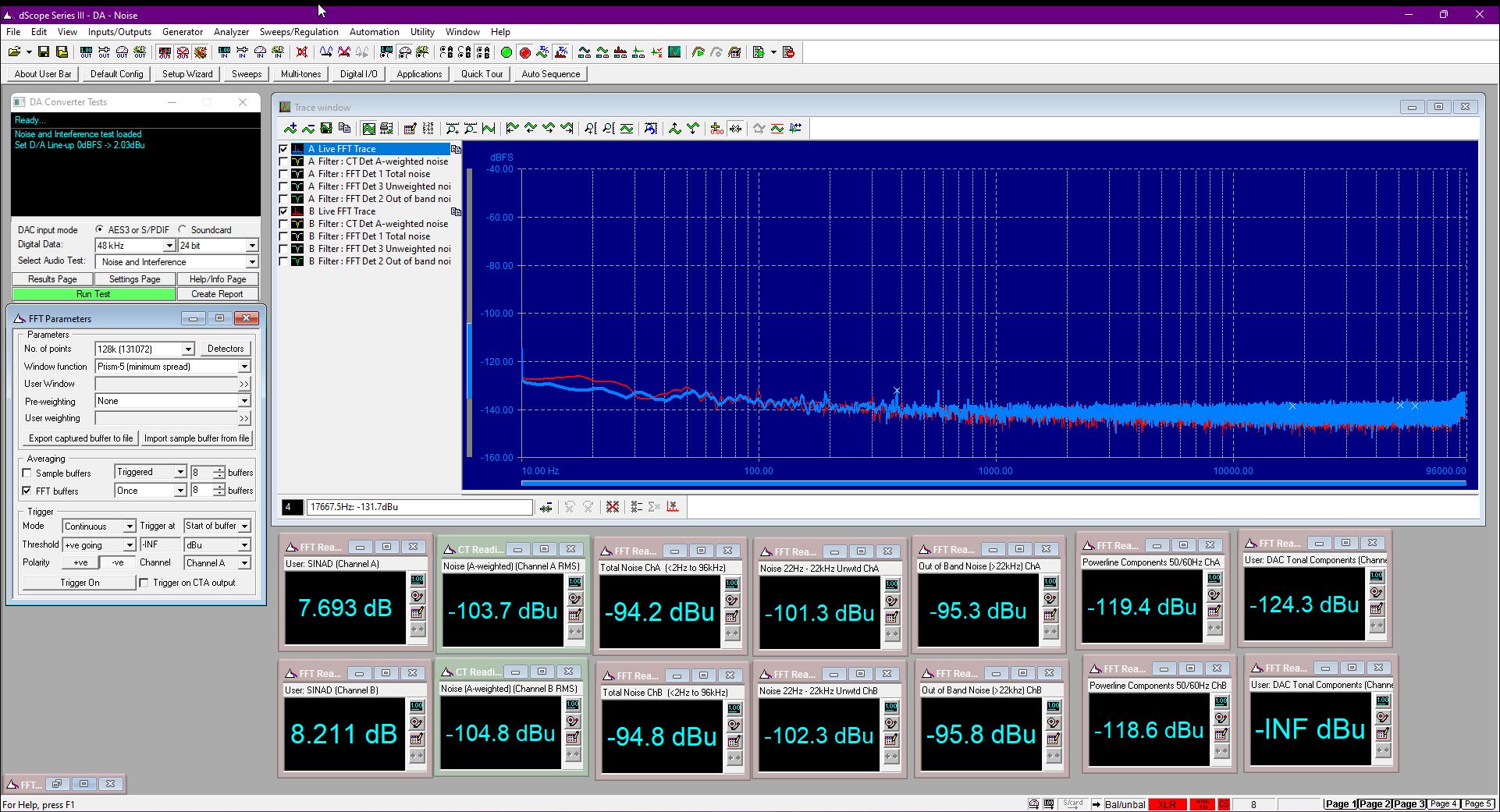

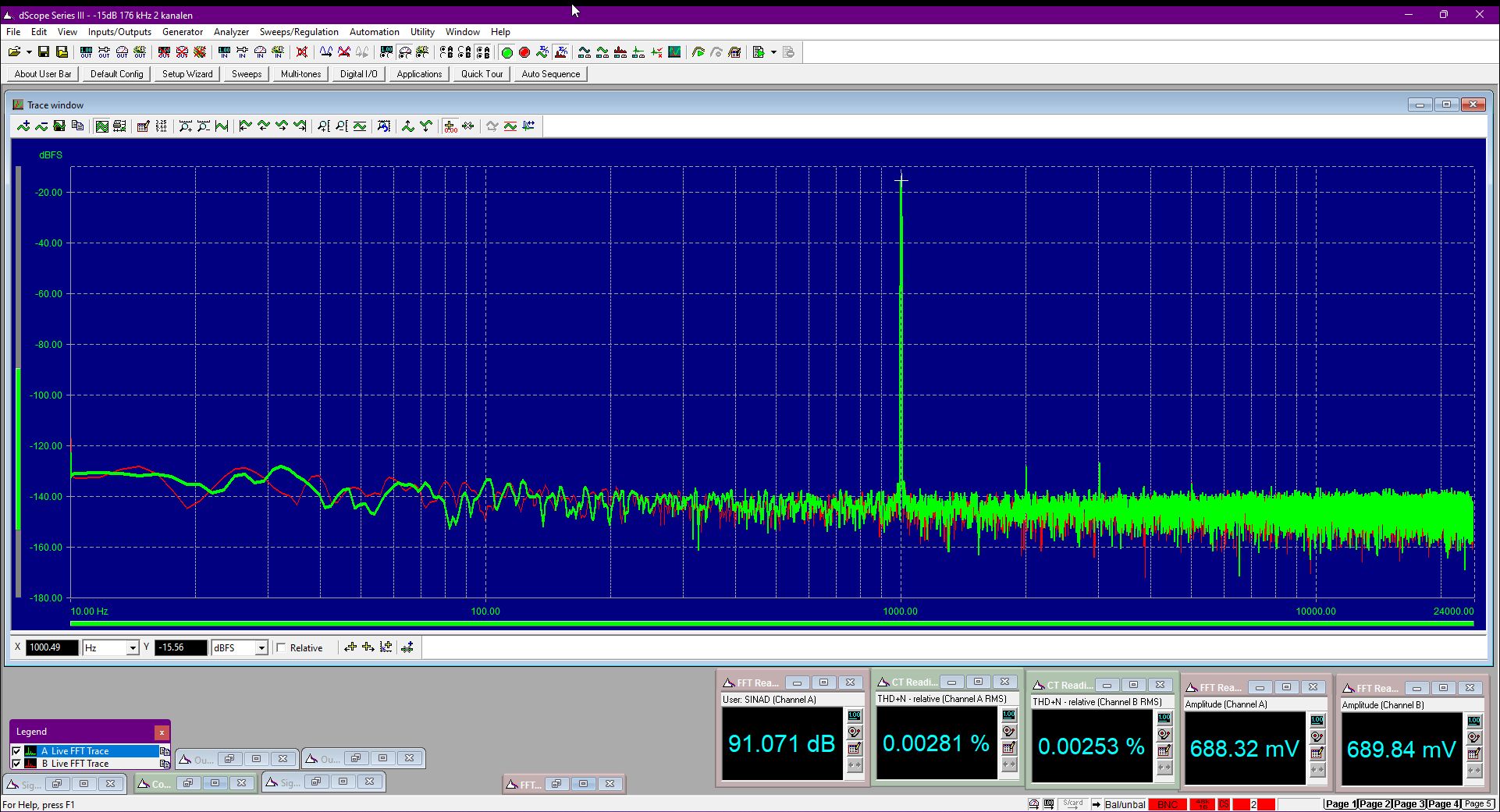

In the noise & interference test we see – because it averages – that the noise there also increases a bit towards the low end: from almost -140dB to -130dB, which are really neat values by the way. Especially considering that the Grimm MU2 also has computers build in! These high-frequency components, also emit noise. The fact that we don’t see these anywhere is impressive.
In another noise test, we see similar values to the noise / interference test. A noise floor of about -140dB and at 10Hz about -130dB. So those do seem to be correct values.

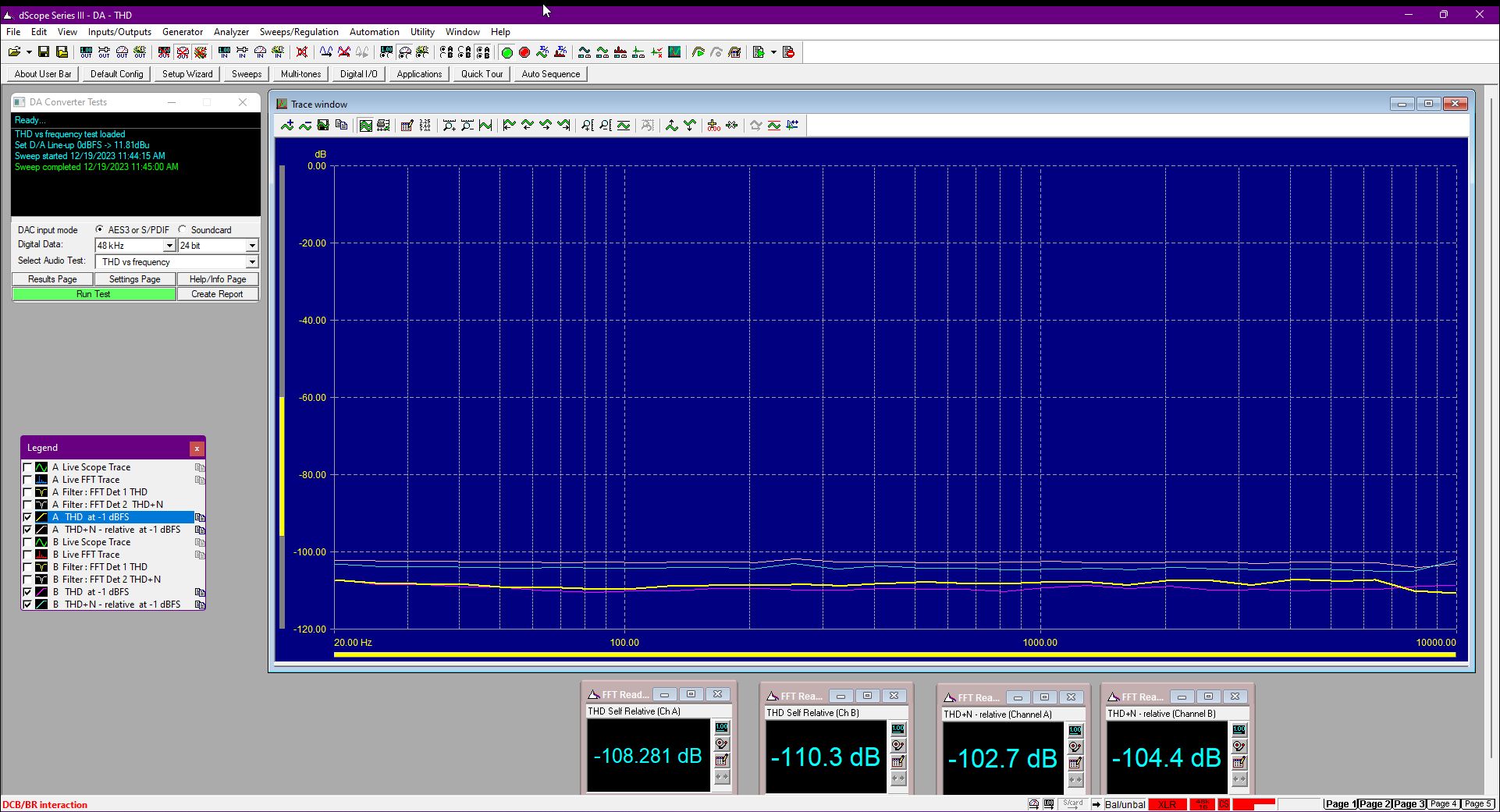

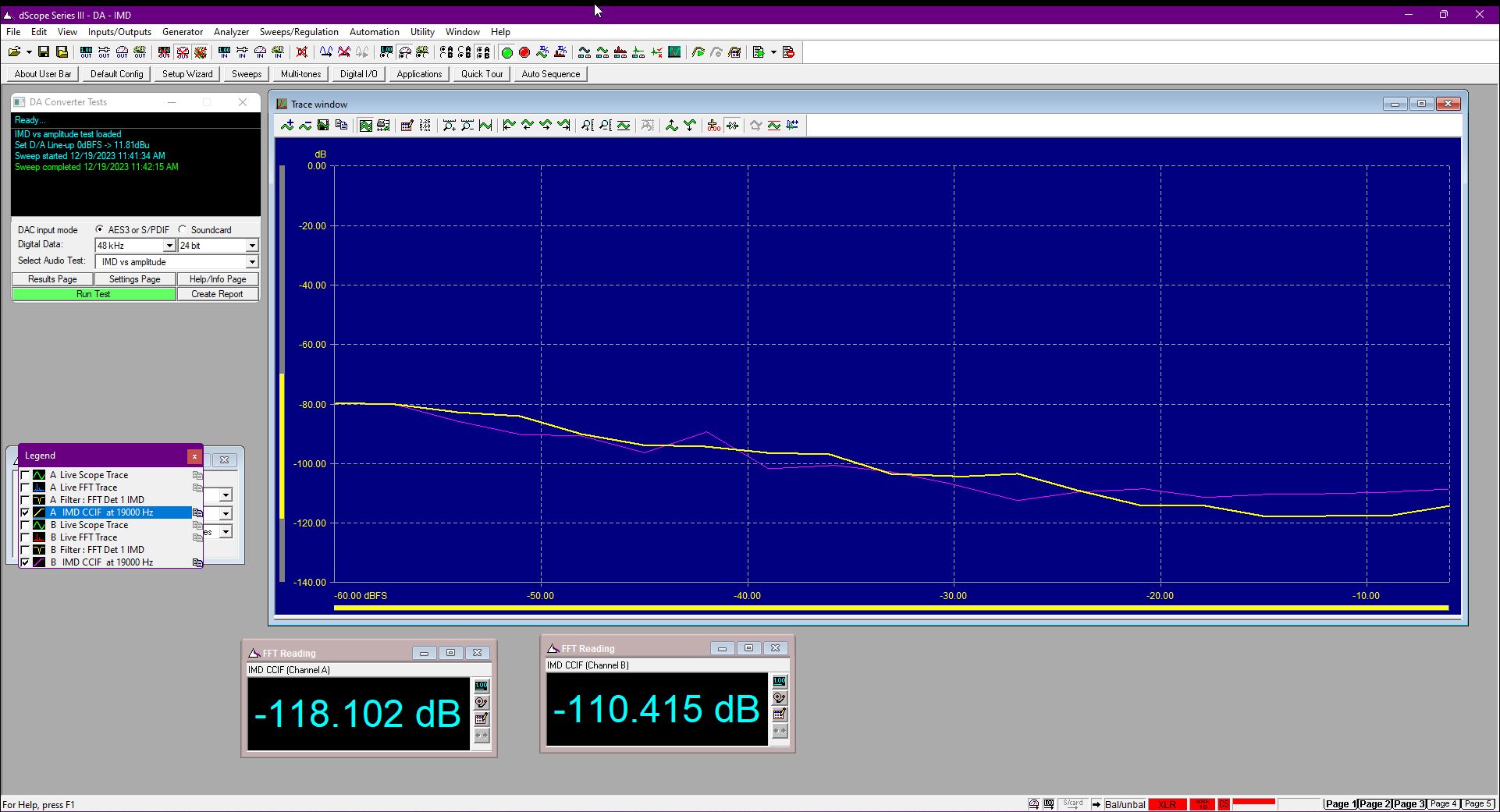

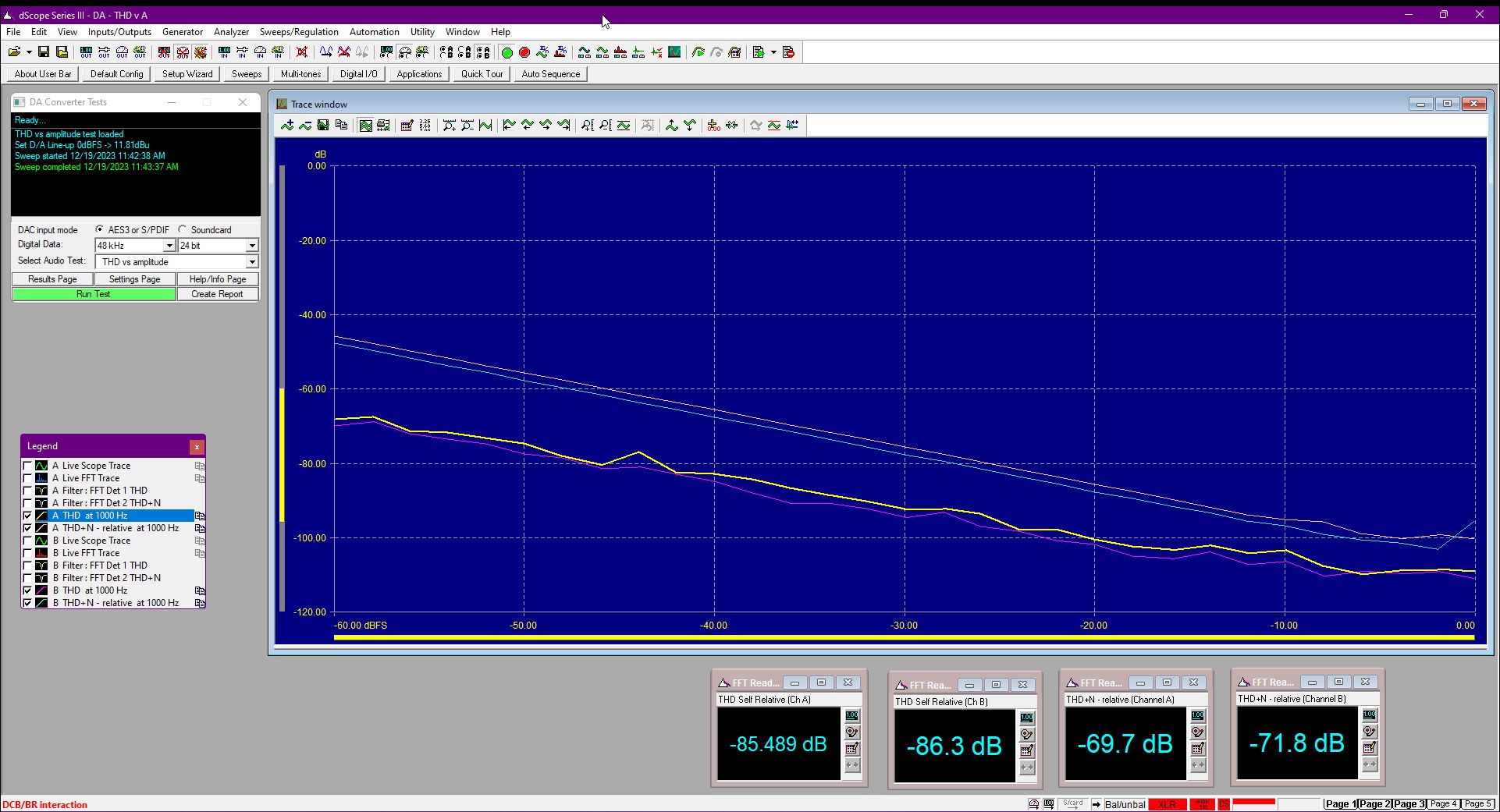

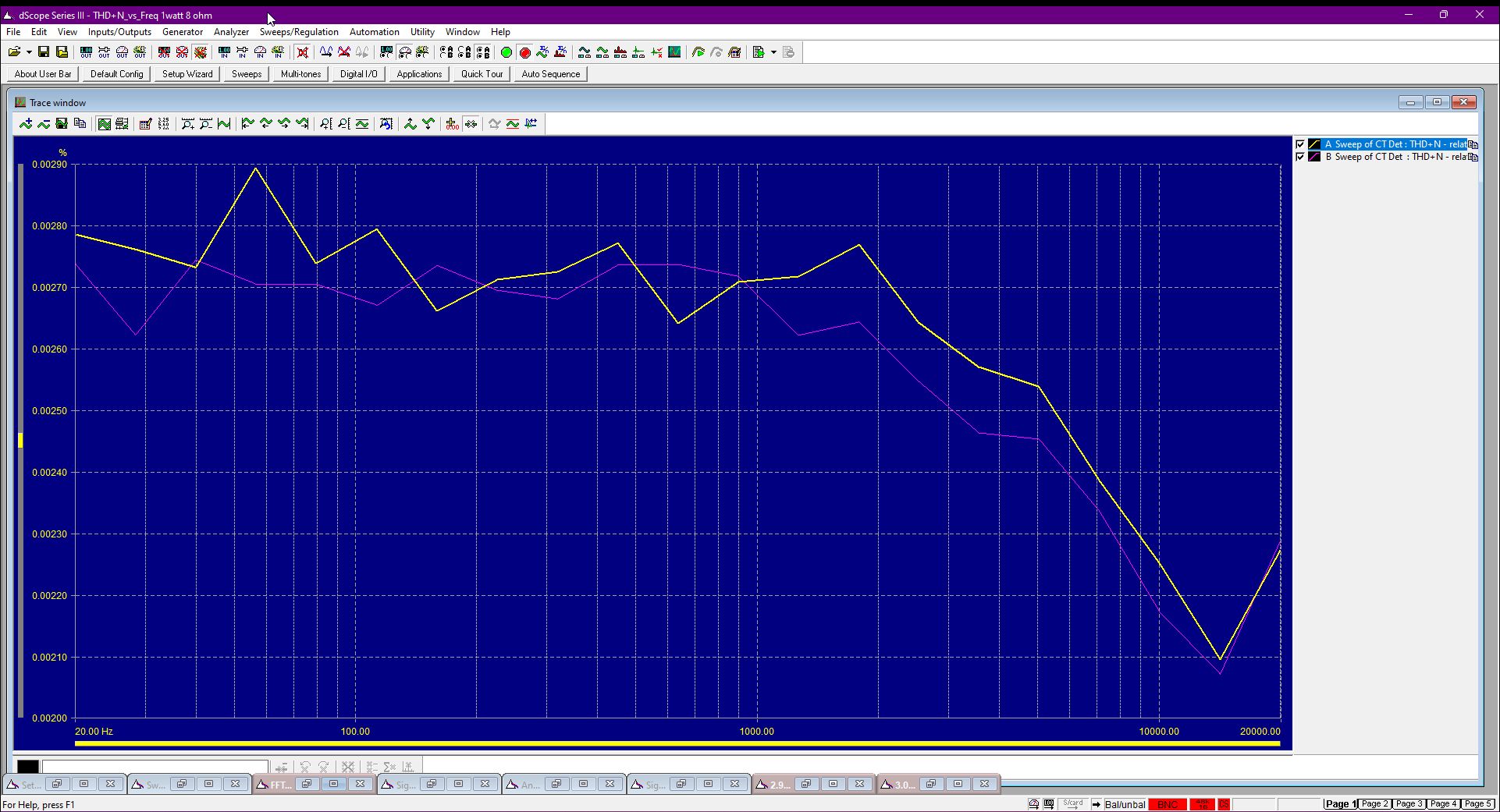

If we then look at distortion measurements, we see only neat values. Both measurements on amplitude (loudness) and frequency are good. In short: Grimm has done his homework.
Pre-amp
Looking next at the analog pre-amp, we are primarily interested in the response and phase. After all, we have already measured the noise floor through the digital tests. It hovers around -130dB in our measurements.

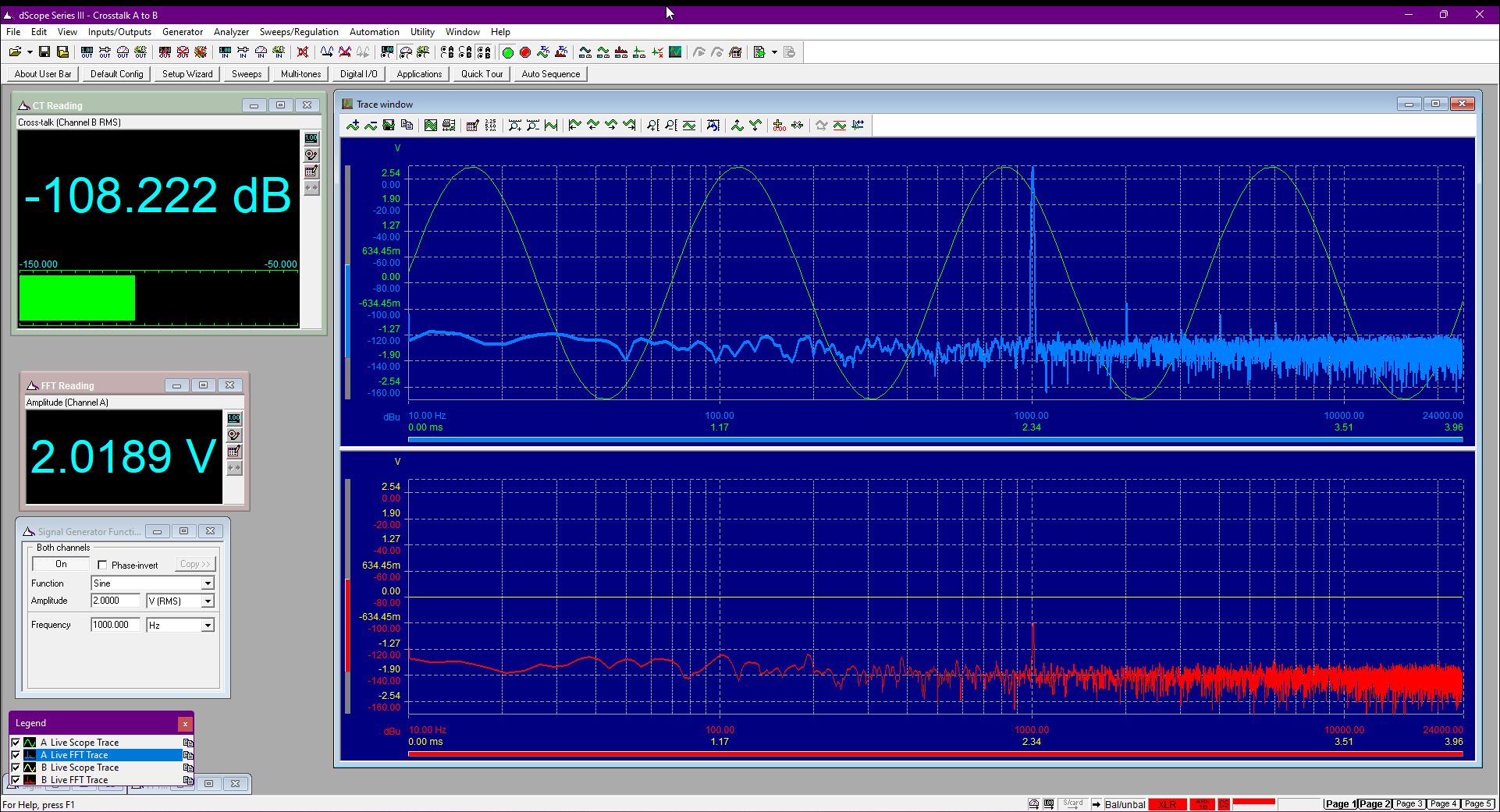

The channel separation is around 108 dB when we enter analog and leave analog. These are decent values. Many power amps don’t reach those values. So no weak link here!

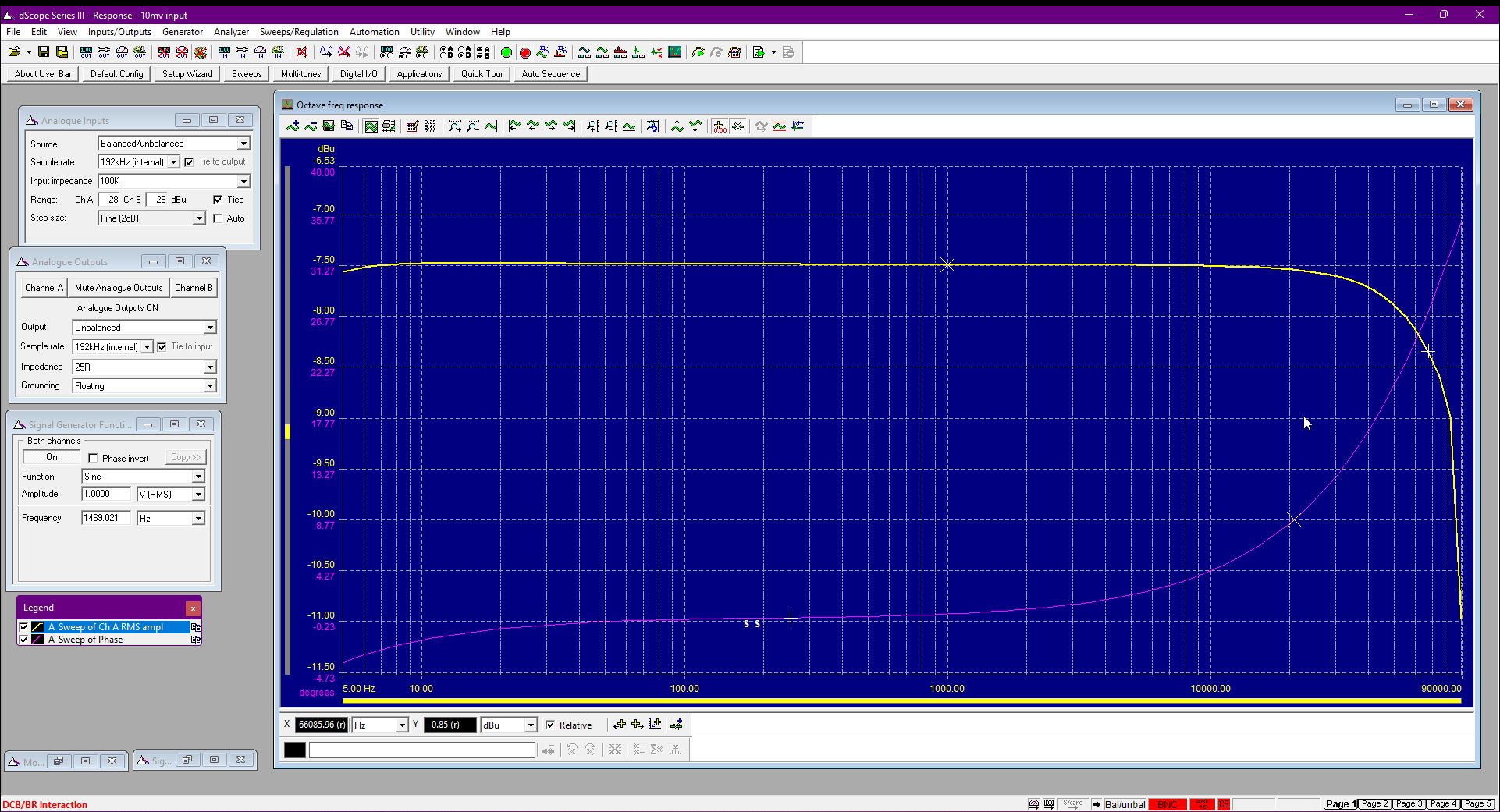

Response and phase is also fine: we see less than 1dB rolloff at 70 KHz. That indicates a lot of bandwidth within this MU2. Phase is 8 degrees at 20 KHz. So that’s also under control. We didn’t expect anything else.
