Transparent
Contents
| Cable | Transparent MusicWave and Plus |
| Balance low, mid and high | MusicWave: Rich sound and body. Power in bass and mid.
Plus: Plenty of body. Ratio is good. |
| Tone of vocals and instruments | MusicWave: Saxophone and piano are nice. But on the edge. Everything seems to need attention.
Plus: Sometimes the connection between the notes doesn’t seem present. It feels a bit “disconnected”. |
| Stereo image | MusicWave: Great in width. Not super deep. Nice framing.
Plus: Fine, stable stereo image. |
| Rhythm | MusicWave: Energetic. But again… just on the edge…. plus: excellent timing. Just right. |
| Overall | MusicWave: Definitely an exciting cable to listen to! The energy is just on the edge of not getting too much. At least: in our system…
Plus: It’s right, but overall just lacks some soul and ‘schwung’. |

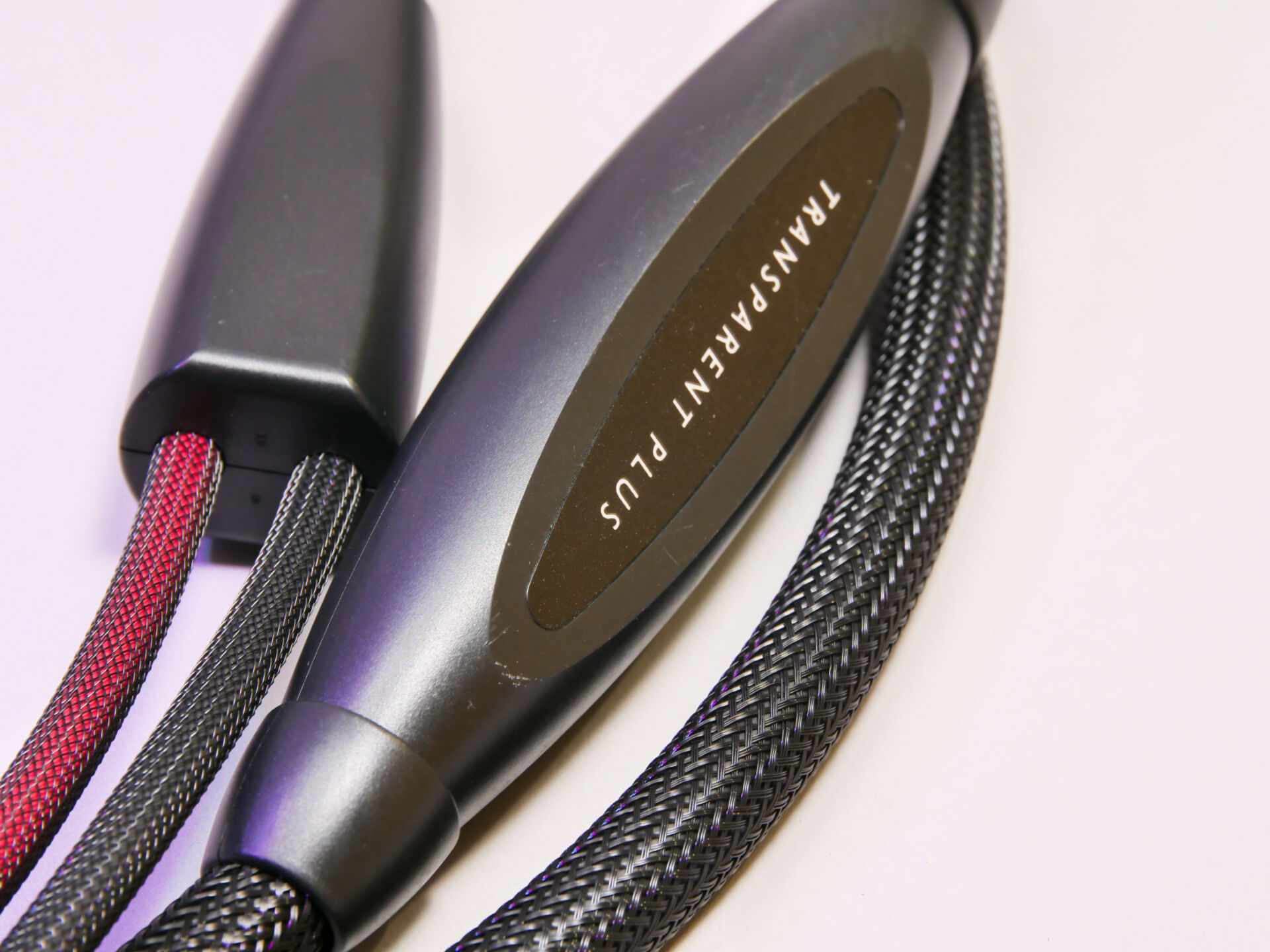

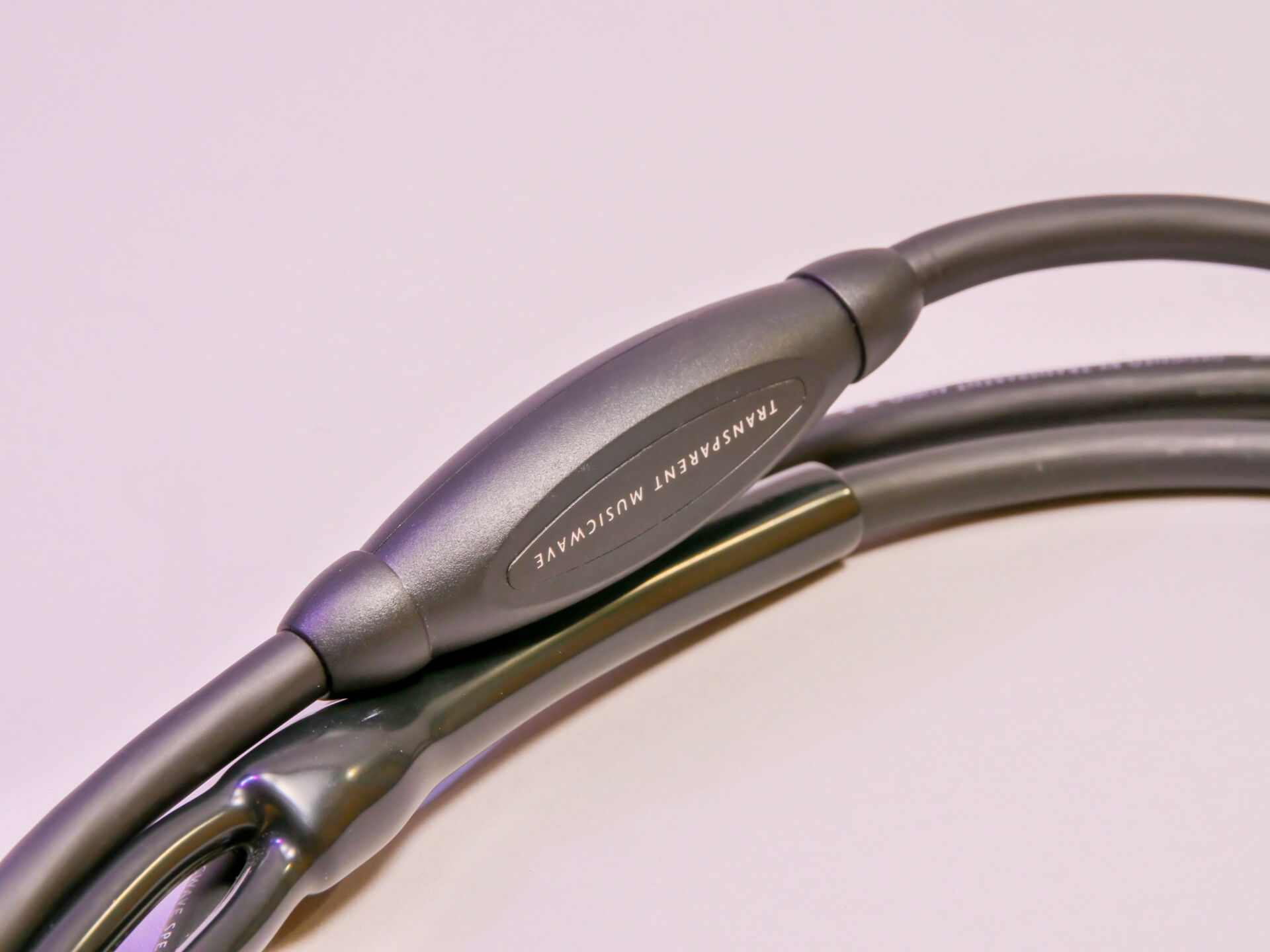

| Material and Construction | MusicWave: ‘active’ system. OFHC stranded cable.
Plus: ‘active’ system. OFHC stranded cable. |
| Price | Transparent MusicWave: 729 Euro, Plus: 1429 Euro |
Measurements Transparent

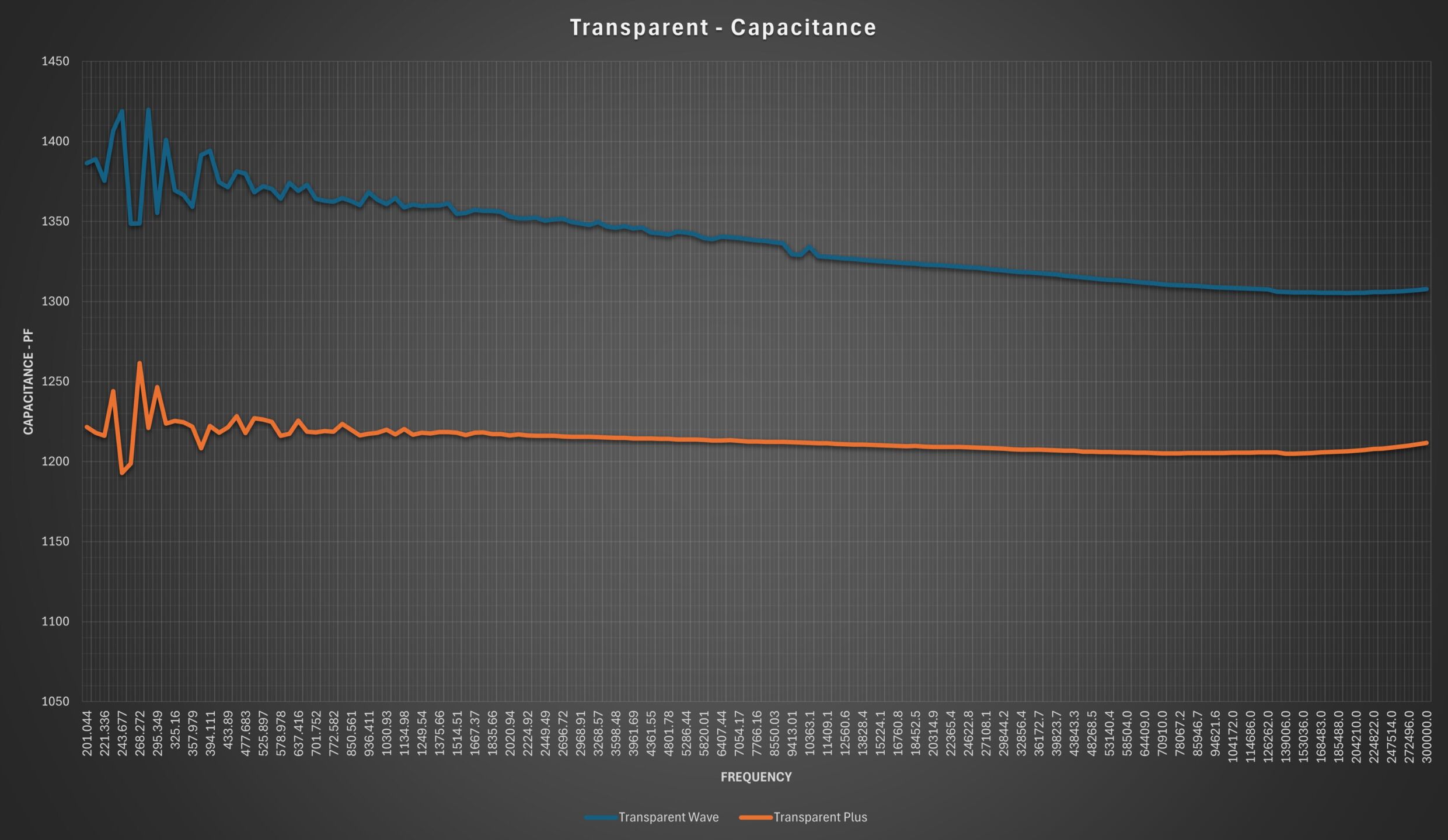

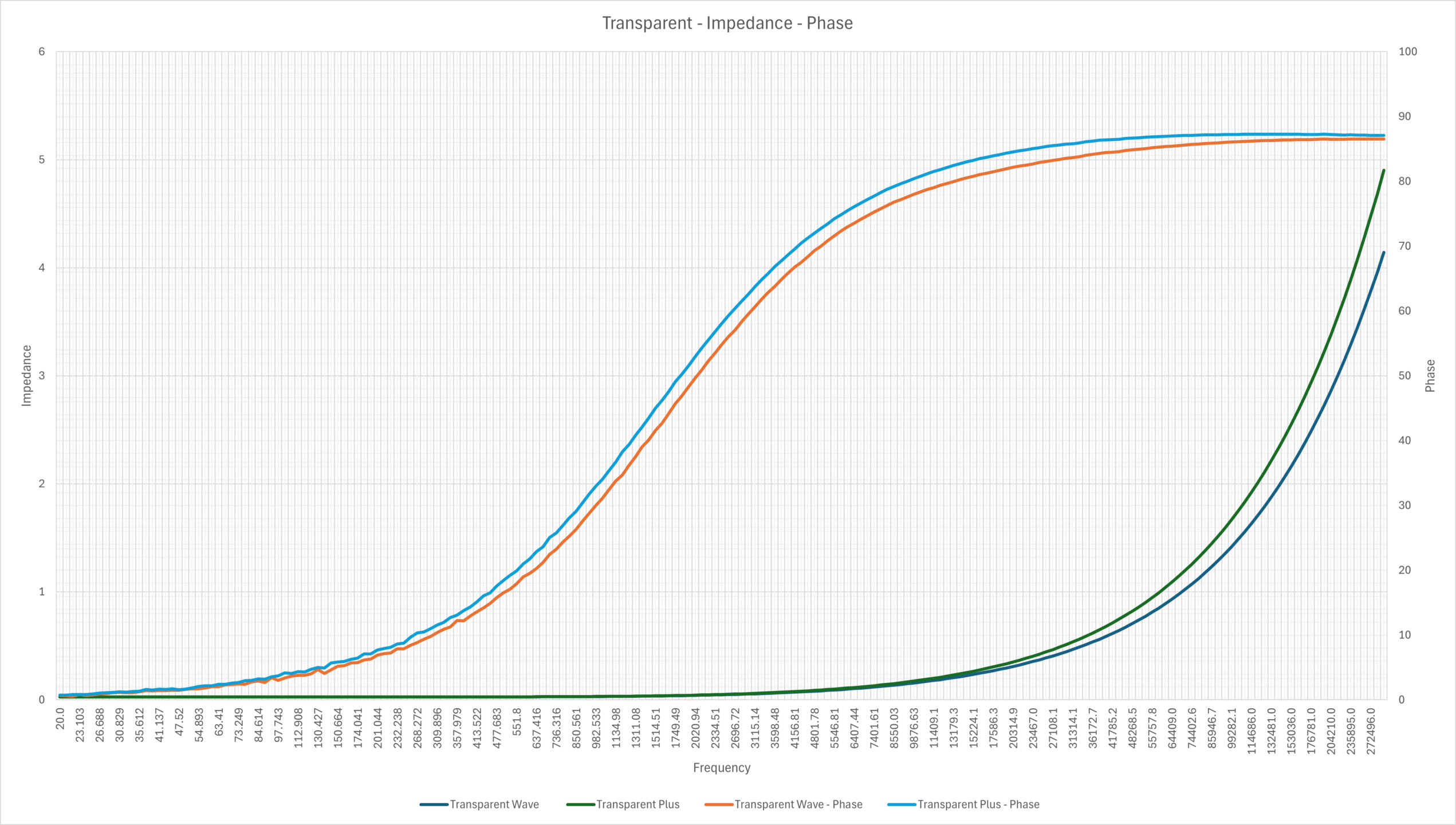

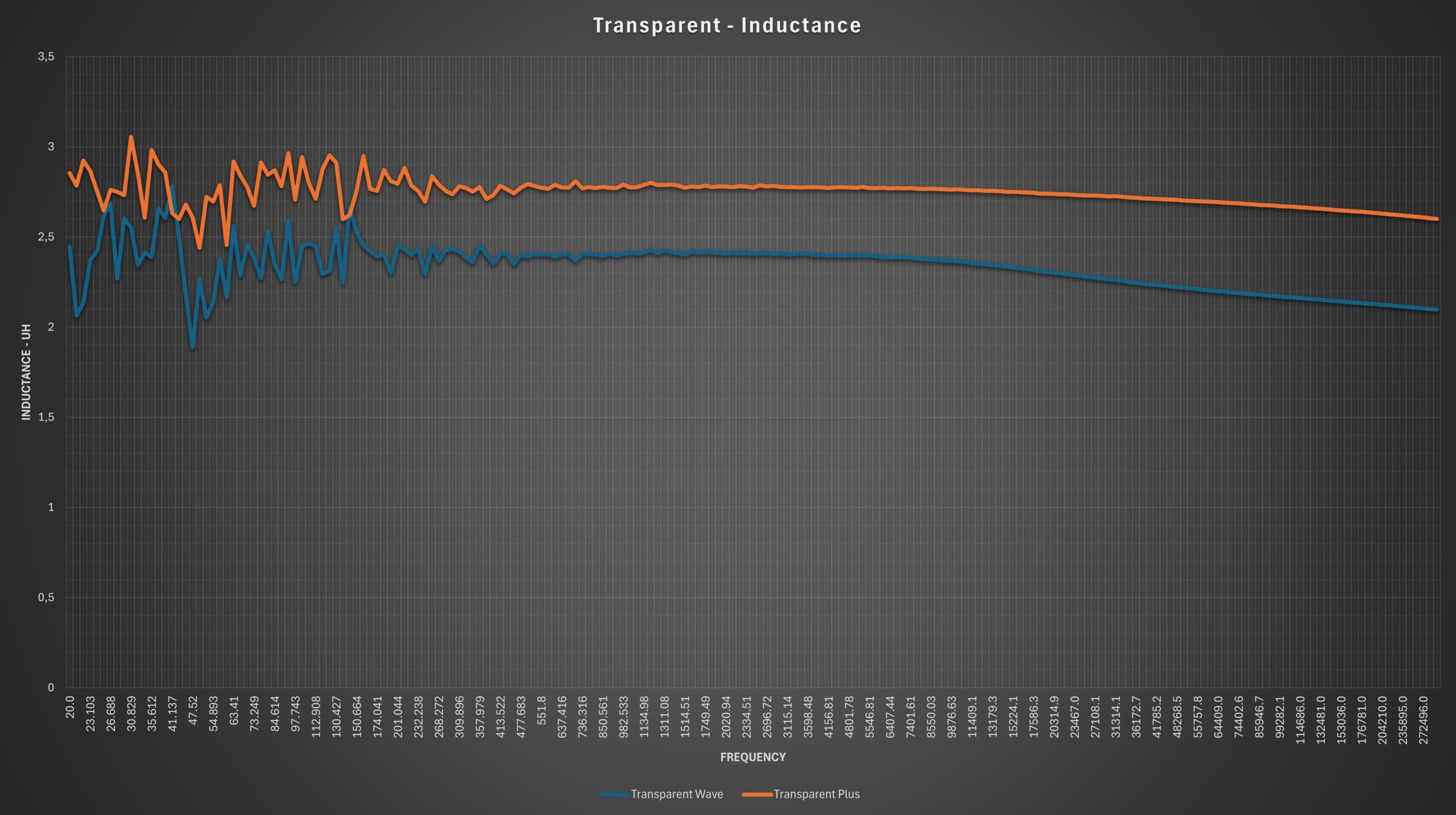

LCR measurements

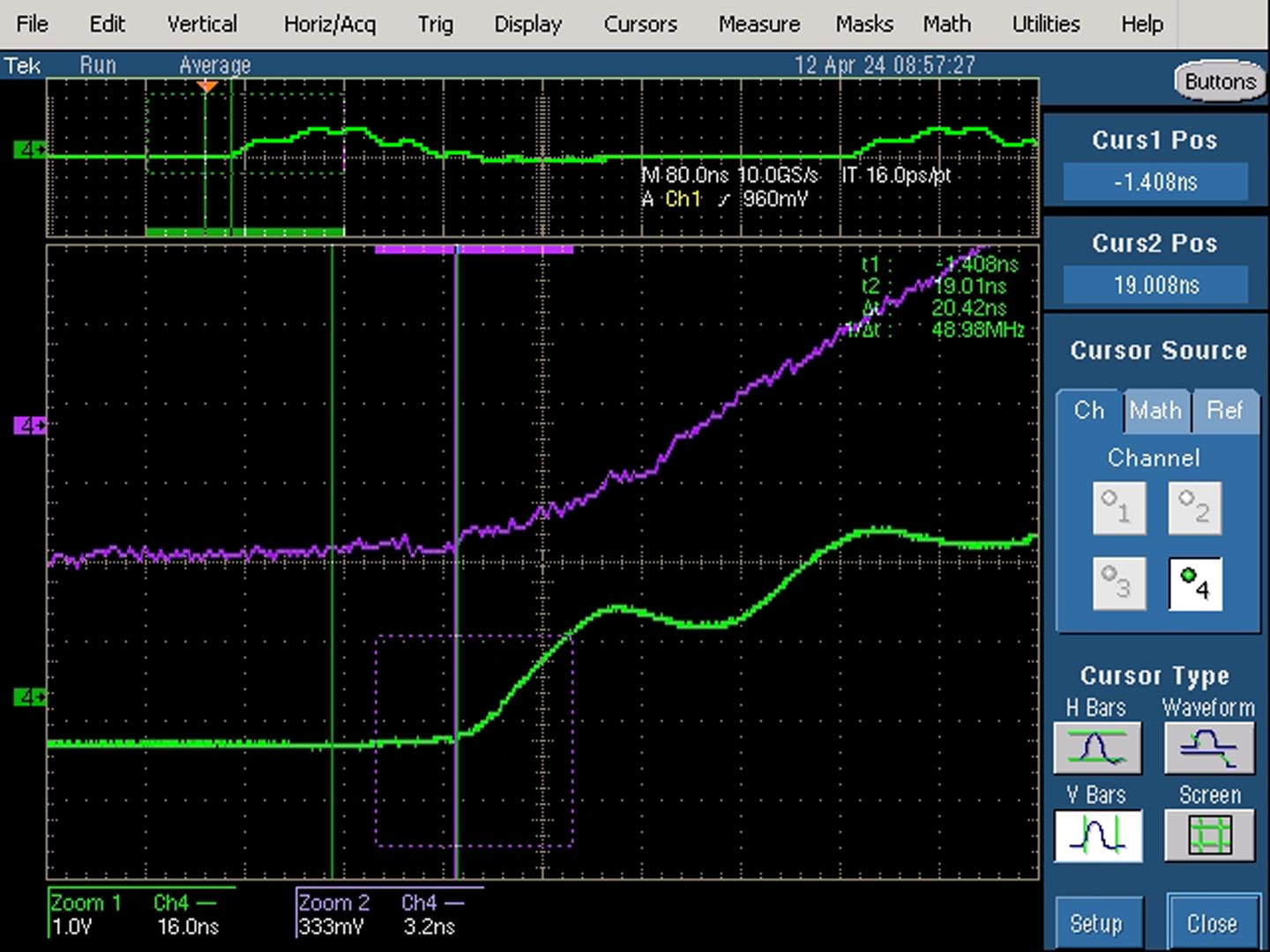

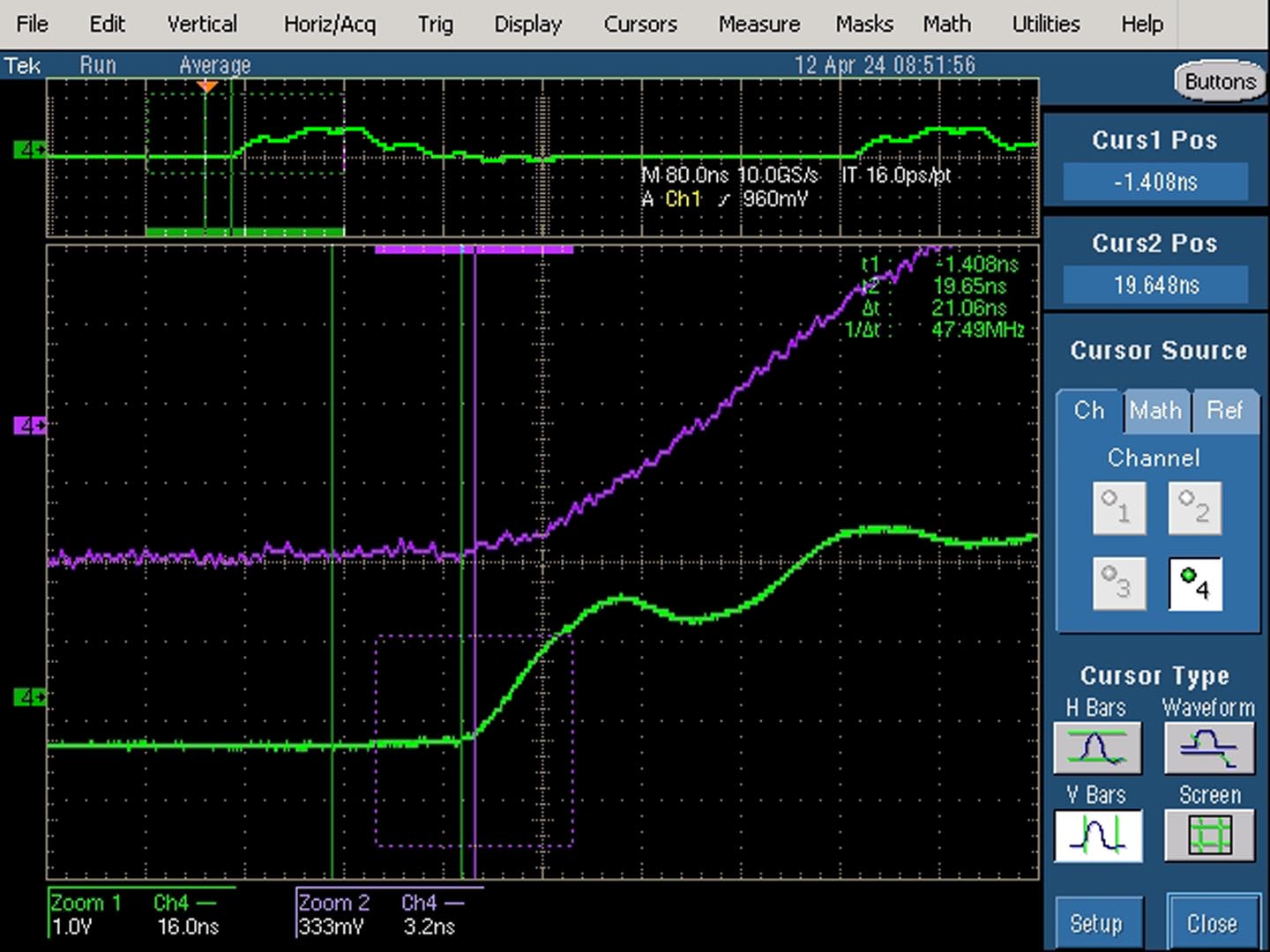

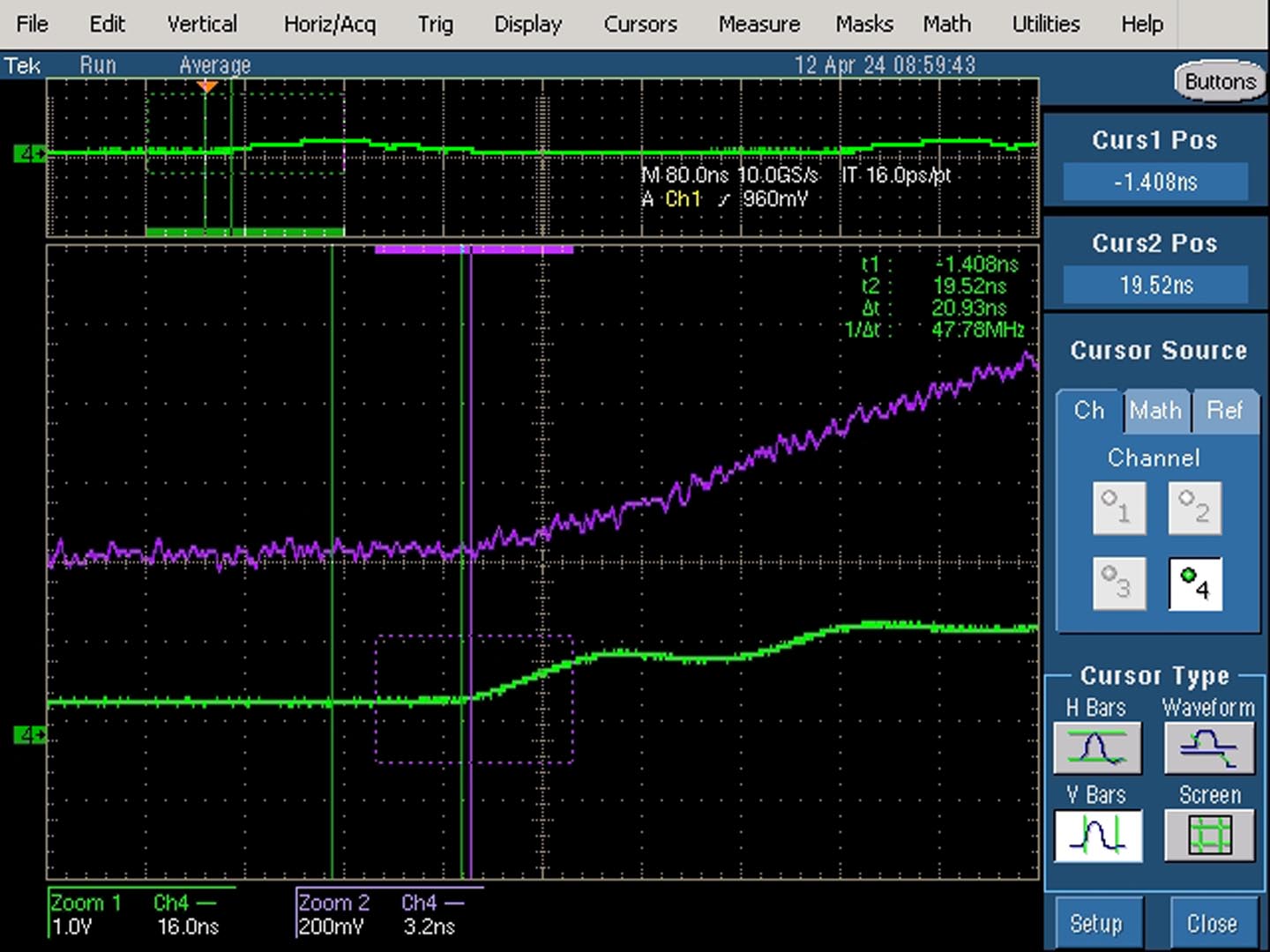

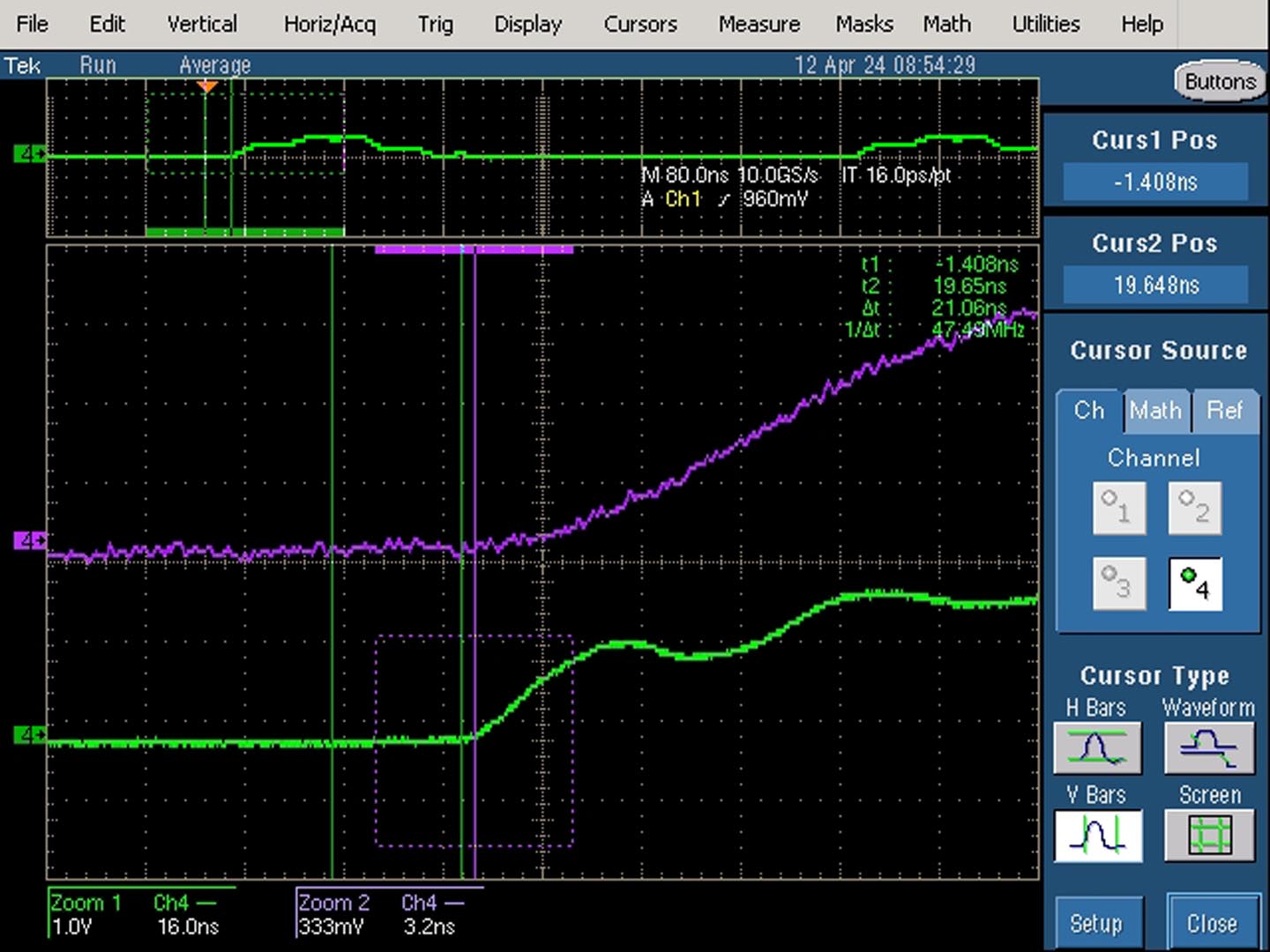

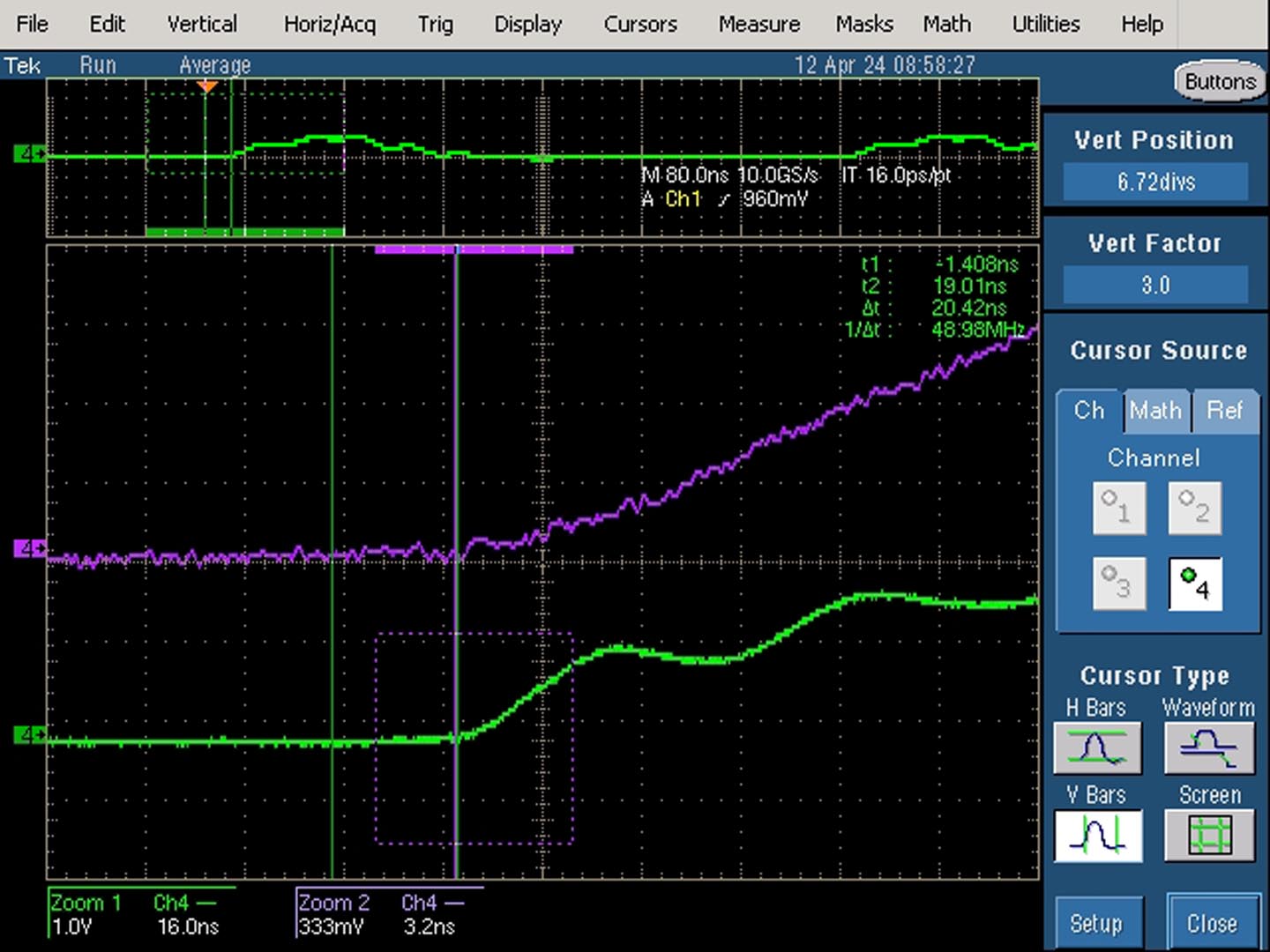

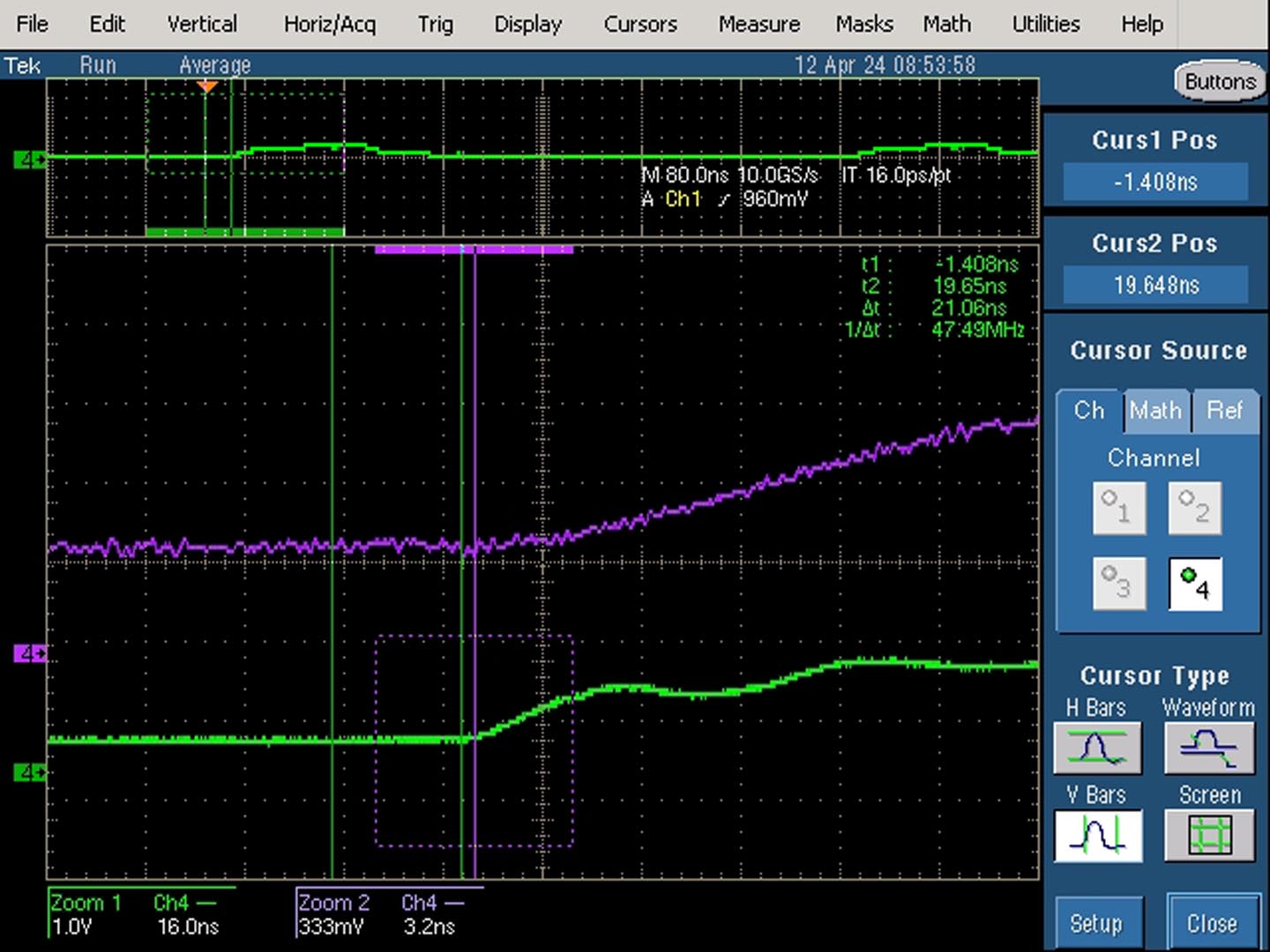

Propagation variation
MusicWave
Plus

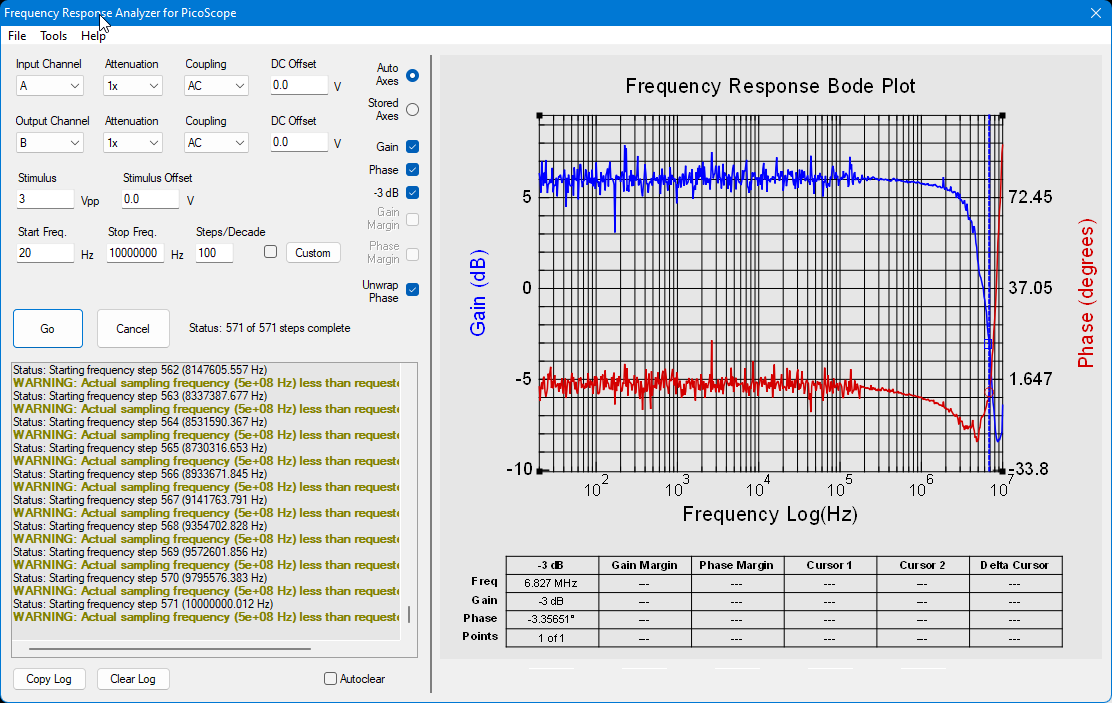

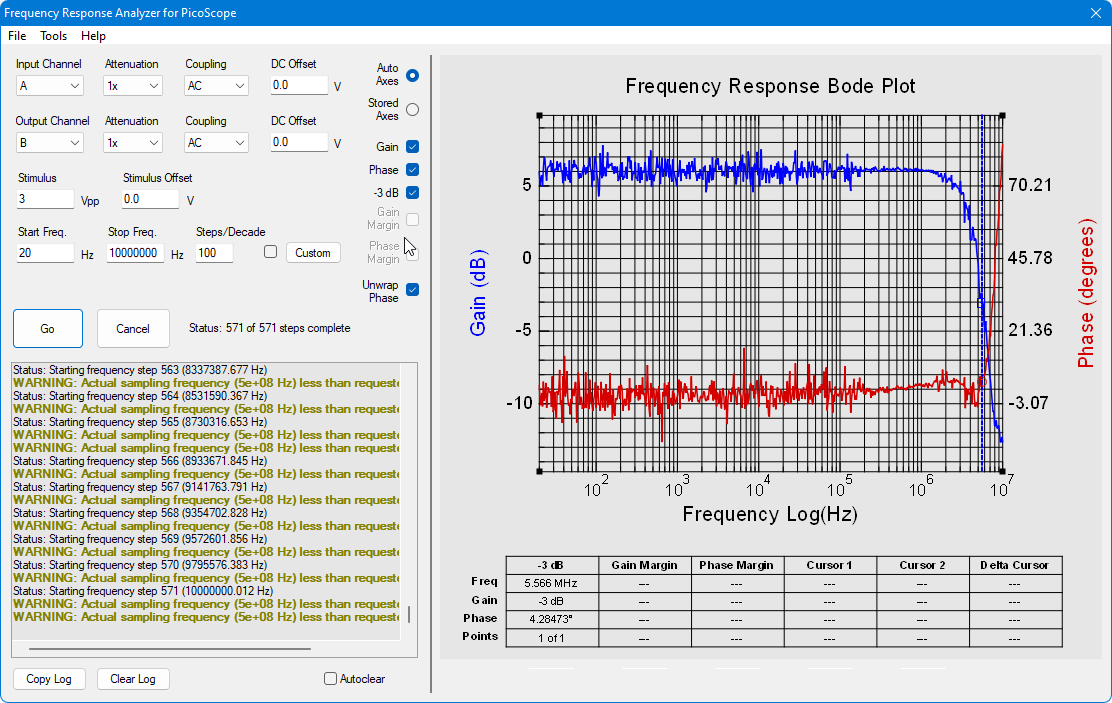

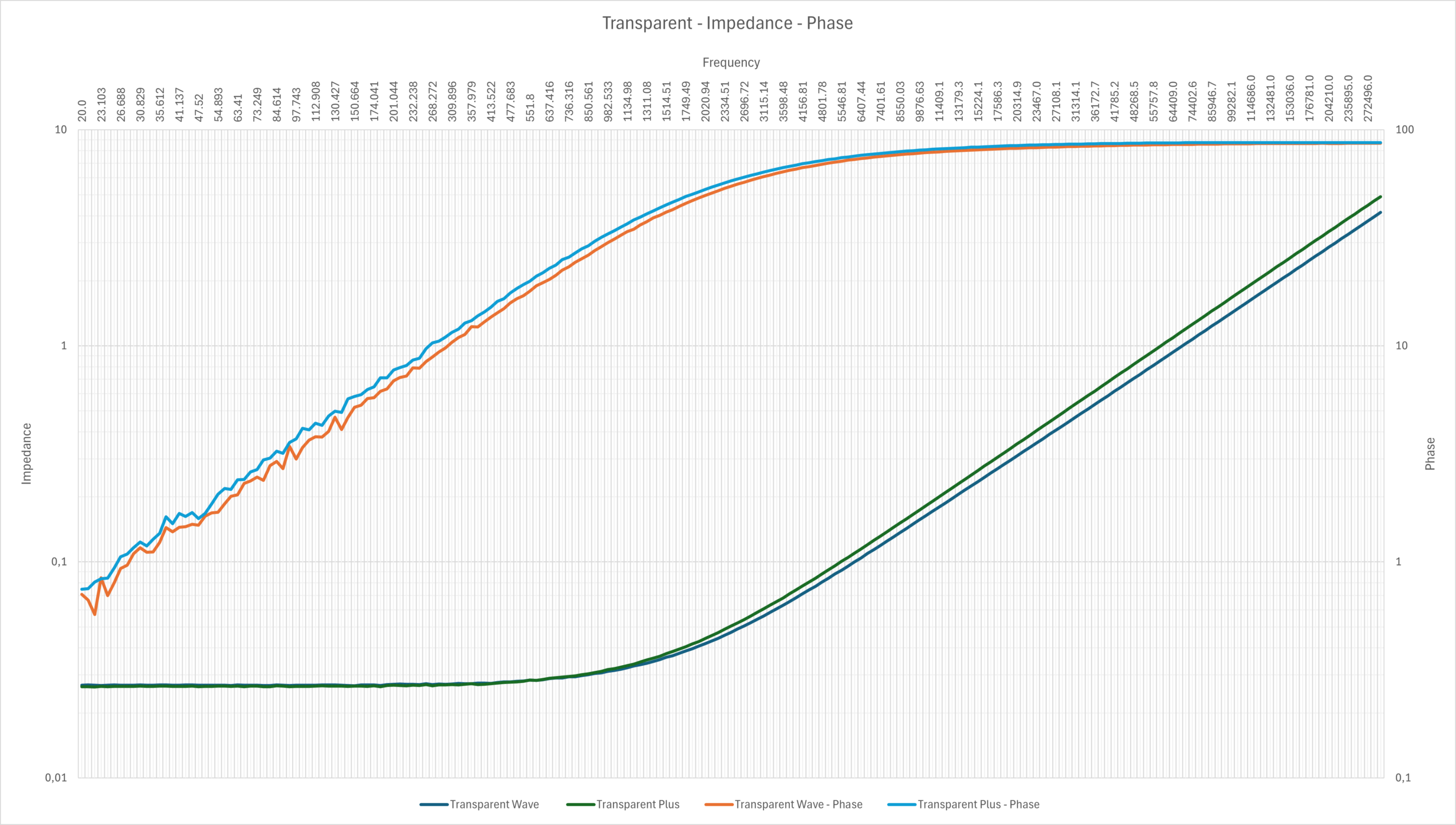

Response measurements

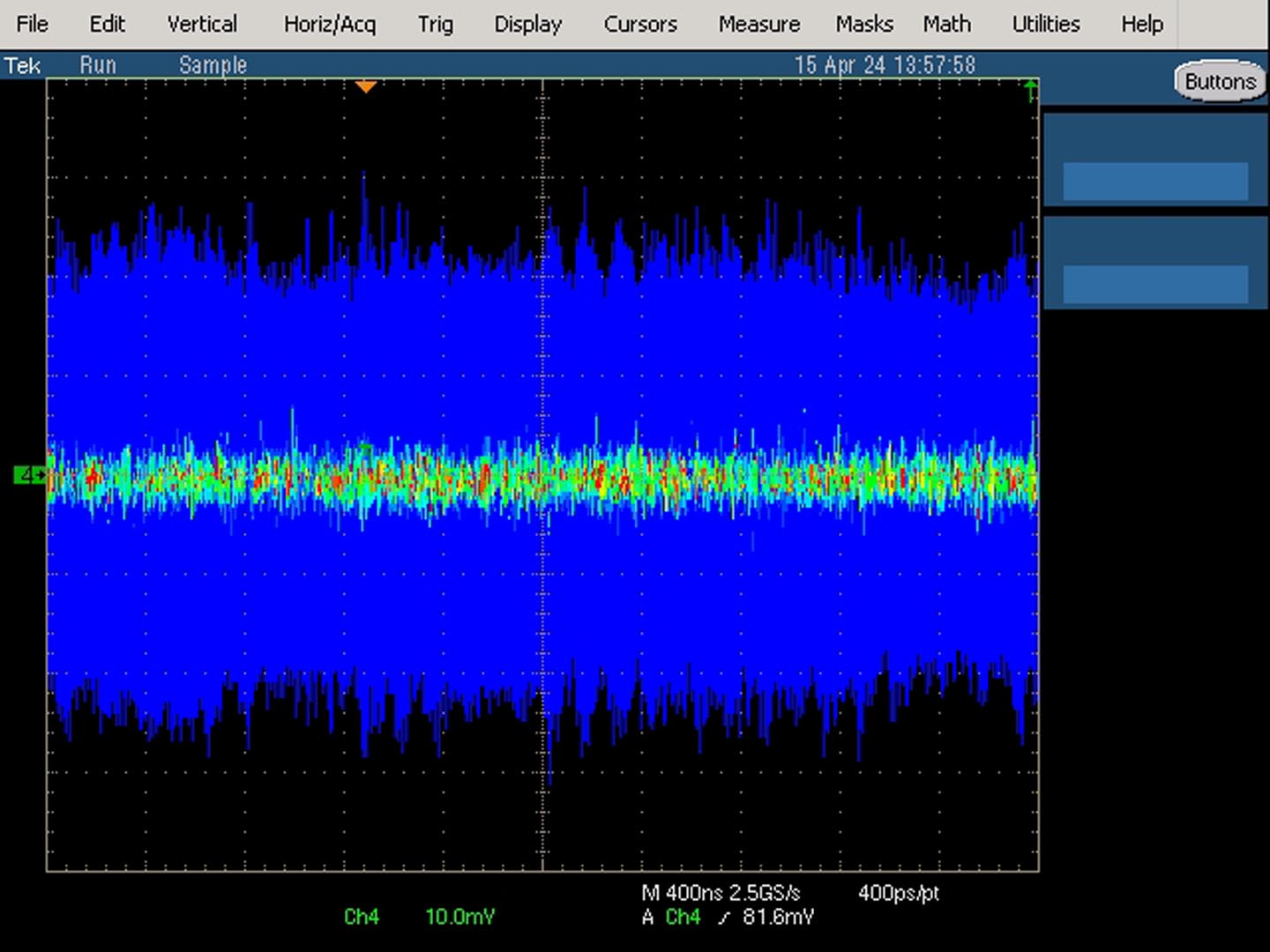

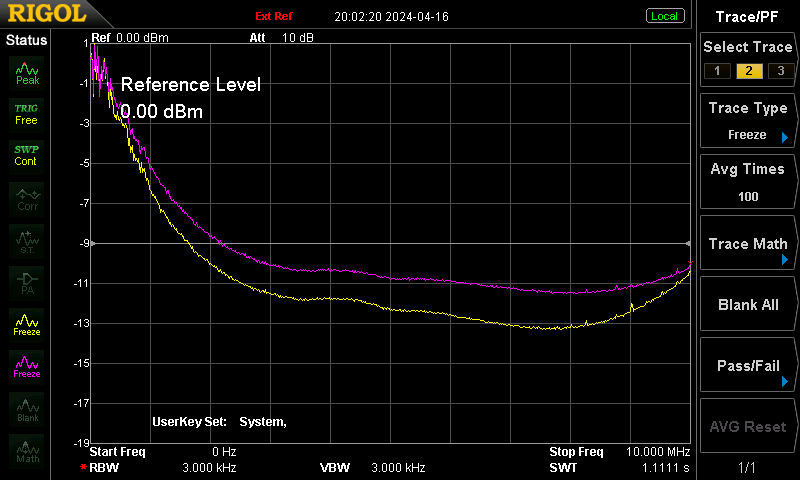

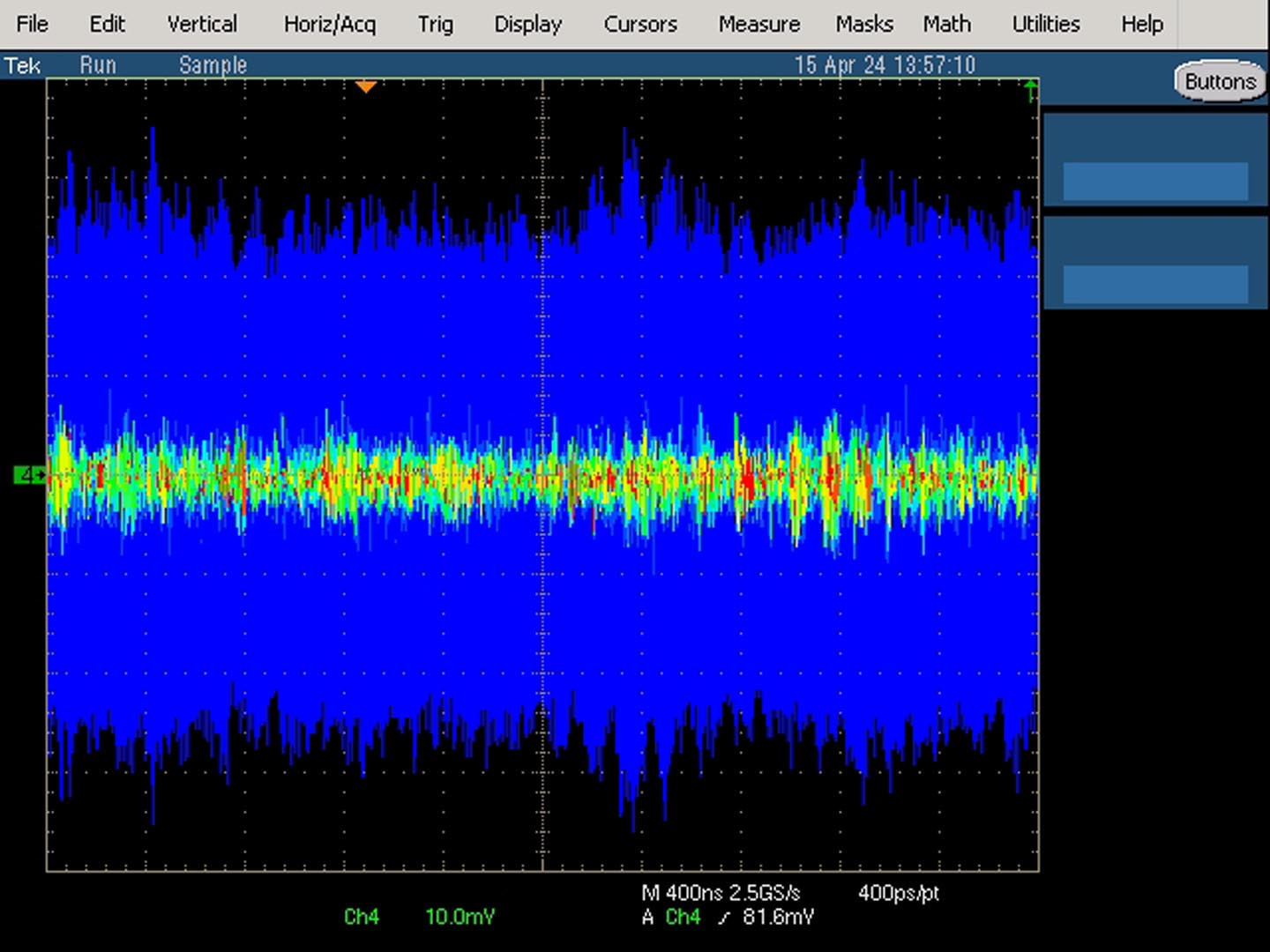

Noise measurements
