Elac Vela BS403
Contents

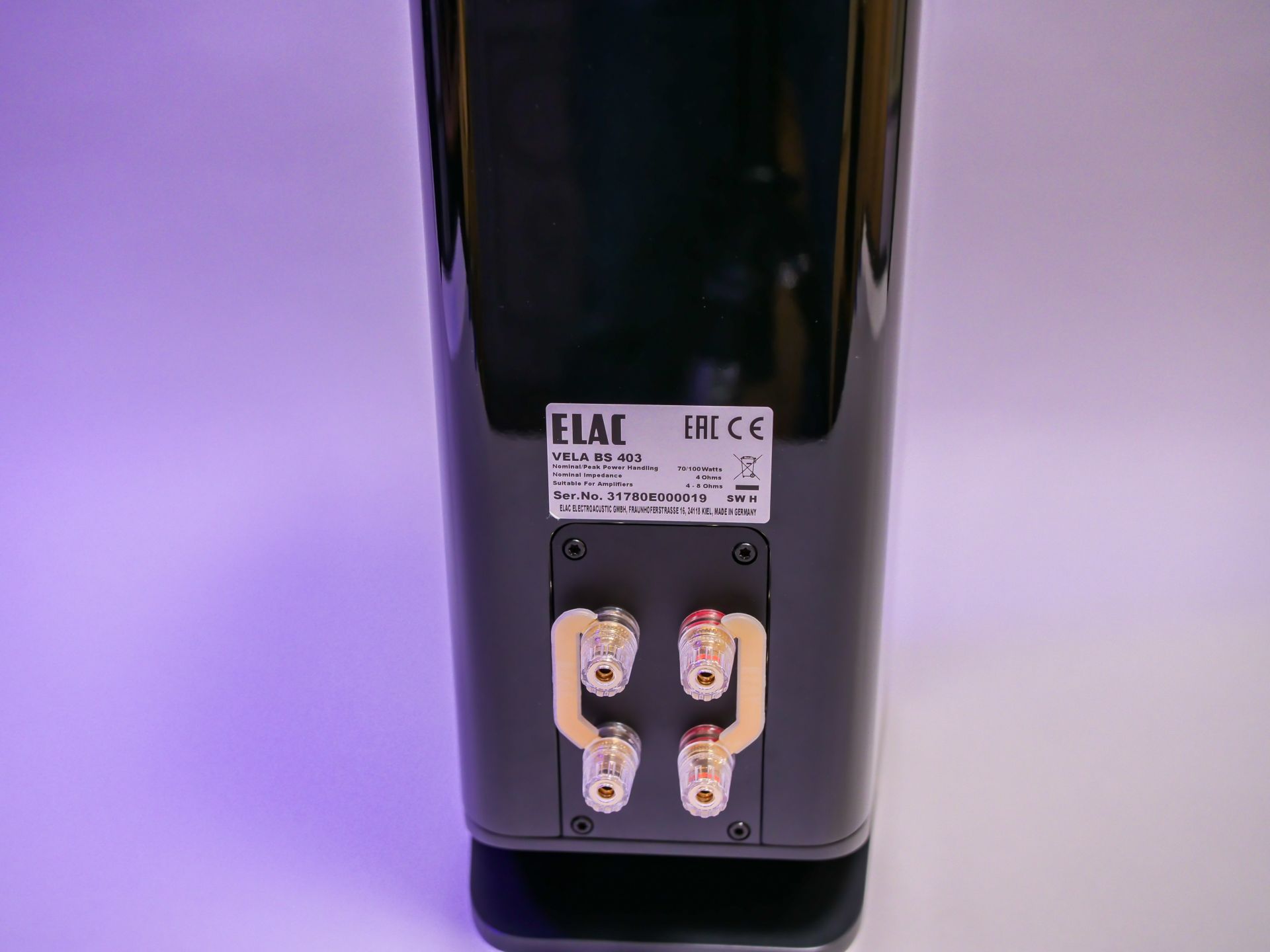

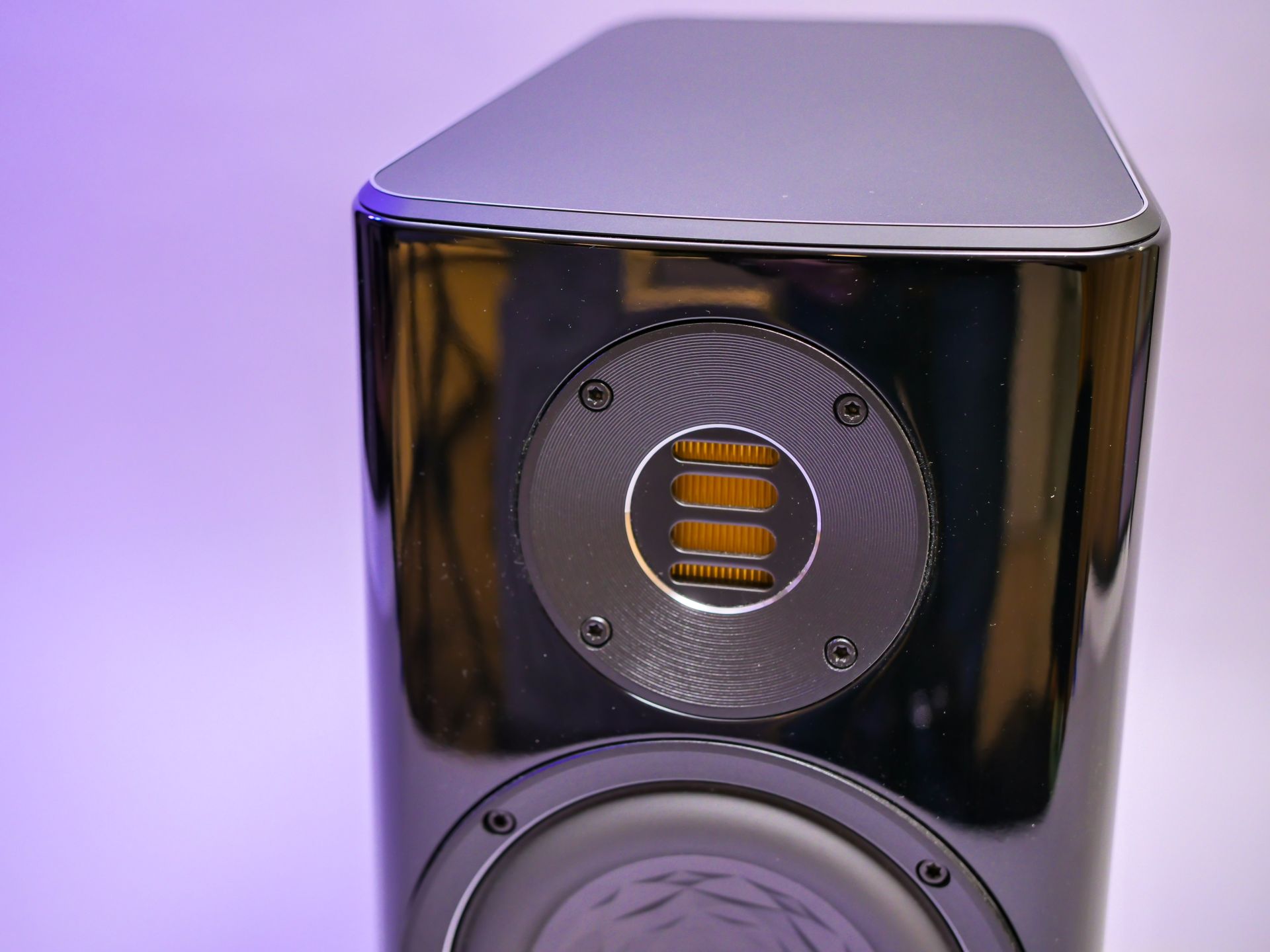

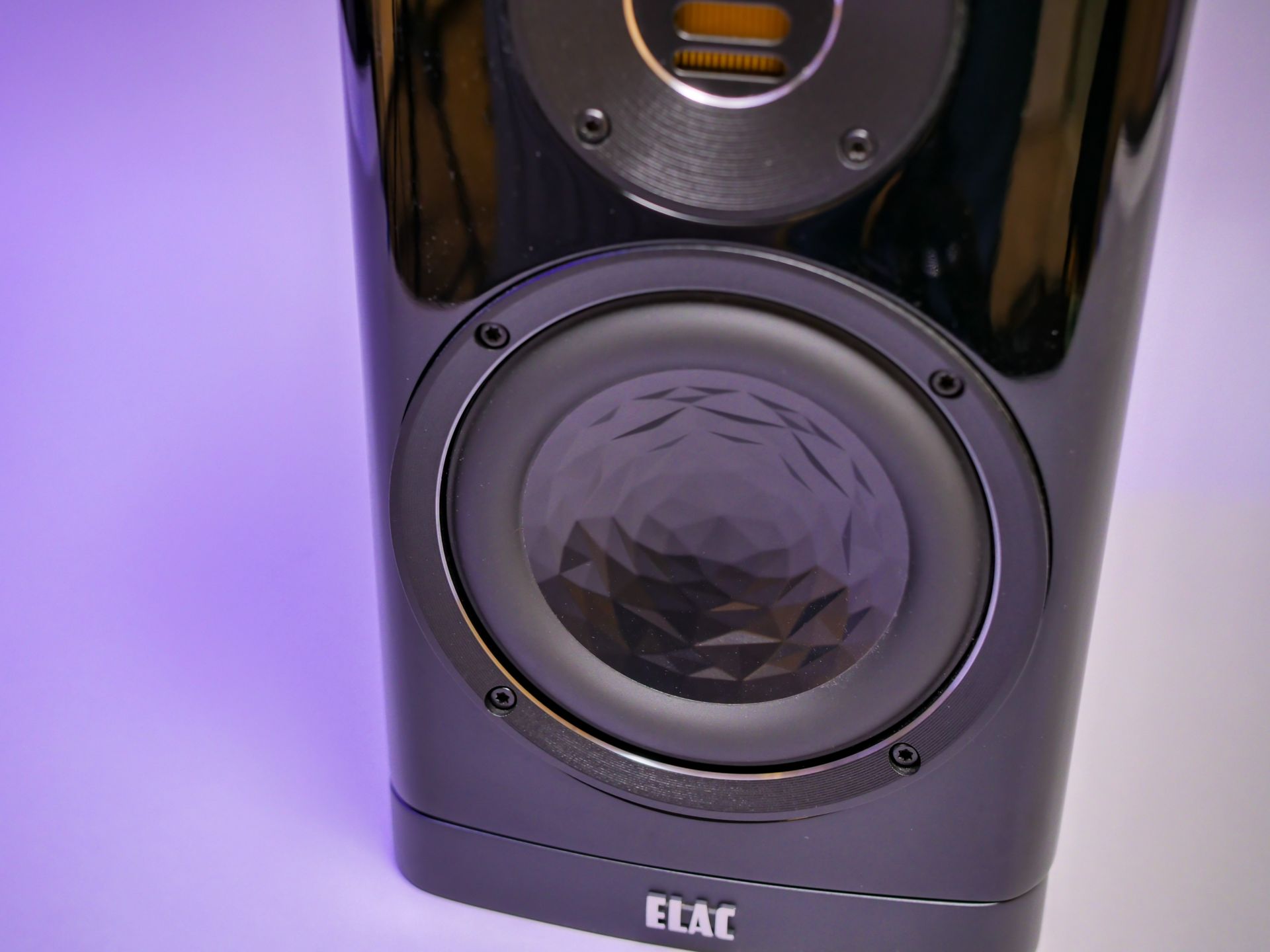

The German – only non-British in this series! – Elac Vela BS403 is a fairly traditional design. We see the well-known Elac JET tweeter at the top and an aluminum woofer beneith that. At the back is a bass reflex port in the base.
Elac is known for its JET tweeter. We’ll see what that means later in the measurements. The finish is particularly neat. No seams, nice finish, fine paintwork. All in all, a very neat – and compact! – speaker for 2200 euros.
The sound
The ELACs sound correct, very correct. They also sound super transparent, with lots of detail, making the difference in character between the Pass Labs and the Nilai clearly audible. The combination of correct and transparent sometimes makes it lean a bit towards analytical, something reinforced by the pacing of the speaker that is not ‘snappy’. As a result, it can be a bit detrimental to engagement as a listener.
Sohn’s track makes the Elac’s work hard. The bass drone is not very tightly controlled, but we have found that to be the case with many other speakers in this category as well. With the Nilai, the instruments get much more body and the balance between bass and mids improves. The imaging is towards you, this is a speaker that demands your attention and keeps you on your toes.
The ELACs intrigue. They are very controlled in almost every conceivable aspect. Despite their transparency, you can listen to them for a very long time and this is mainly due to the wonderful reproduction of the treble. Perhaps the best of the test in that area.
Specifications Elac Vela BS403
| Type | 2-way, bass reflex |
| Units | Jet 5 ribbon, 15cm woofer (Aluminum) |
| Range | 41 – 50000 Hz |
| Load capacity | 70 watts (?) |
| Sensitivity | 86 dB |
| Impedance | 4 ohms |
| Crossover | 2400 Hz |
| Dimensions / Weight | 19 x 36 x 24 cm (W_H_D), 7 Kg |
| Price | 2200 per pair exc stand |
Measurements Elac Vela BS403

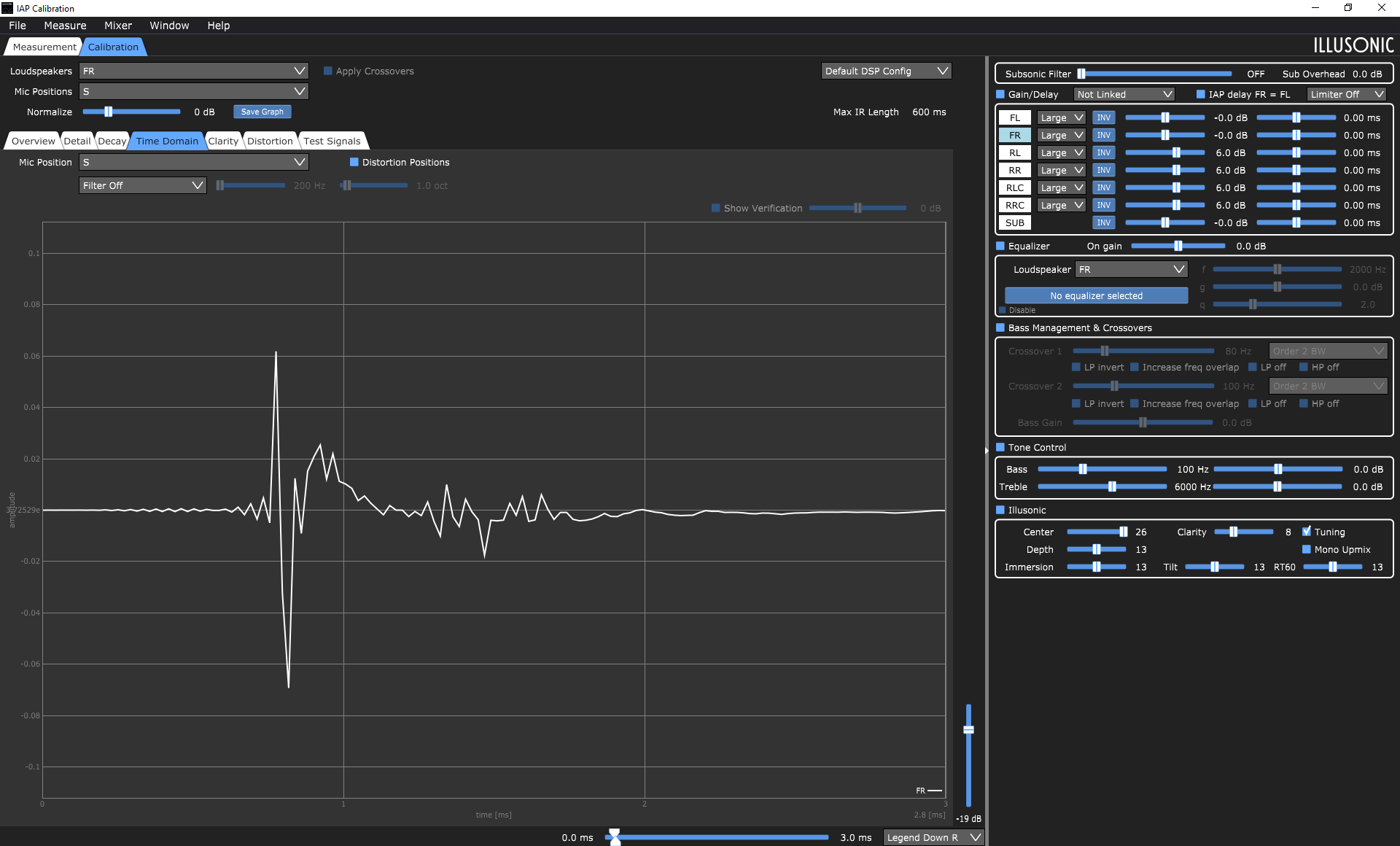

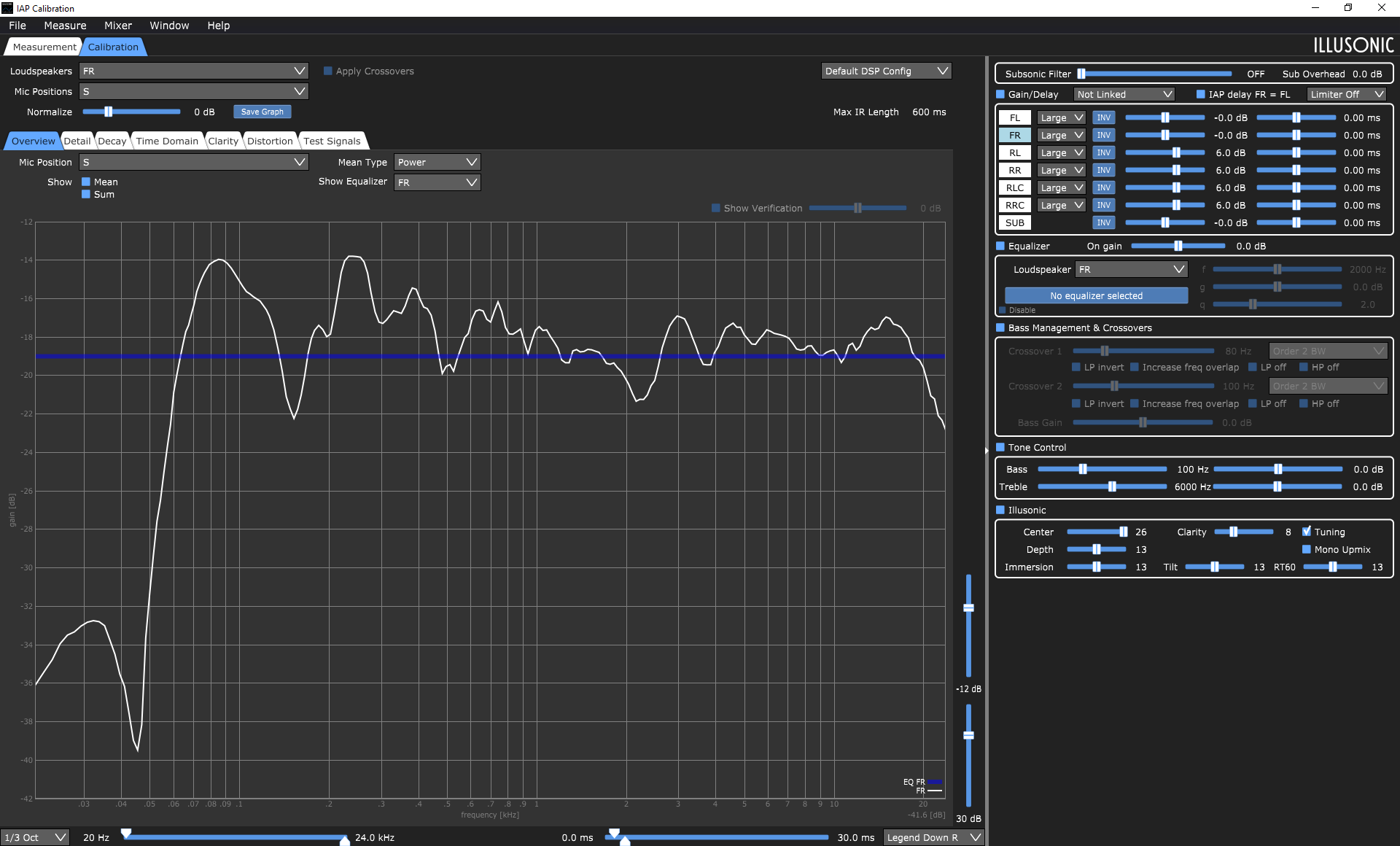

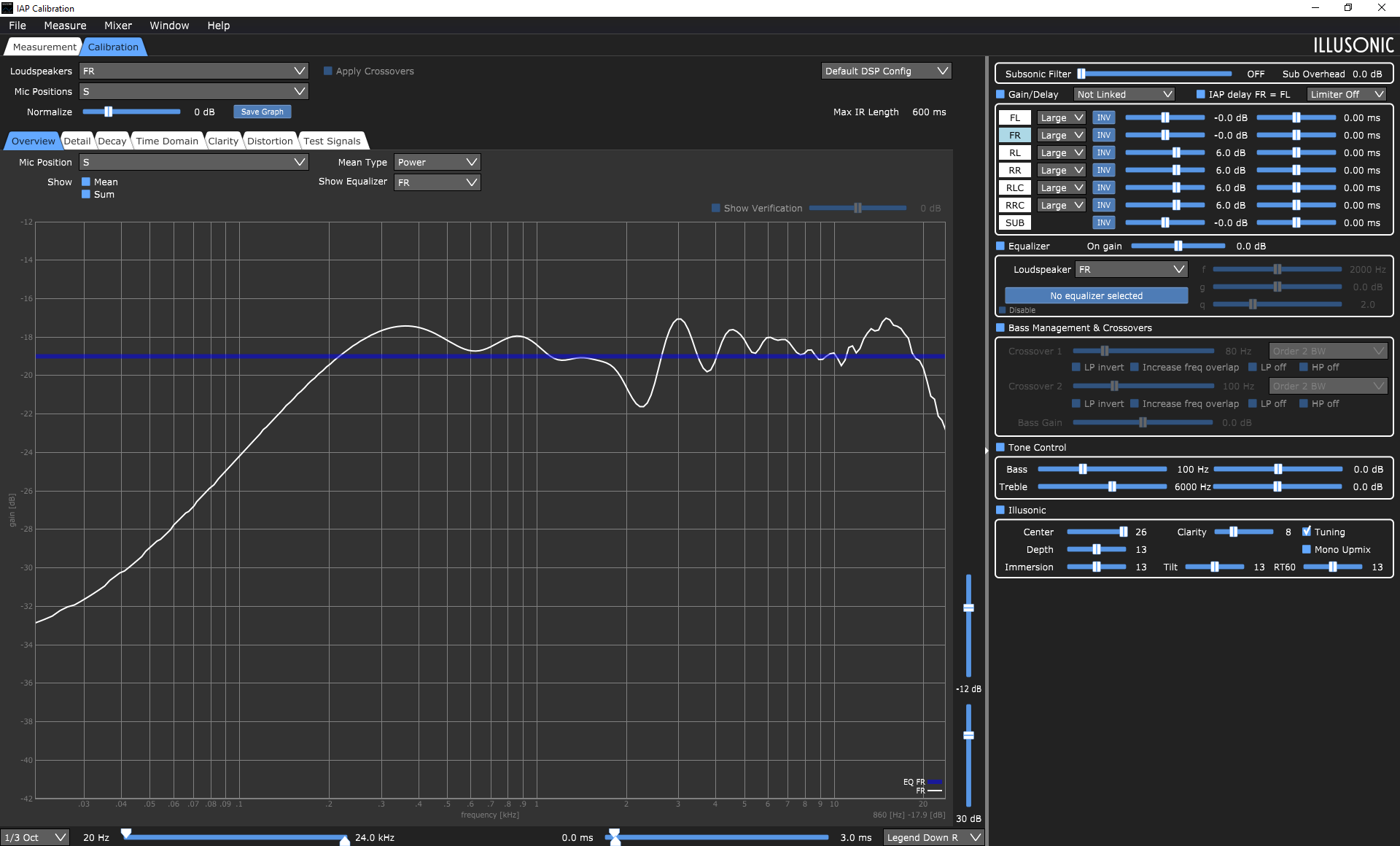

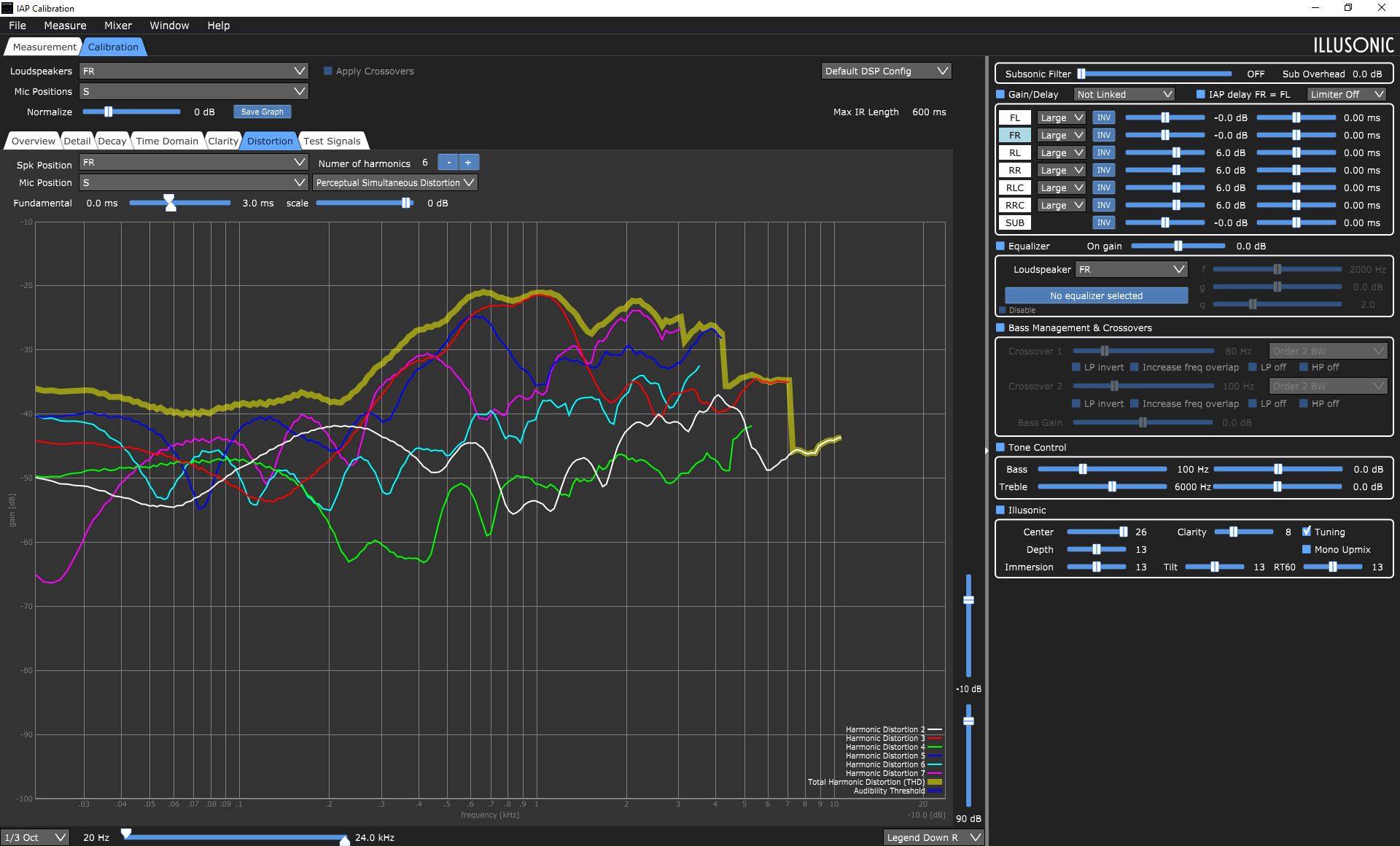

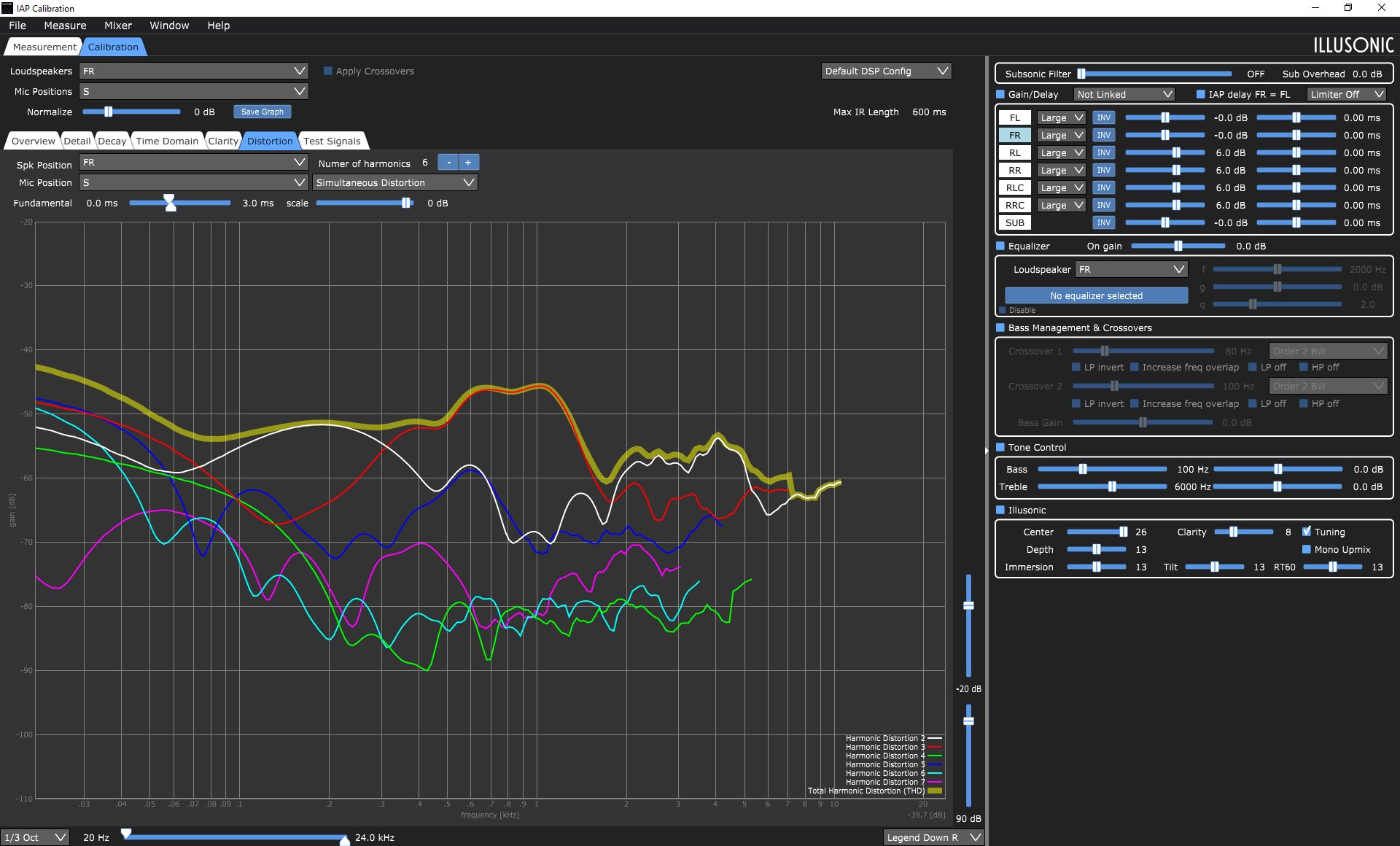

That the Germans are aiming for a correct speaker is obvious: the Elac measures particularly flat. Except for a very small bump around 15 kHz. But that’s probably due to the on-axis measurement. The distortion is a little less than we like to see. The woofer does not really come along with the JET-tweeter. That shows values around 0.15%. The woofer stays under 0.5%. Maybe because it needs to work a bit hard. Between 500 and 1500 Hz it is at 0.5%. Not bad, but not spectacular either.

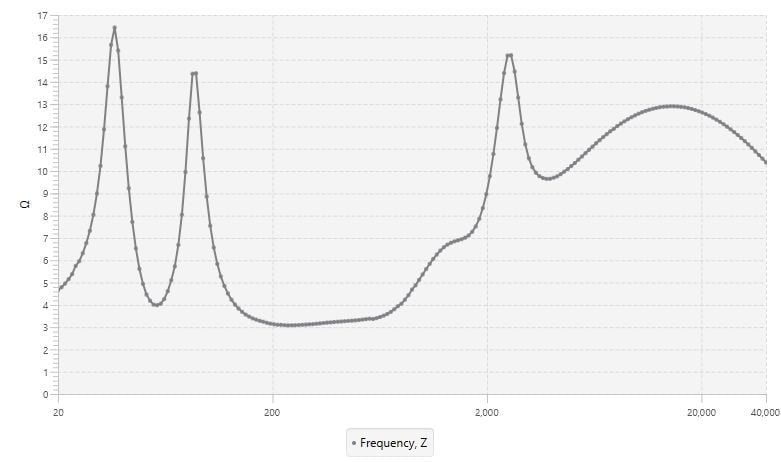

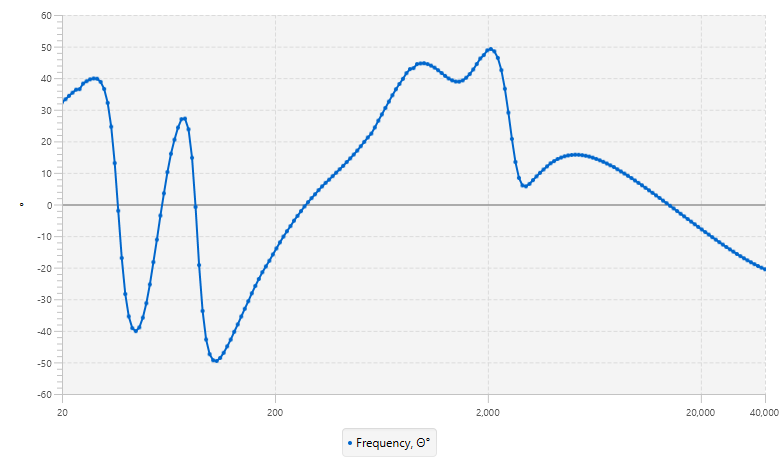

Impedance is the same as other speakers with a ribbon. You can see that the impedance increases. However, it all stays very neat with the Elac. We also see no real high peaks in the bass: 16 Ohm maximum. The Elac doesn’t dip below 3 Ohm. In short: not a very difficult speaker. But we do advise a stable amplifier.
