Multitest plug in filters – ten plug in filters – measurements and blind test

13

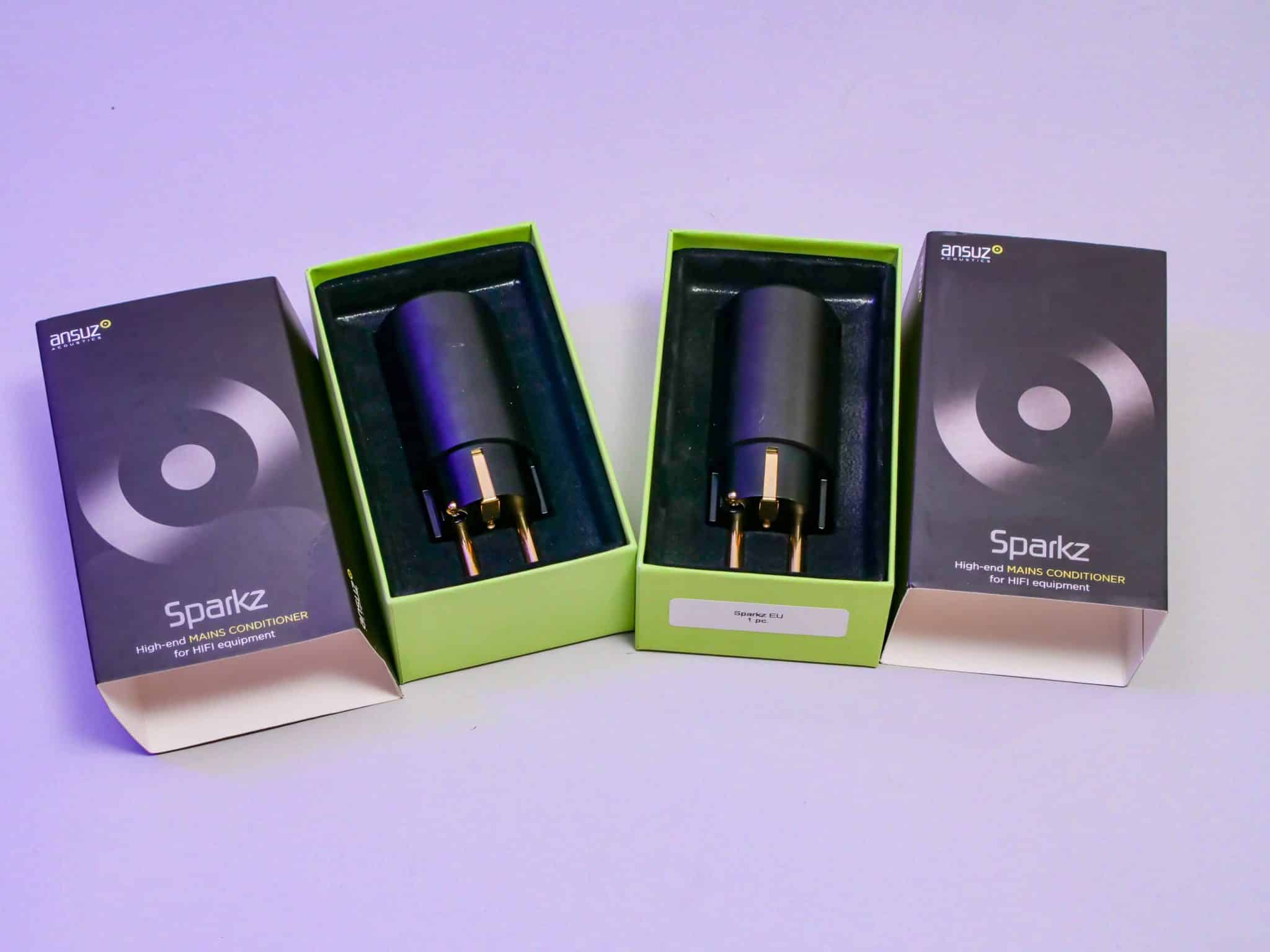

Ansuz Sparkz (EU and TC2)

Martijn hears a difference with the Ansuz Sparkz TC2 plug. Not all positive, however, as there seems to be some shifting in the imaging. “As if the violin is behind the piano,” your author read in the notes.

With Anathema, it does do some nice things in terms of vocals; slightly more reverb, but with Loney Dear, more compression is audible. Odd.

Tonally, with the TC2, the violin pops out more; also with vocals that’s the case…. odd.

We conclude that the Sparkz TC2 definitely does something in terms of imaging and tonal balance. In our system, it is not all positive.

The Ansuz EU does much less. There seems to be more air in the image. But the fact is: the system does that even without a filter compared to some candidates. Other than that, very little happens with the Sparkz EU. And that does match the measurements and contents of the plug (read on).

Download all lossless samples

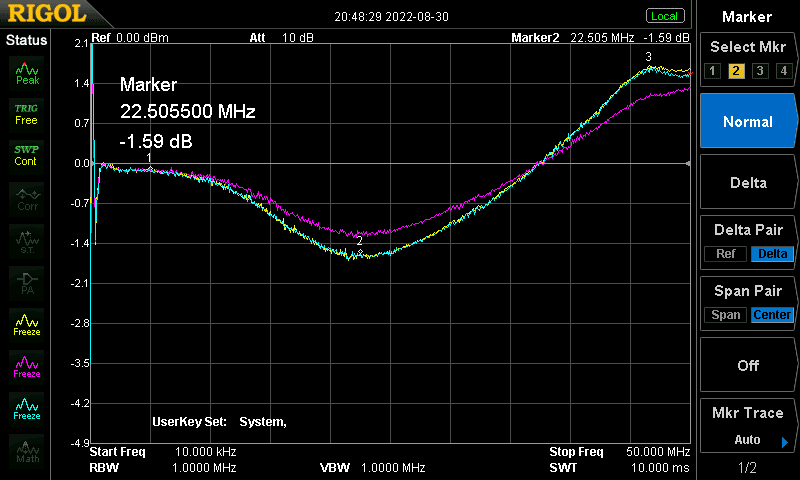

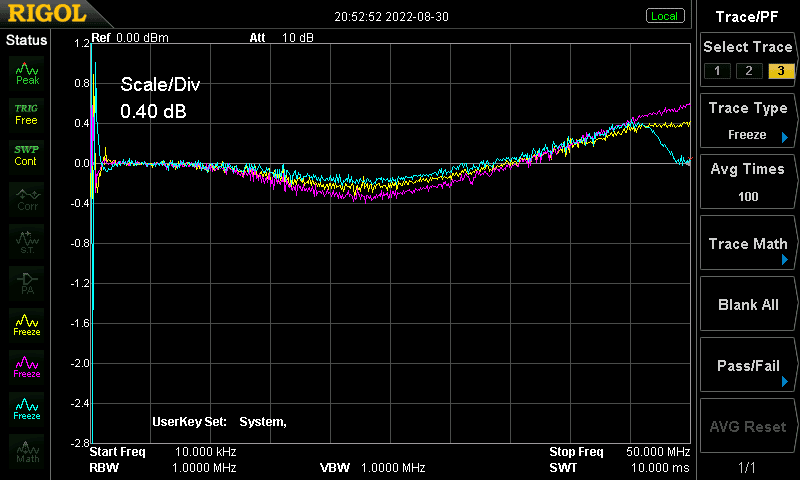

LCR Measurements Ansuz Sparkz EU and TC2

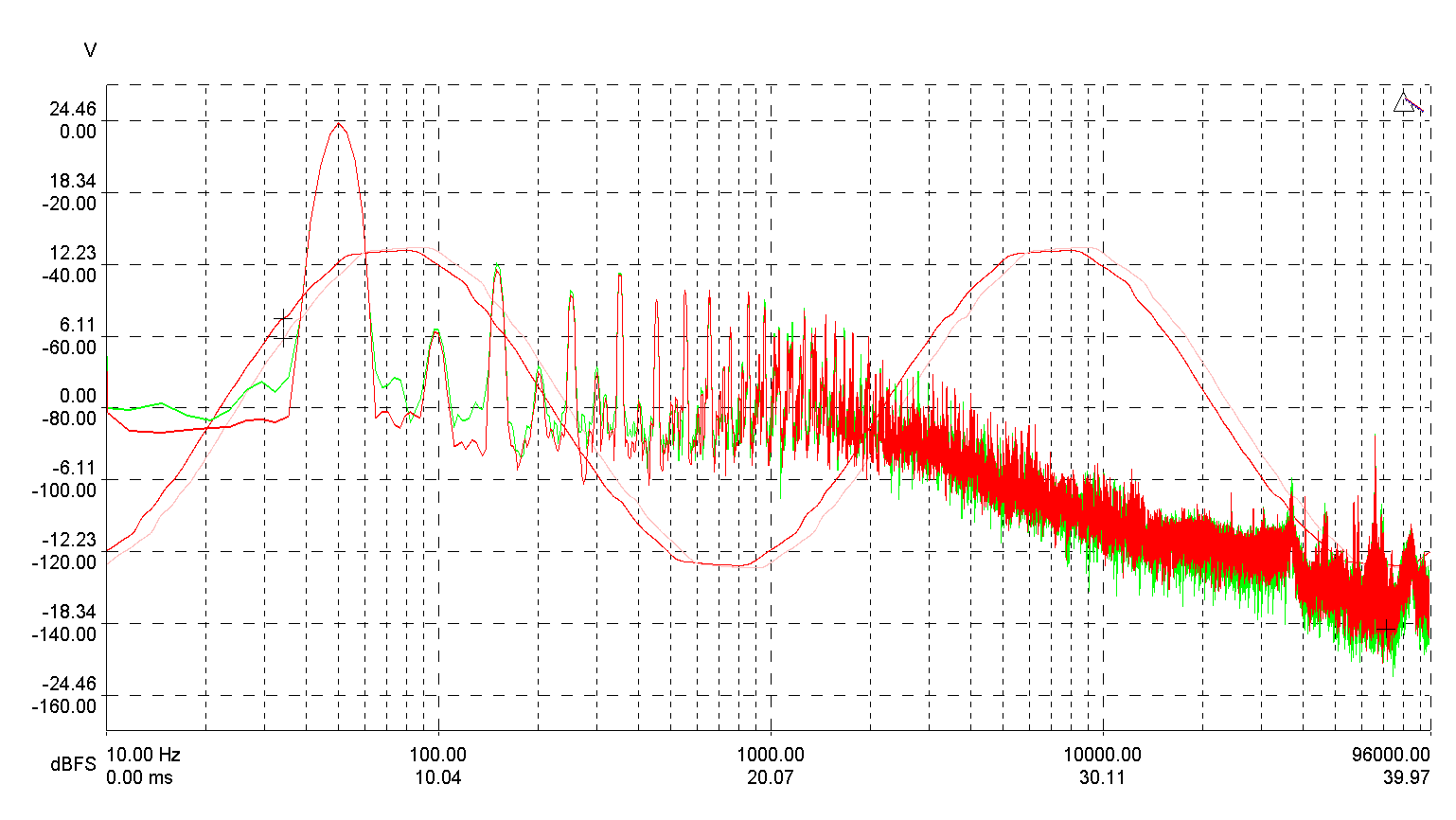

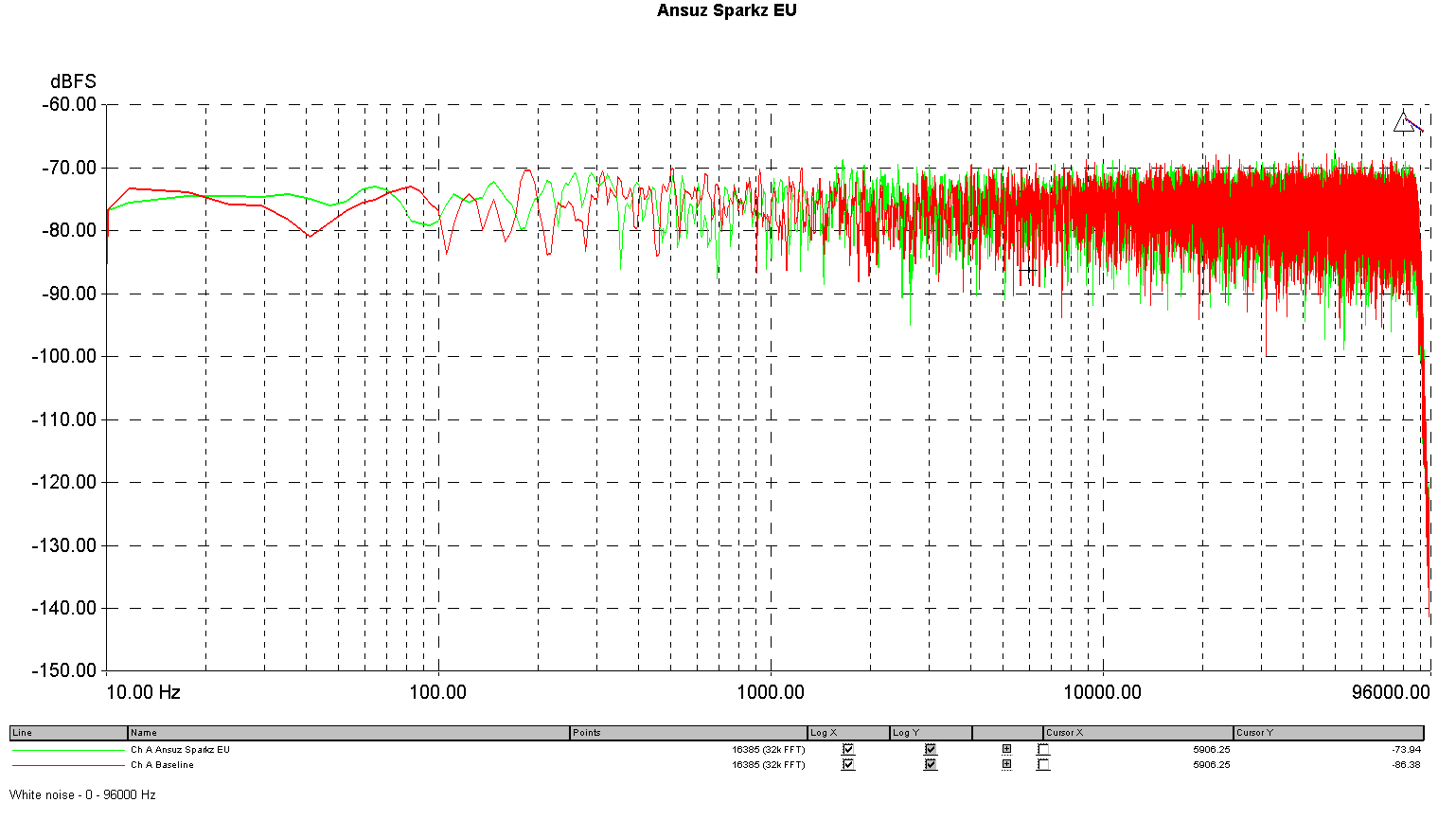

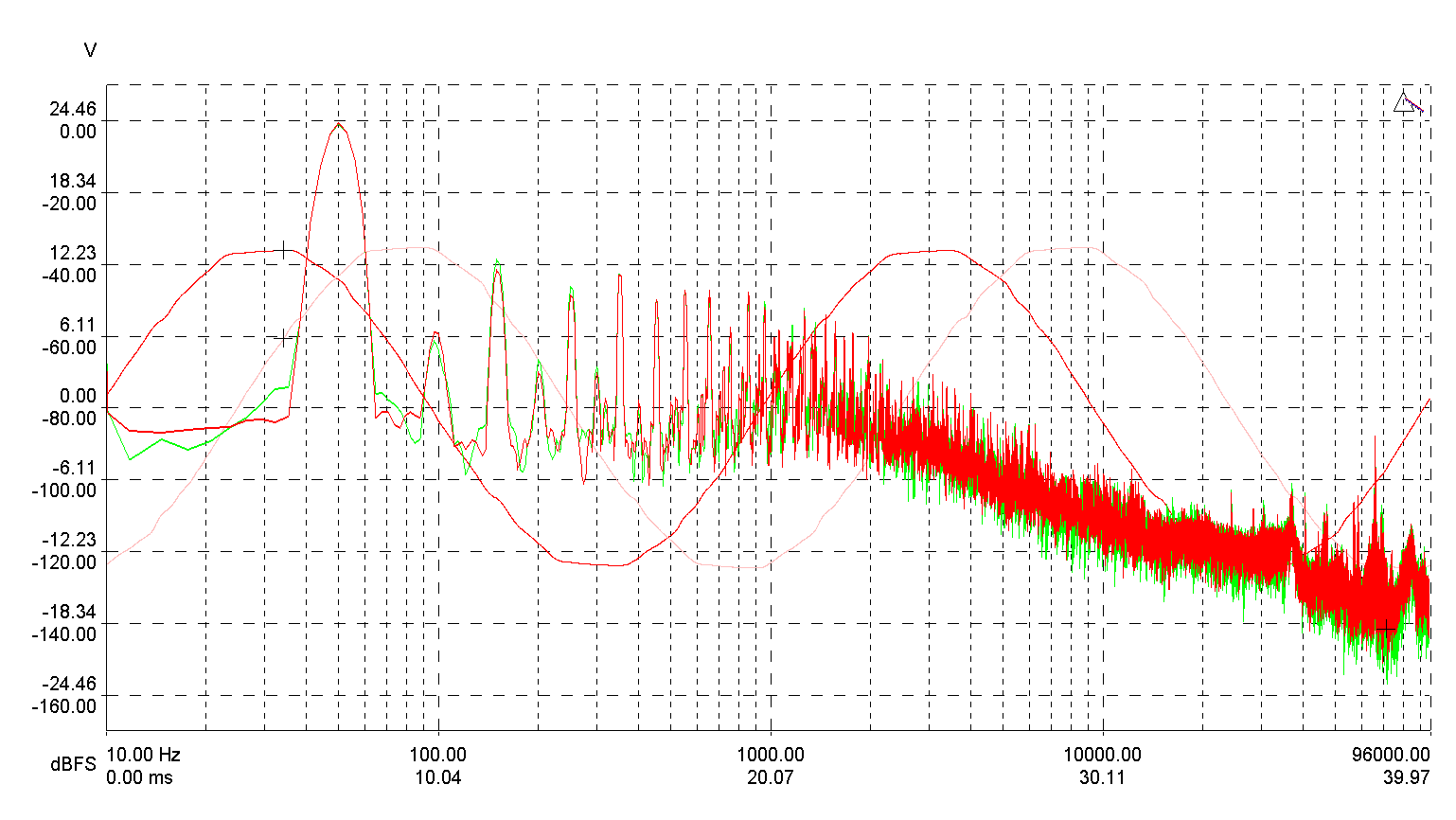

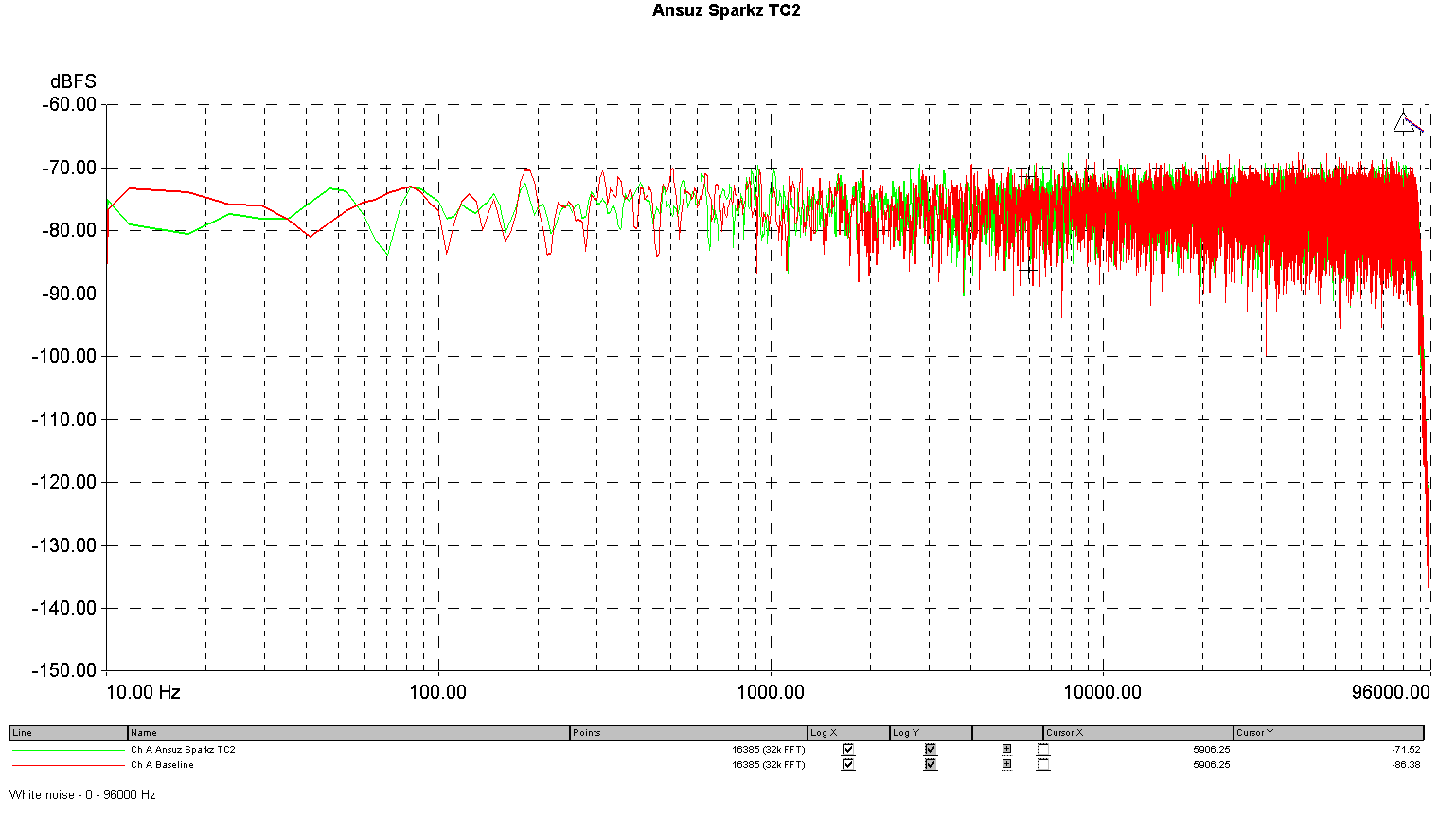

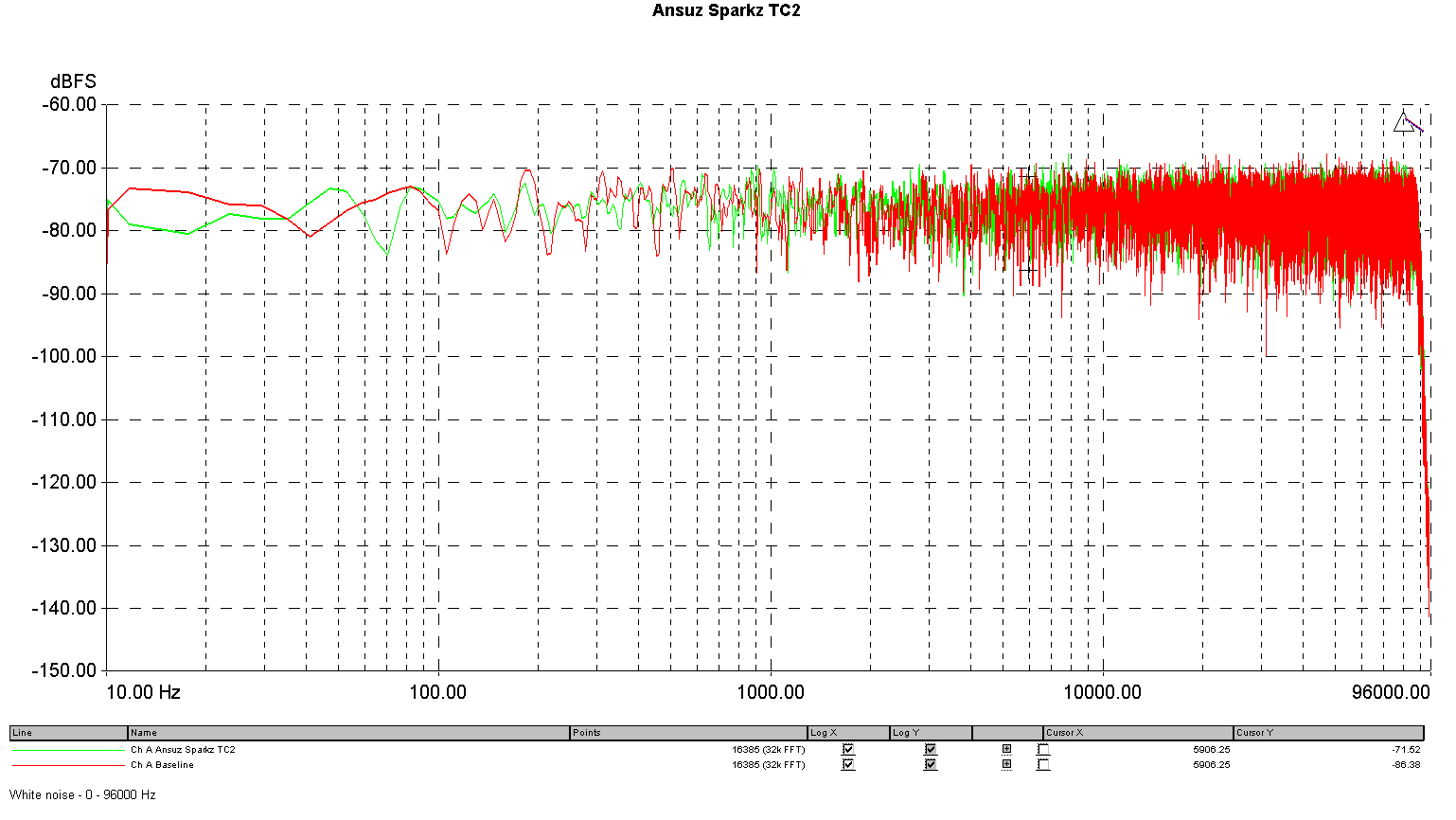

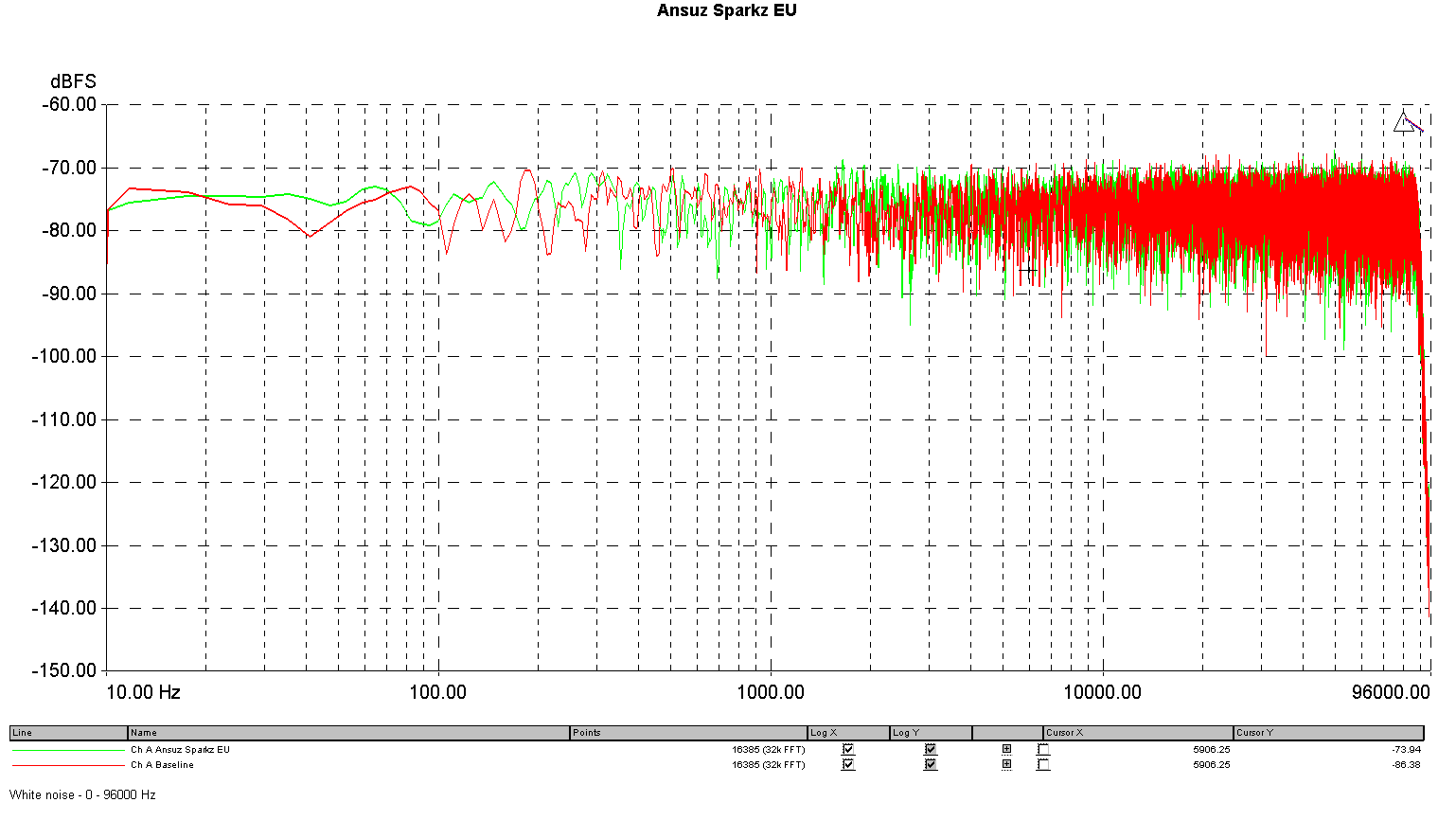

Response and noise measurements Ansuz Sparkz EU and TC2

A quote from Ansuz about the Sparkz EU:

Ansuz Sparkz is a noise cancellation plug for open mains sockets, mainly in power distributors. Mains power transmits disturbing noise that ‘bleeds’ into the other Hi-Fi components and impairs their ability to reproduce music with openness and fine detail on a wide soundstage. Ansuz Sparkz is equipped with Ansuz noise reduction technologies to deliver any music with more openness and speed, against an amazingly quiet background.

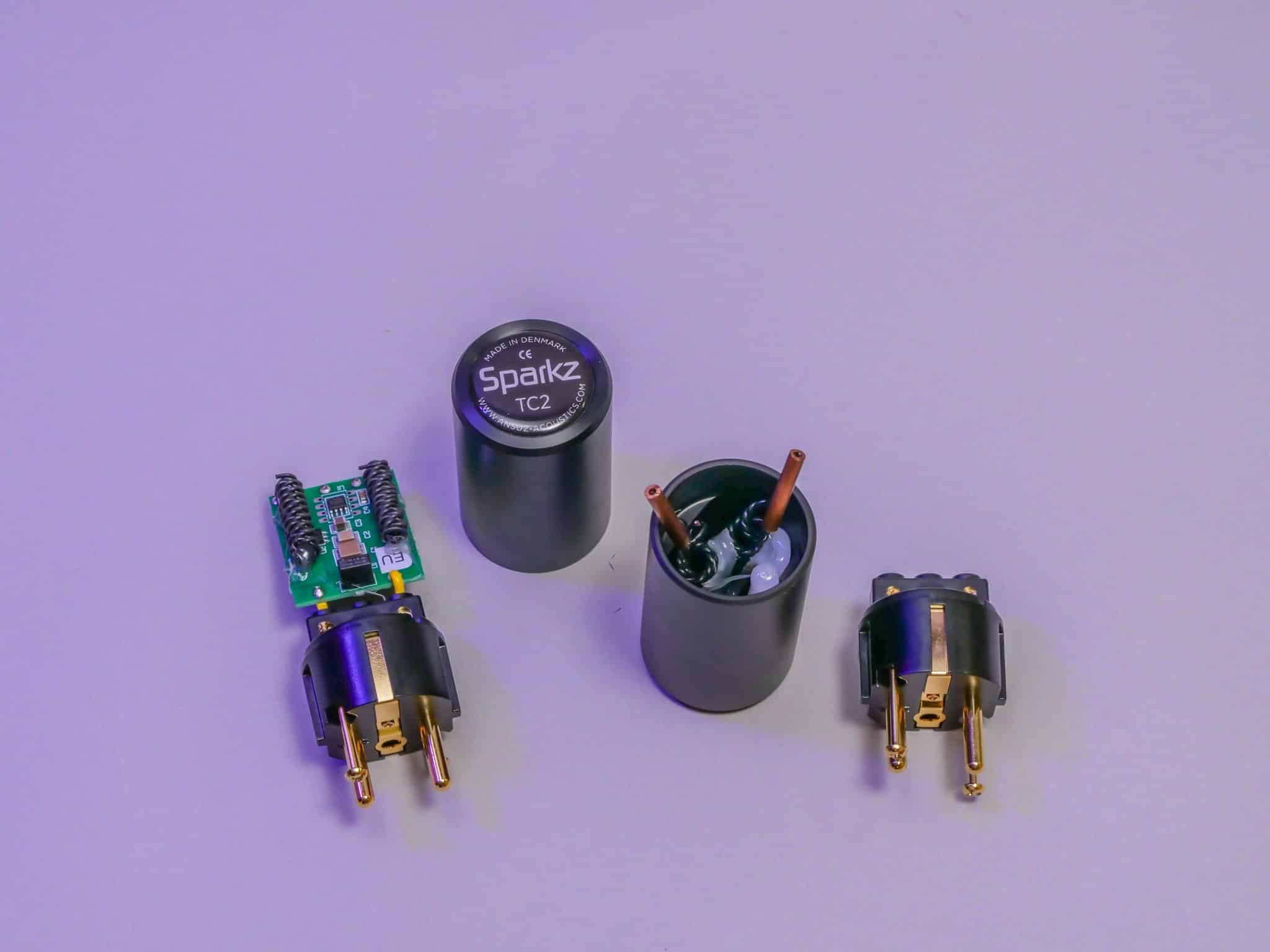

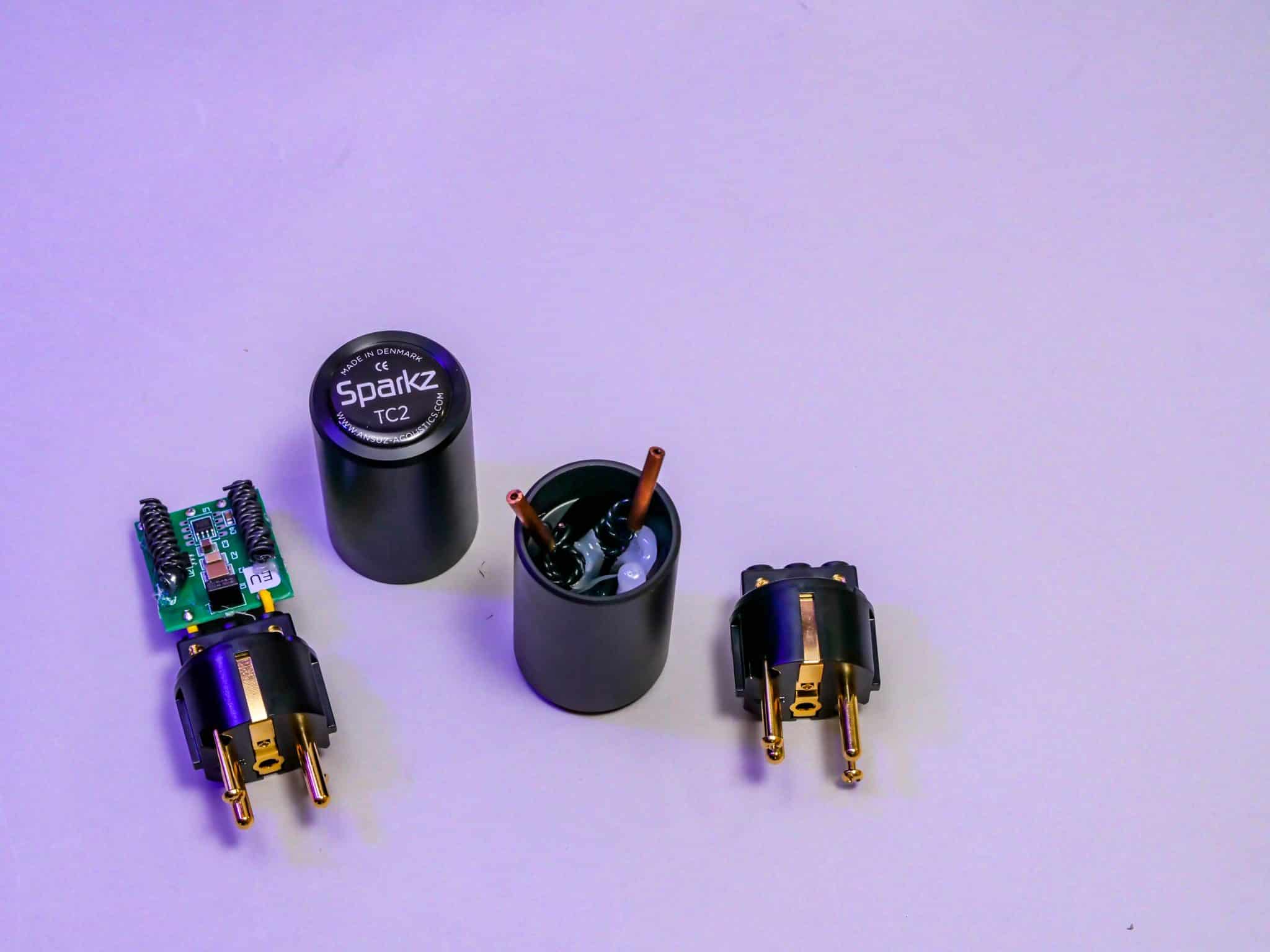

These are two completely different plugs. The Sparkz EU and TC2 use the Ansuz tesla coils. The TC2 also has the TCs (Tesla Coils) but also works with an active circuit. And that is audible and measurable.

Concerning the Sparkz EU, we can’t see anything when measuring it. All straight lines and no filtering effect. Which is not very odd considering they are simply two coils made on the + and – (just like the Furutech plug). How is that supposed to filter or affect a circuit? Yet that is what they directly claim on their website.

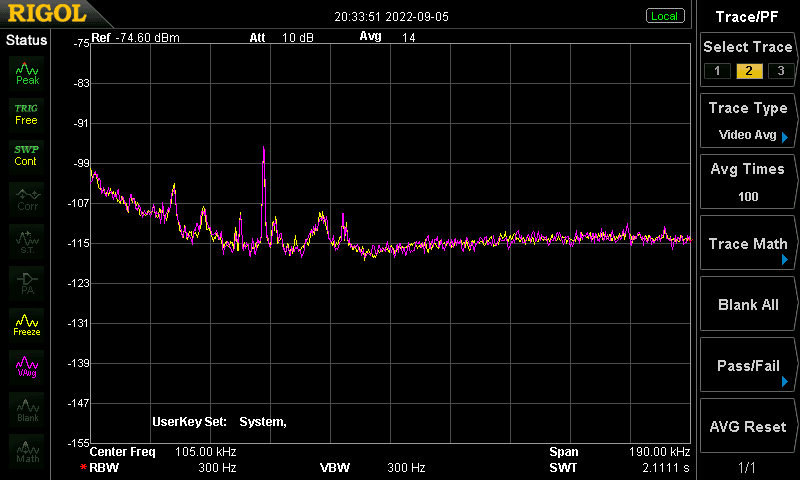

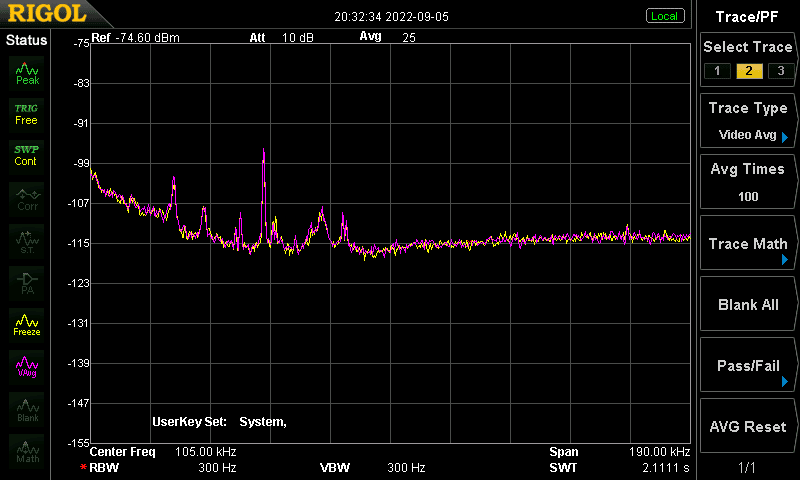

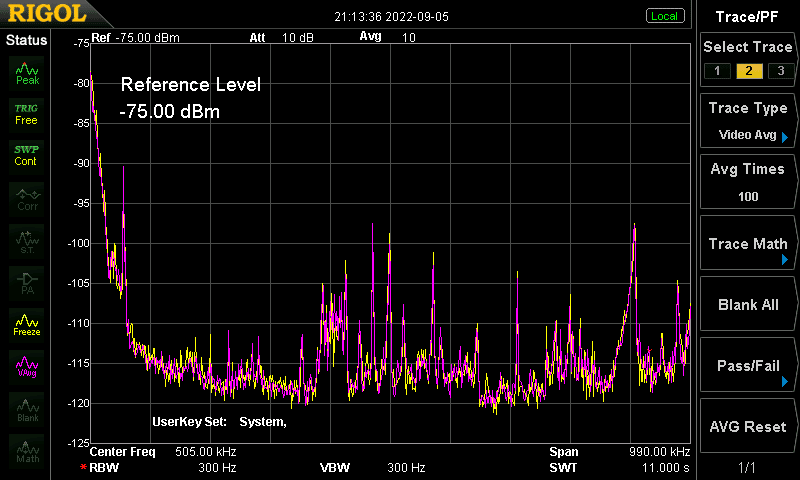

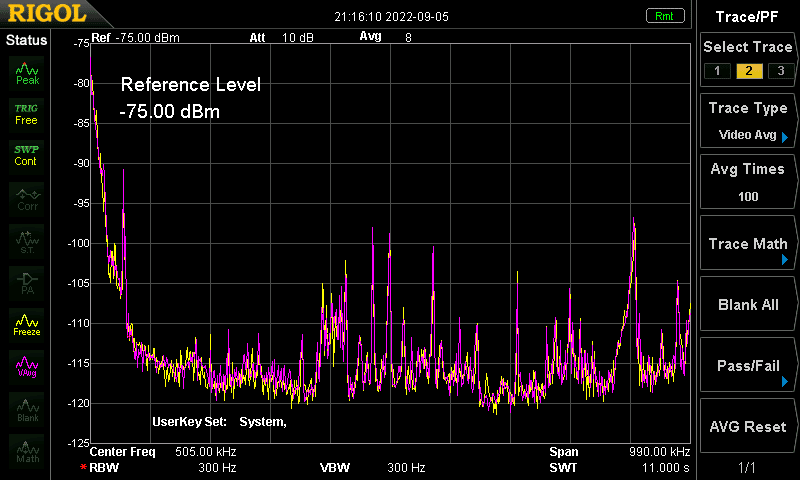

The TC2 we see that there is something more, but that is difficult to measure because although we see that there is an active circuit, in our sweeps and ‘synthetic tests’ there is little to discover. In the ‘grid test’ at the mains, some dots have disappeared, but less than with the ‘conventional’ parallel filters. In short: something does happen… But the price is really steep when we compare it to other products that 1. do more, and 2. are a lot cheaper.

Overall Ansuz Sparkz EU

Auditory Measured
Nothing significant. Nothing

Overall Ansuz Sparkz TC2

Auditory Measured
Sound balance shifts. Imaging changes. Vocal work emerges more prominently. Difficult to demonstrate, we measure circuitry but not filtering.
Type test
Multitest
Tested price class
Price cheapest product: €99
Price most expensive product: €995
Properties
  • Brand and model: Akiko Tuning Stick
  • Build quality: Good, solid
  • Overall impression: Subtile difference, extra 'richness?'
  • Price: €109
  • Brand and model: Ansuz Sparkz EU
  • Build quality: Pretty, carbon, chic
  • Overall impression: No audible difference
  • Price: €399
  • Brand and model: Ansuz Sparkz TC2
  • Build quality: Pretty, carbon, chic
  • Overall impression: More warmth
  • Price: €995
  • Brand and model: IFI AC Purifier
  • Build quality: Simple, decent
  • Overall impression: Restless, glazy, bit harsh
  • Price: €129
  • Brand and model: Isotek Isoplug EVO3
  • Build quality: Simple
  • Overall impression: Slightly more calm, big stereo image, smooth
  • Price: €99
  • Brand and model: Kemp SNS (New)
  • Build quality: Simple, but decent
  • Overall impression: More calm, tight focus, tick dry
  • Price: €125
  • Brand and model: NordOst QK1
  • Build quality: Pretty, carbon, chic
  • Overall impression: Very fluid, nice balance, calmness.
  • Price: €275
  • Brand and model: NordOst QV2
  • Build quality: Pretty, carbon, chic
  • Overall impression: Small image, bit flat, rhythmic though
  • Price: €399
  • Brand and model: Furutech NCF Clearline
  • Build quality: Pretty, carbon, chic
  • Overall impression: No audible difference
  • Price: €279
  • Measurements
    All filters
    All filters
    Filterslope - NordOst QRT QV2
    Filterslope - NordOst QRT QV2
    NordOst QRT QK1
    NordOst QRT QK1
    Kemp SNS plug
    Kemp SNS plug
    Isotek Isoplug EVO3
    Isotek Isoplug EVO3
    IFI AC Purifier
    IFI AC Purifier
    Furutech NCF Clearline - Filter slope
    Furutech NCF Clearline - Filter slope
    Ansuz Sparkz TC2
    Ansuz Sparkz TC2
    Ansuz Sparkz EU
    Ansuz Sparkz EU
    Akiko Tuning Stick
    Akiko Tuning Stick

    Winkels met Furutech

    Hennesweg 20
    6035 AD Ospel, NL

    Winkels met IFI

    Grotestraat 23
    5931 CS Tegelen, NL
    St. Ceciliastraat 28
    5038 HA Tilburg, NL
    Breestraat 146-148
    2311CX Leiden, Zuid Holland, NL
    Beethovenstraat 9-b
    1077 HL Amsterdam, Noord Holland, NL

    Winkels met Isotek

    Schoenmakersstraat 19
    6041EX Roermond, NL
    Grotestraat 23
    5931 CS Tegelen, NL
    St. Ceciliastraat 28
    5038 HA Tilburg, NL
    Breestraat 146-148
    2311CX Leiden, Zuid Holland, NL
    Hermesweg 2
    3741 GP Baarn, Utrecht, NL
    Korevaarstraat 2 e-f
    2311 JS Leiden, NL
    Beethovenstraat 9-b
    1077 HL Amsterdam, Noord Holland, NL
