Measurements and conclusion CHoco Sound EMEI
Contents
We measured the Kinki Studio / CHoco Sound EMEI with the Prism dScope III and also took noise measurements via the LISN and spectrum analyzer. This is to determine how clean the power supply of this amplifier is.

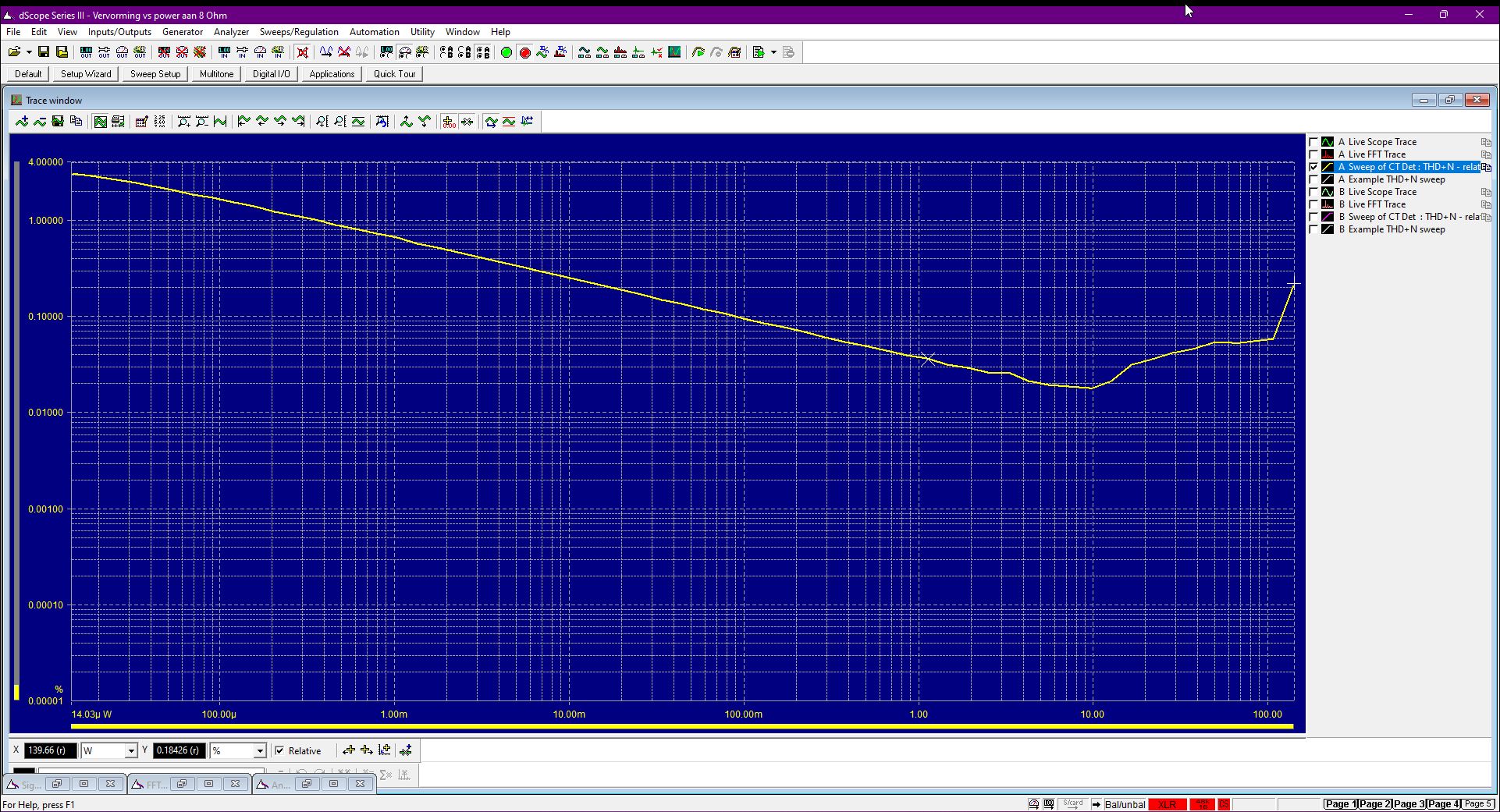

We have to say that we had a bit of a struggle with this amp. This is because the fuse has blown out a few times during power measurements. We can’t test full power without the fuse popping. At 4 Ohms, we can’t actually measure at all. Still kind of weird. We do get – if we are very careful – 139 watts at 8 Ohms. If we go higher, the fuse blows.

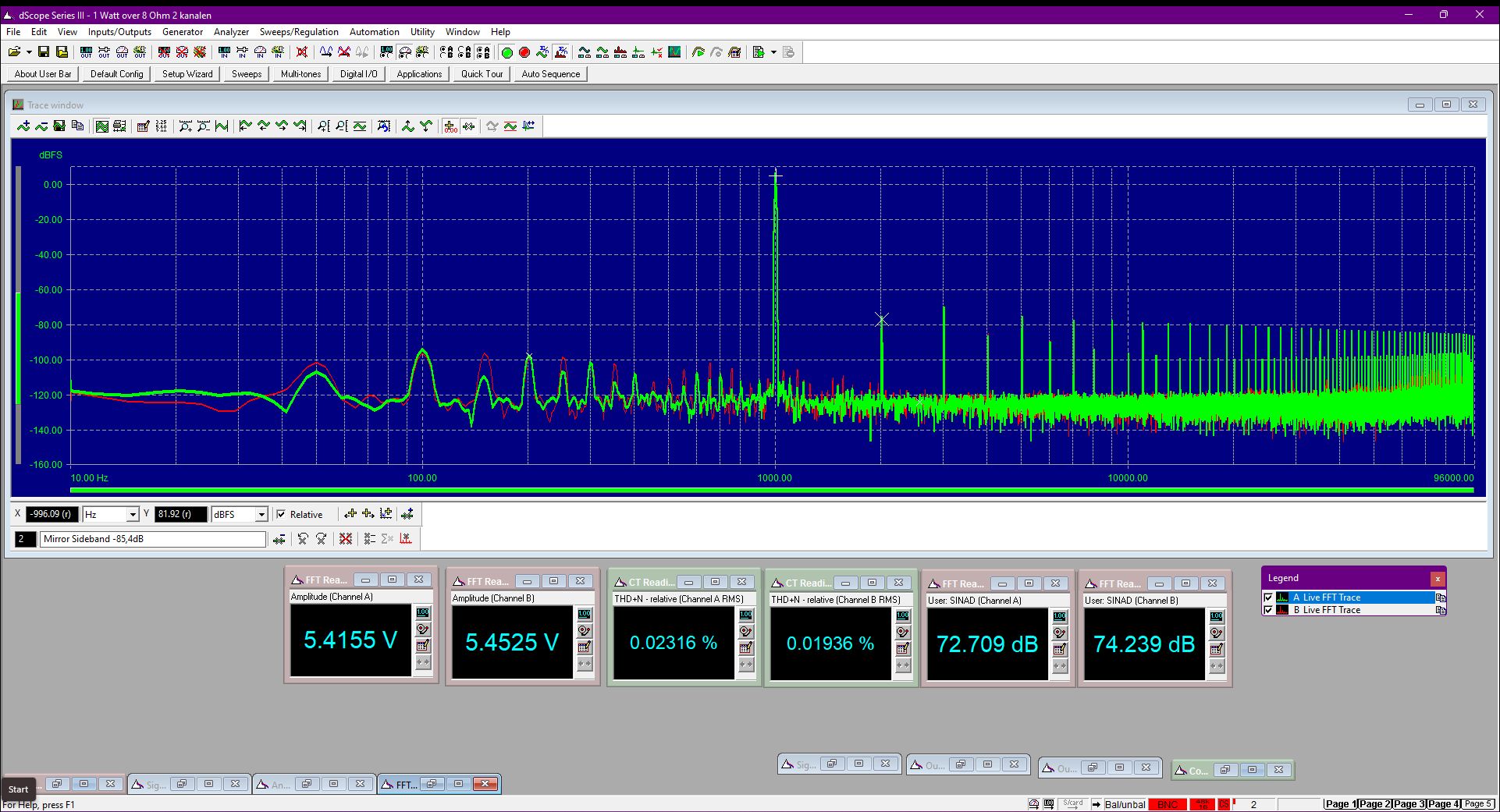

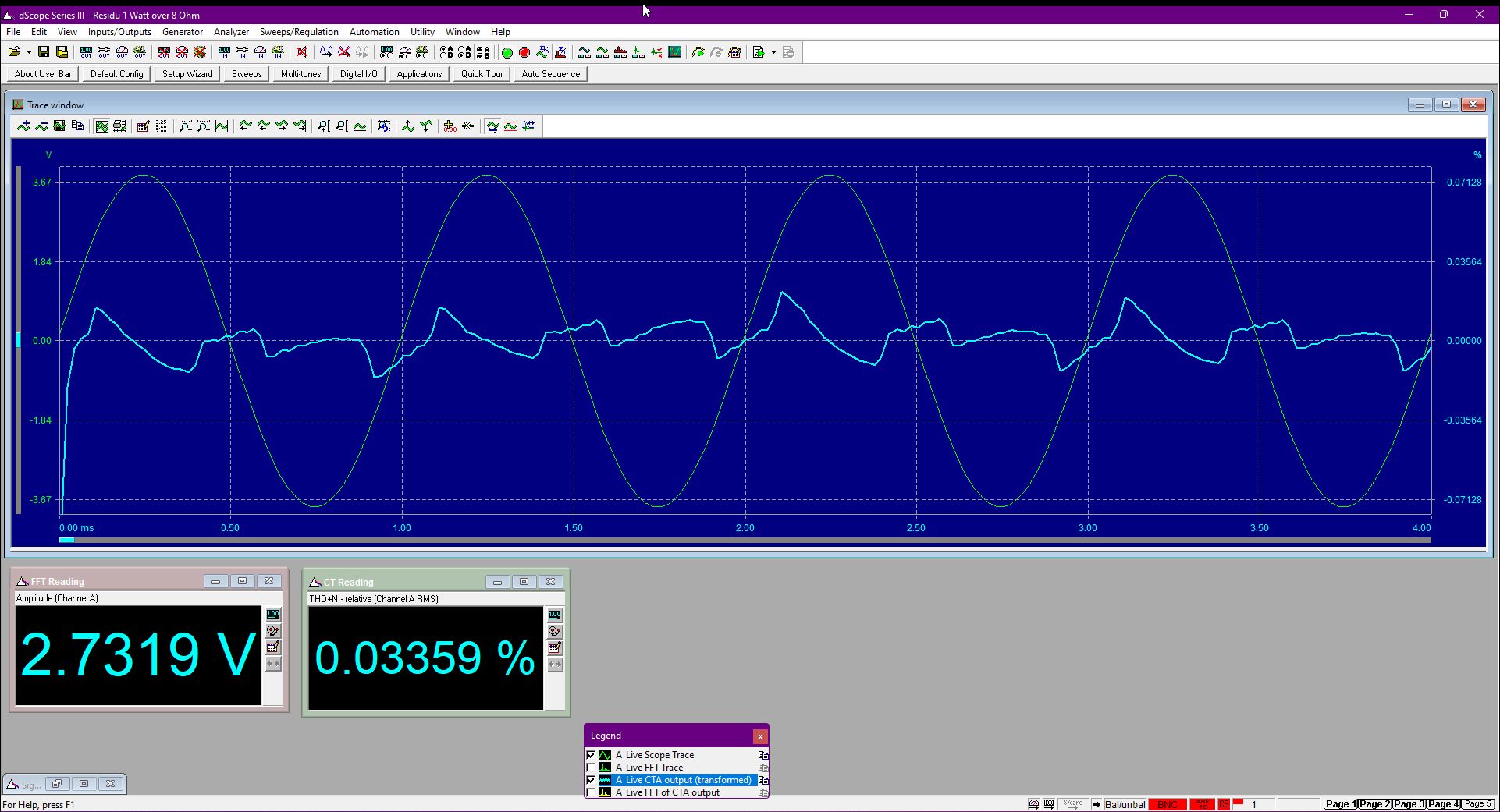

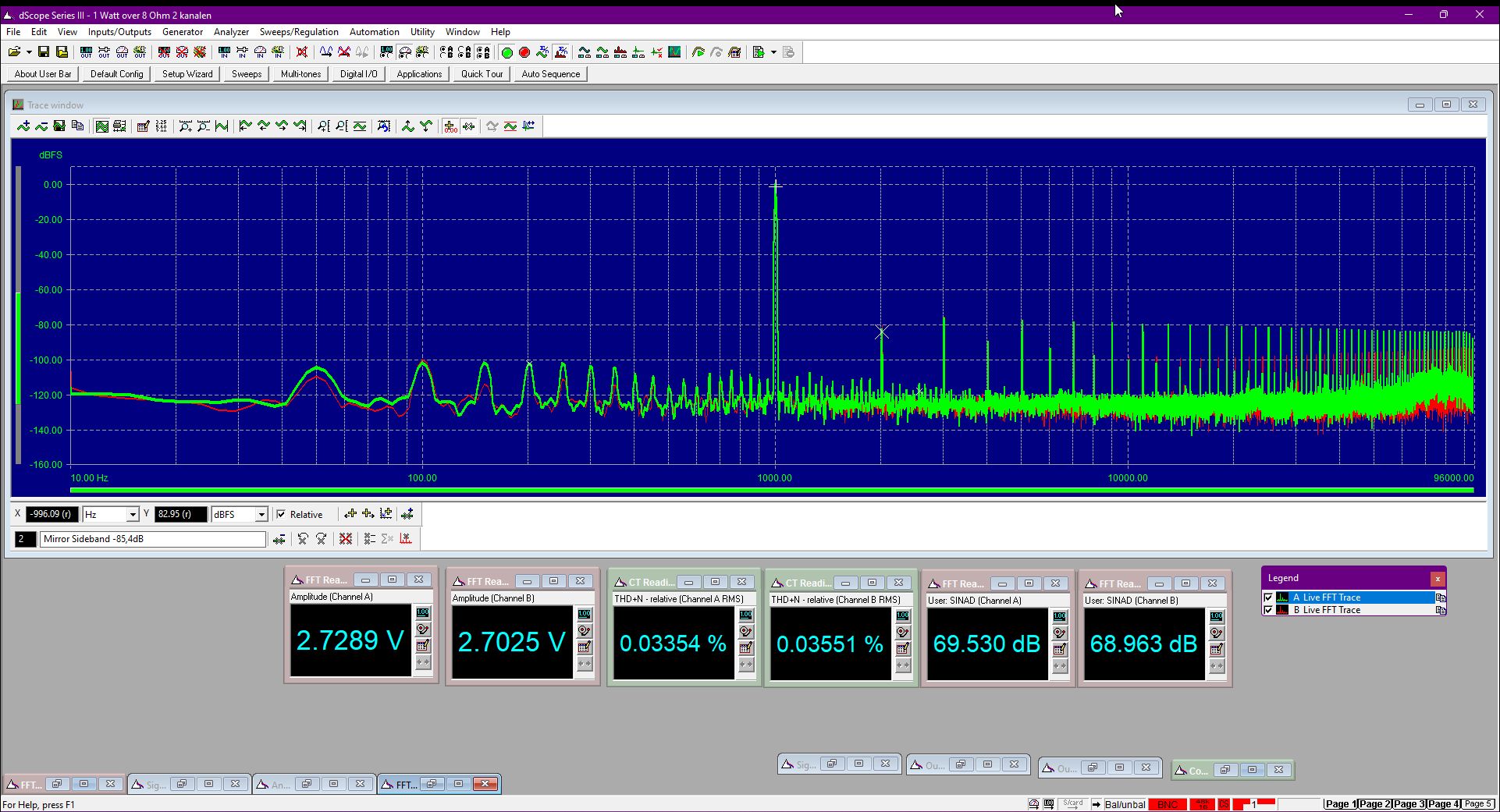

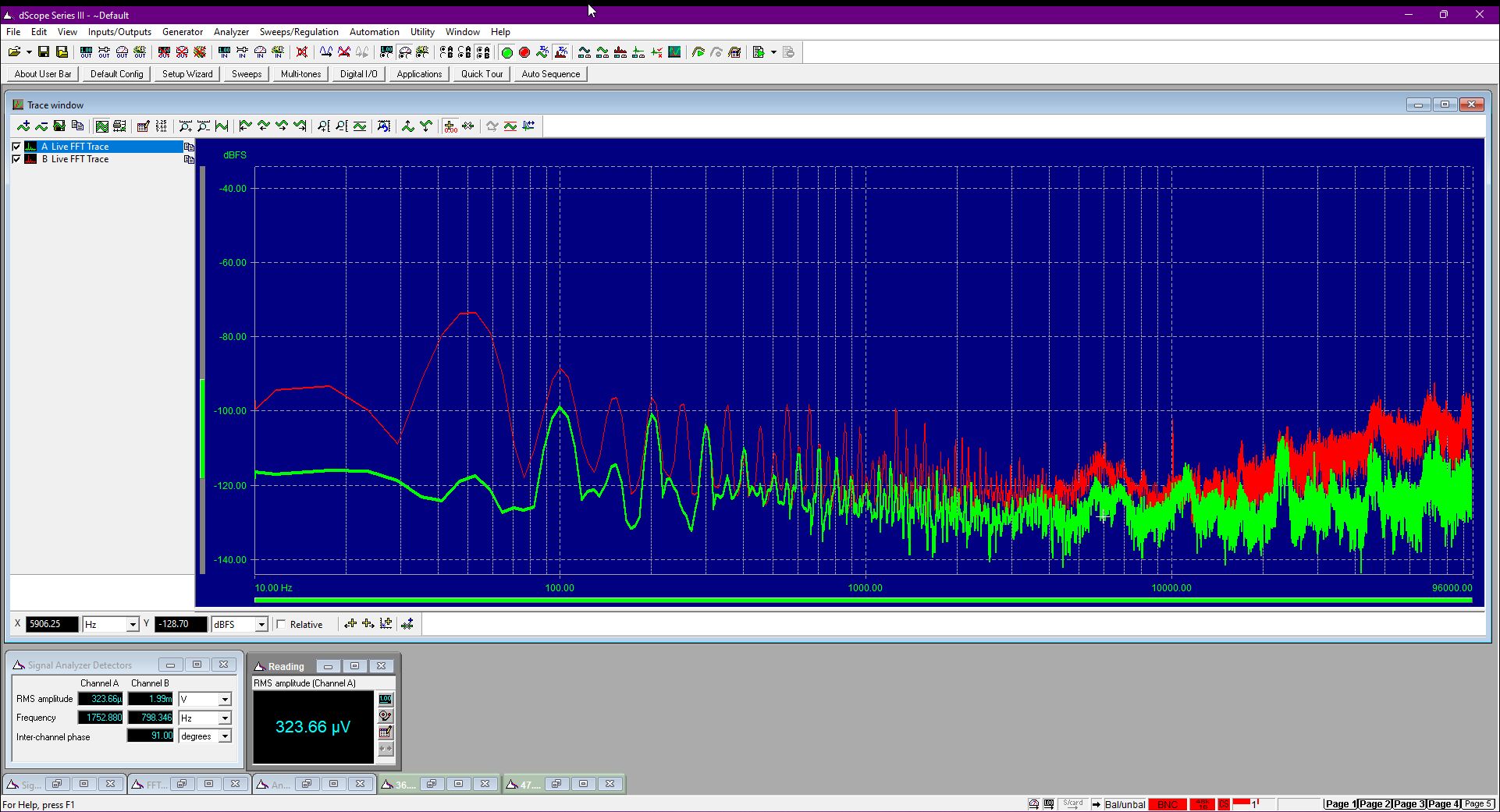

We can clearly see that it is a low feedback setup. There’s quite a bit of “grass” showing up on the dScope. Those are harmonics.

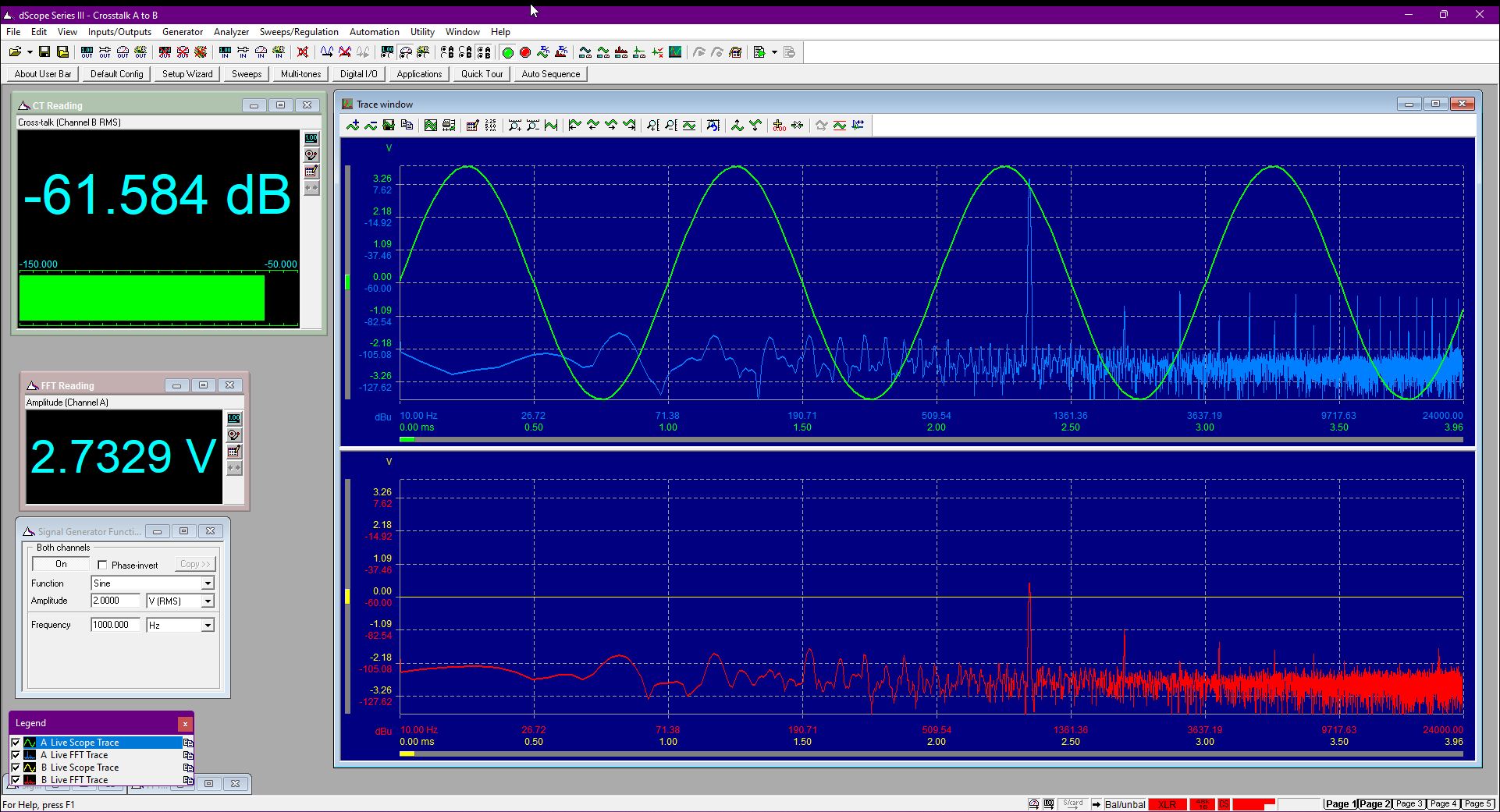

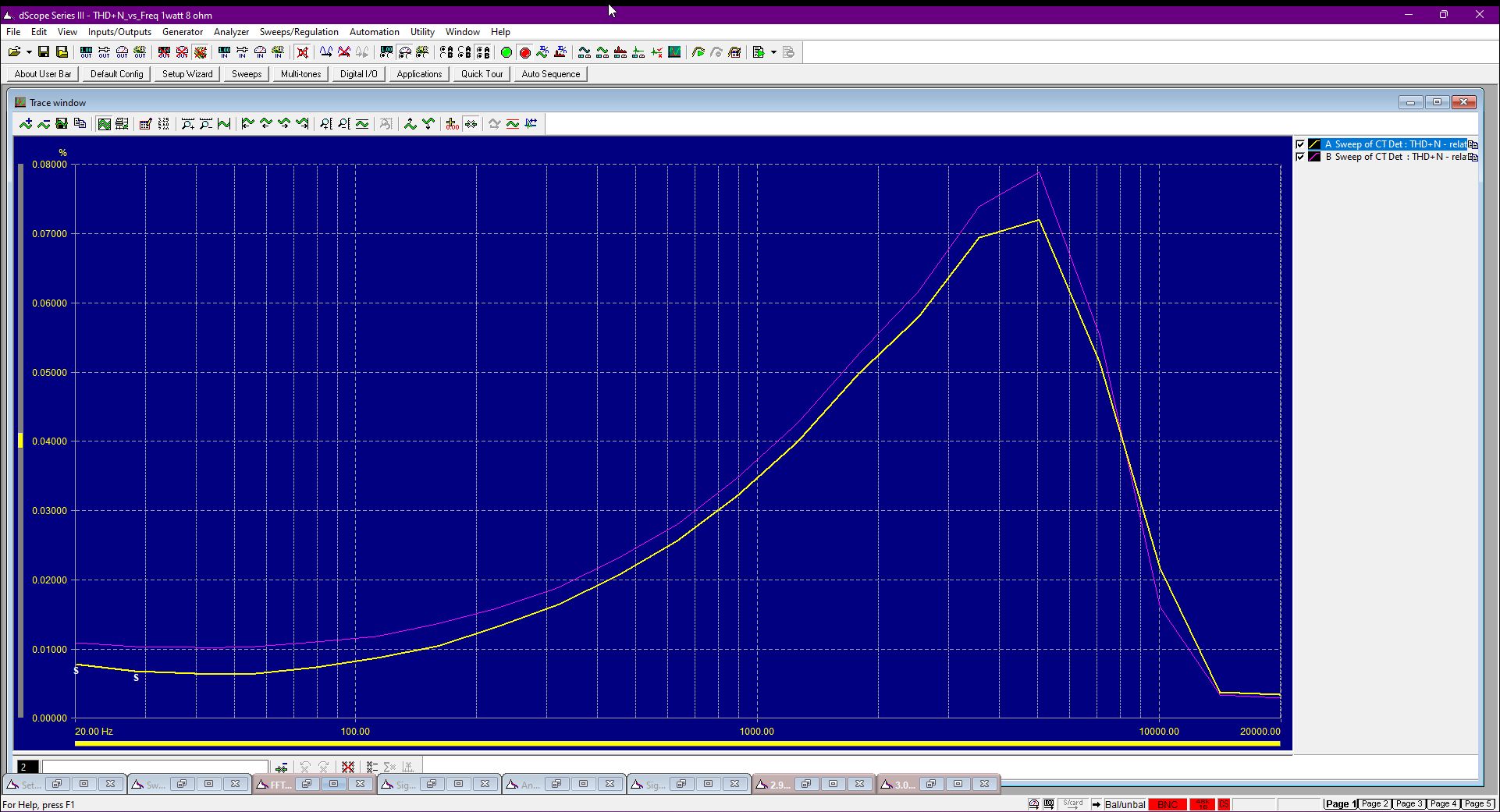

The harmonics peak around -80 dB. Of course, that also makes for inferior crosstalk and THD N measurements. After all, those depend on a low noise floor. How Kinki gets to 0.002% THD, we don’t know. Perhaps at 1 kHz, but not full spectrum. We measure 0.07% at peak and 0.01% minimum at a bandwidth of 20 Hz – 20 kHz.

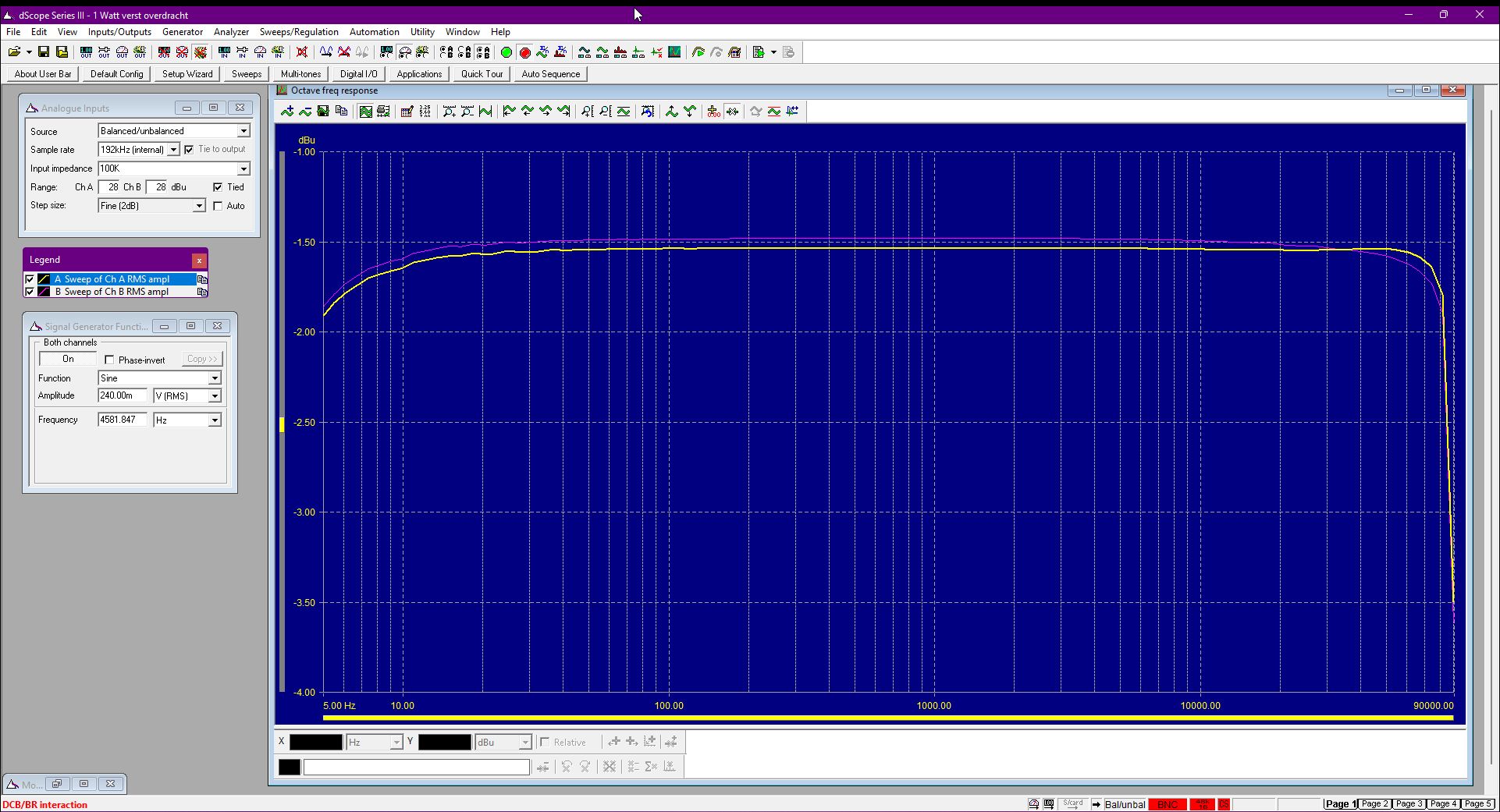

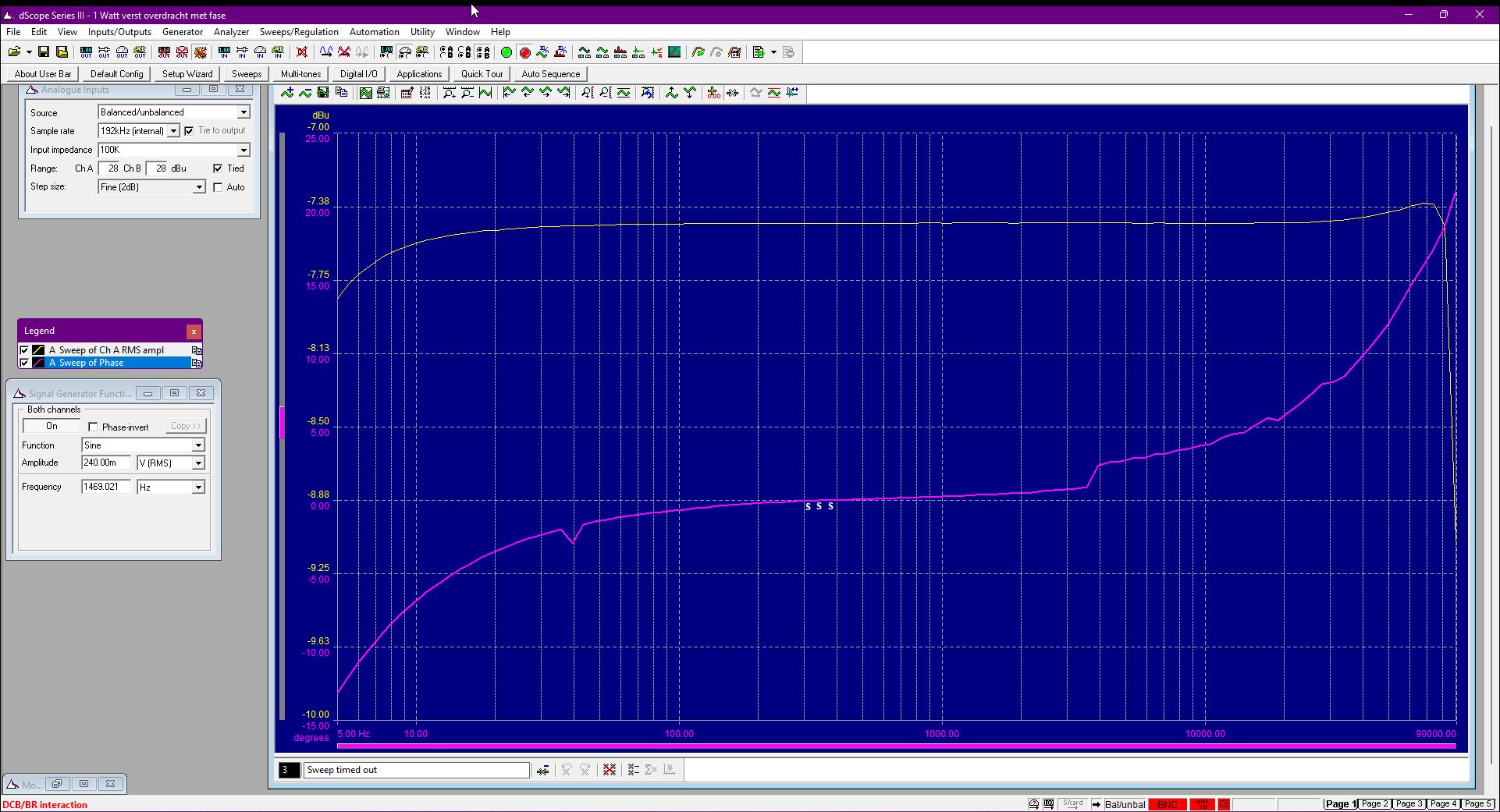

Noise from the power supply is very low and well within margin. So no problems there. Also the frequency response is very neat: it is completely straight up to over 80 kHz. We do not measure further because of the internal digital filters.
Phase is also neat: just over 5 degrees at 20 kHz. Kinki did a good job with that! This slight phase shift shows that the CHoco Sound has a decent bandwidth.
